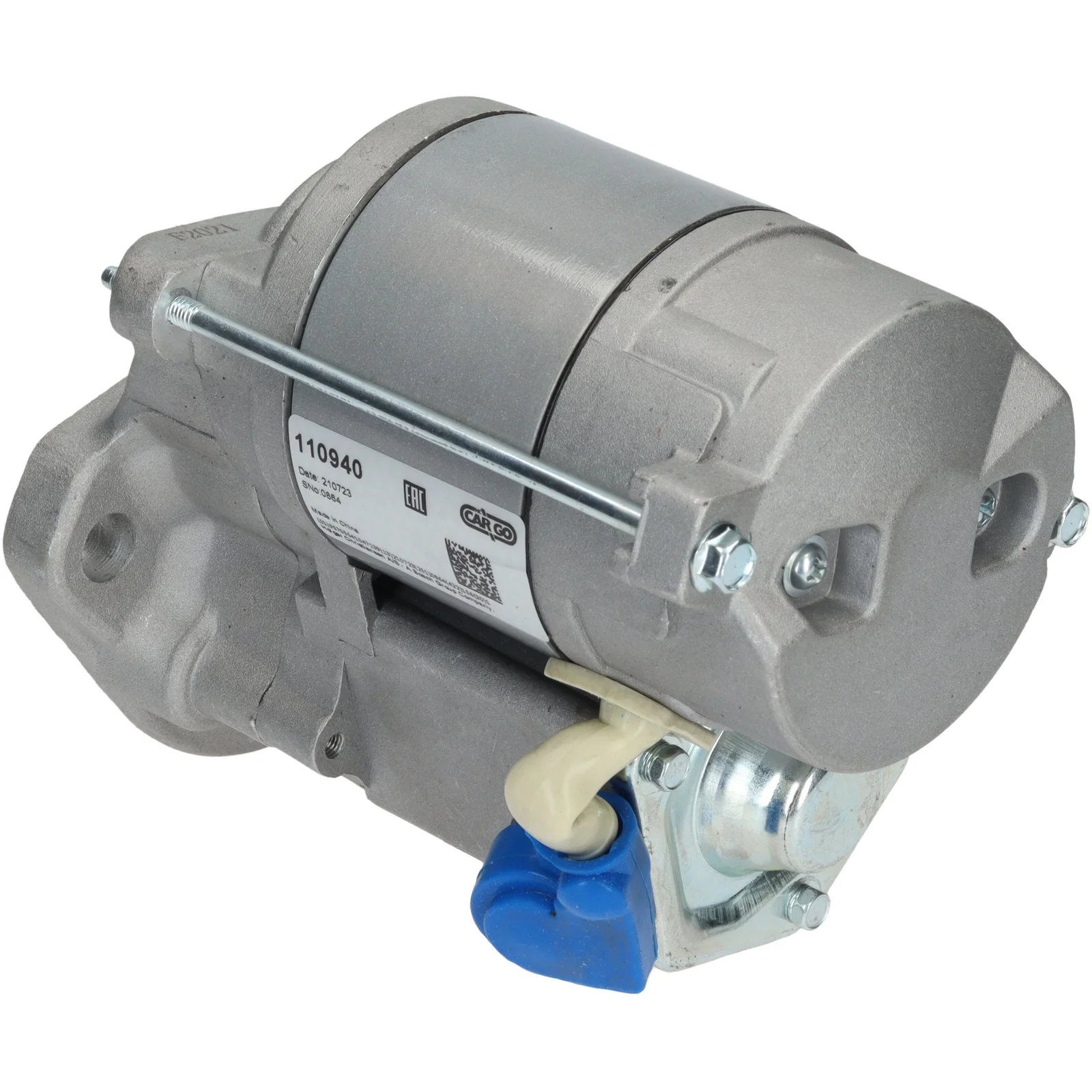

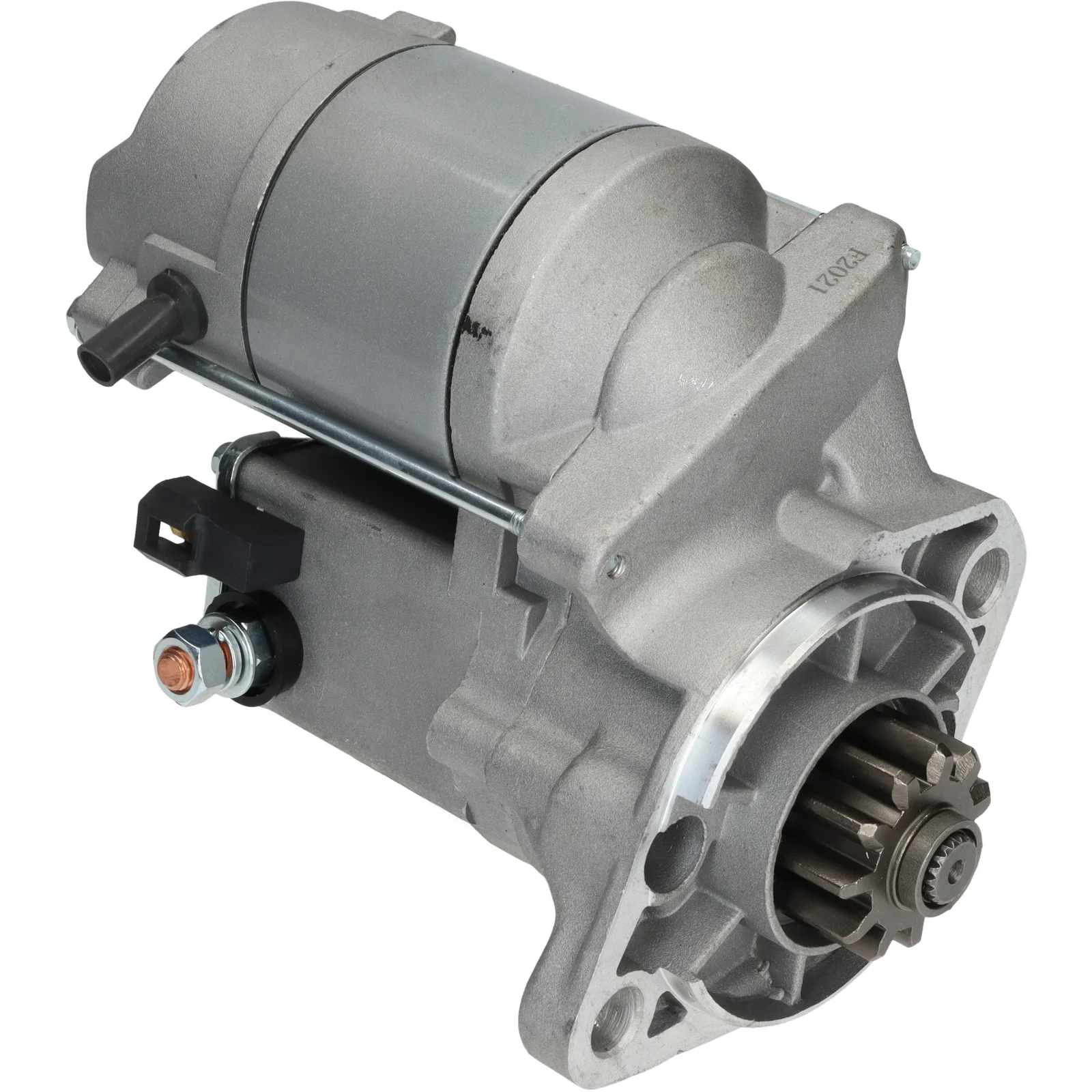

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110940

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 82.00
Drive distance: 25.00
Mount. hole 2 mm: 11.40
Mount. hole 1 mm: 11.40
Distance/ back: 123.00
Distance/ front: 31.50
Number/ teeth: 11
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 105.00
Rotation: CW
Total length in millimeters: 188.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/ mount. holes: 2 (0)

Files

  • OEM
    F032110940, js897, 15425-63016, 15601-63010, 15601-63011, 15601-63012, 15621-63010, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015, 17381-63014, 17381-63015, 19013-63011, 19013-63012, 028000-4730, 028000-6250, 70000-73490, 128000-0070, 128000-0071, 128000-1160, 128000-1161, 128000-1470, 128000-6280, 228000-1000, 228000-1001, 228000-1002, 228000-1040, 228000-1041, 228000-1070, 228000-1071, 228000-6250

  • Normalised article numbler
    cst40181, cst40295, drs3133, drs3228, dsn2085, f032110940, f042000196, f042s00196, js897, lrs01318, lrs01547, s6329denso, s6439s, snd0312, str30007, str8111, 8ea732673001, 4309, 16647, 17115, 17619, 18141n, 18142, 18142n, 18175, 18175n, 20897, 21960nd, 33870, 252089, 253036, 11040511, 0280004730, 0280006250, 683007112, 683013112, 683029112, 690544112, 690552112, 1280000070, 1280000071, 1280001160, 1280001161, 1280001470, 1280006280, 1542563016, 1560163010, 1560163011, 1560163012, 1562163010, 1562163011, 1562163012, 1562163013, 1562163014, 1562163015, 1738163014, 1738163015, 1901363011, 1901363012, 2280001000, 2280001001, 2280001002, 2280001040, 2280001041, 2280001070, 2280001071, 2280006250, 7000073490
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.00
    Drive distance: 25.00
    Mount. hole 2 mm: 11.40
    Mount. hole 1 mm: 11.40
    Distance/ back: 123.00
    Distance/ front: 31.50
    Number/ teeth: 11
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 105.00
    Rotation: CW
    Total length in millimeters: 188.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/ mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032110940, js897, 15425-63016, 15601-63010, 15601-63011, 15601-63012, 15621-63010, 15621-63011, 15621-63012, 15621-63013, 15621-63014, 15621-63015, 17381-63014, 17381-63015, 19013-63011, 19013-63012, 028000-4730, 028000-6250, 70000-73490, 128000-0070, 128000-0071, 128000-1160, 128000-1161, 128000-1470, 128000-6280, 228000-1000, 228000-1001, 228000-1002, 228000-1040, 228000-1041, 228000-1070, 228000-1071, 228000-6250

    • Normalised article numbler
      cst40181, cst40295, drs3133, drs3228, dsn2085, f032110940, f042000196, f042s00196, js897, lrs01318, lrs01547, s6329denso, s6439s, snd0312, str30007, str8111, 8ea732673001, 4309, 16647, 17115, 17619, 18141n, 18142, 18142n, 18175, 18175n, 20897, 21960nd, 33870, 252089, 253036, 11040511, 0280004730, 0280006250, 683007112, 683013112, 683029112, 690544112, 690552112, 1280000070, 1280000071, 1280001160, 1280001161, 1280001470, 1280006280, 1542563016, 1560163010, 1560163011, 1560163012, 1562163010, 1562163011, 1562163012, 1562163013, 1562163014, 1562163015, 1738163014, 1738163015, 1901363011, 1901363012, 2280001000, 2280001001, 2280001002, 2280001040, 2280001041, 2280001070, 2280001071, 2280006250, 7000073490
