HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032110961

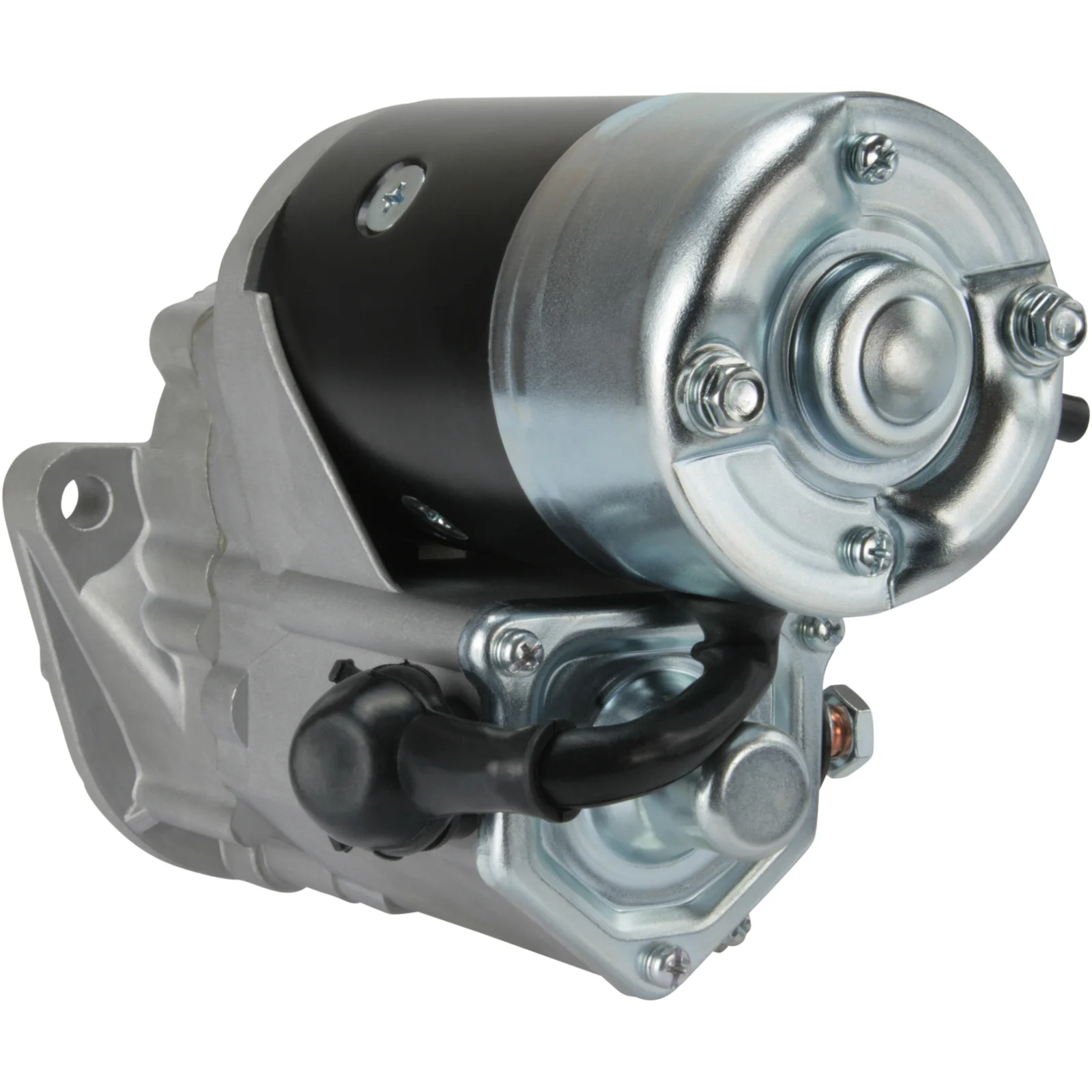

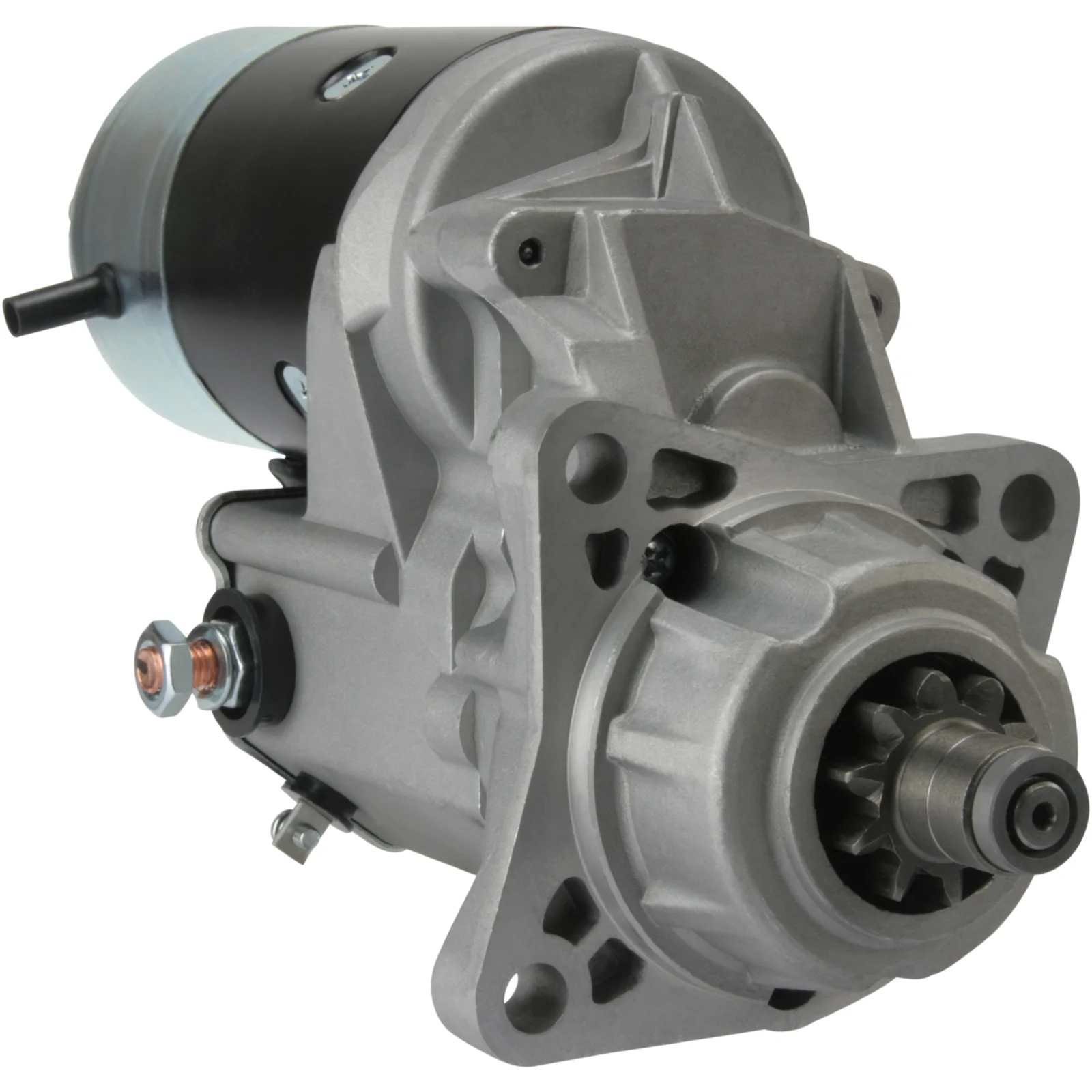

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.20
Mounting hole 2 mm: 11.20
Mounting hole 1 mm: 11.20
Distance / back: 160.00
Distance / front: 73.00
Number / teeth: 10
B+: M10
Position / 50: 25
Terminal 50: M5
Gear type: GR
Distance 2: 88.00
Distance 3: 88.00
Distance mm: 127.00
Rotation: CW
Total length mm: 292.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    D160591, F032110961, 3e0079, 7c2264, 8t4618, 8t8619, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4720, 128000-9610, 1430536, 6665654

  • Normalised article numbler
    cst40134, d160591, drs3295, dsn2114, f032110961, f042000085, f042s00085, lrs01512, s6330s, str30053, str6093, 3e0079, 7c2264, 8ea732849001, 8t4618, 8t8619, 4318, 17198n, 17399, 17399n, 17458n, 17589, 17892n, 20906, 22335nd, 103922, 252470, 1430536, 6665654, 672011102, 682011102, 1280004080, 1280004081, 1280004082, 1280004083, 1280004720, 1280009610
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.20
    Mounting hole 2 mm: 11.20
    Mounting hole 1 mm: 11.20
    Distance / back: 160.00
    Distance / front: 73.00
    Number / teeth: 10
    B+: M10
    Position / 50: 25
    Terminal 50: M5
    Gear type: GR
    Distance 2: 88.00
    Distance 3: 88.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 292.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      D160591, F032110961, 3e0079, 7c2264, 8t4618, 8t8619, 128000-4080, 128000-4081, 128000-4082, 128000-4083, 128000-4720, 128000-9610, 1430536, 6665654

    • Normalised article numbler
      cst40134, d160591, drs3295, dsn2114, f032110961, f042000085, f042s00085, lrs01512, s6330s, str30053, str6093, 3e0079, 7c2264, 8ea732849001, 8t4618, 8t8619, 4318, 17198n, 17399, 17399n, 17458n, 17589, 17892n, 20906, 22335nd, 103922, 252470, 1430536, 6665654, 672011102, 682011102, 1280004080, 1280004081, 1280004082, 1280004083, 1280004720, 1280009610
