Article no.: F032111005

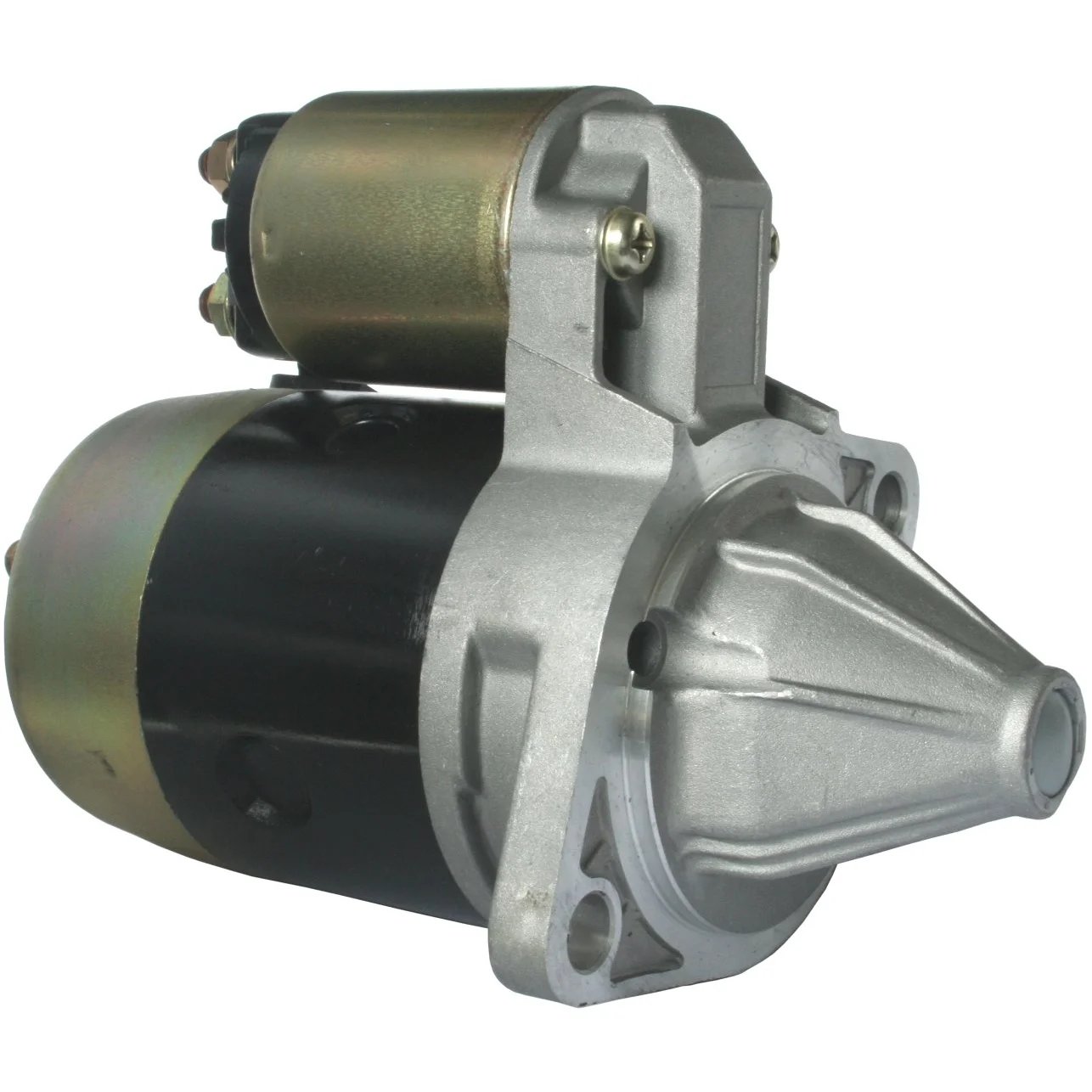

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 0.8
Mounting flange: 74.00
Drive distance: 16.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/rear: 136.50
Distance/front: 53.00
Number/teeth: 8
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: DD
Distance mm: 104.50
Rotation: CW
Total length mm: 190.00
Drive type: Steel
Product information: Reman
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    F032111005, M003T30981, m3t30981, 4780-18-400, 4780-18-400A

  • Normalised article numbler
    cst35157, drs0201, f032111005, lrs01344, m003t30981, m3t30981, 8ea732850001, 4319, 16798, 16798n, 20907, 22088mi, 103951, 252154, 478018400, 478018400a, 624001082
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 74.00
    Drive distance: 16.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/rear: 136.50
    Distance/front: 53.00
    Number/teeth: 8
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD
    Distance mm: 104.50
    Rotation: CW
    Total length mm: 190.00
    Drive type: Steel
    Product information: Reman
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111005, M003T30981, m3t30981, 4780-18-400, 4780-18-400A

    • Normalised article numbler
      cst35157, drs0201, f032111005, lrs01344, m003t30981, m3t30981, 8ea732850001, 4319, 16798, 16798n, 20907, 22088mi, 103951, 252154, 478018400, 478018400a, 624001082
