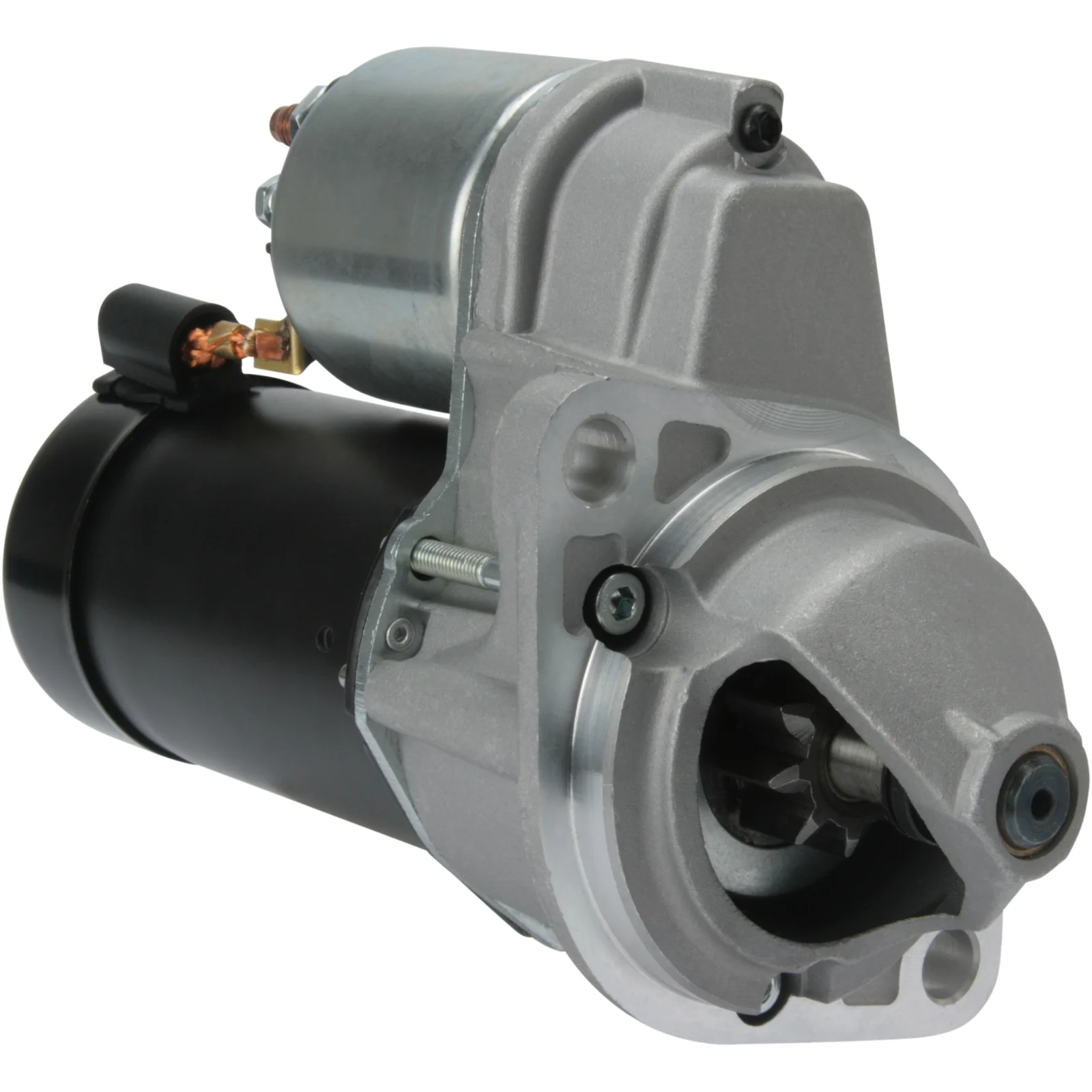

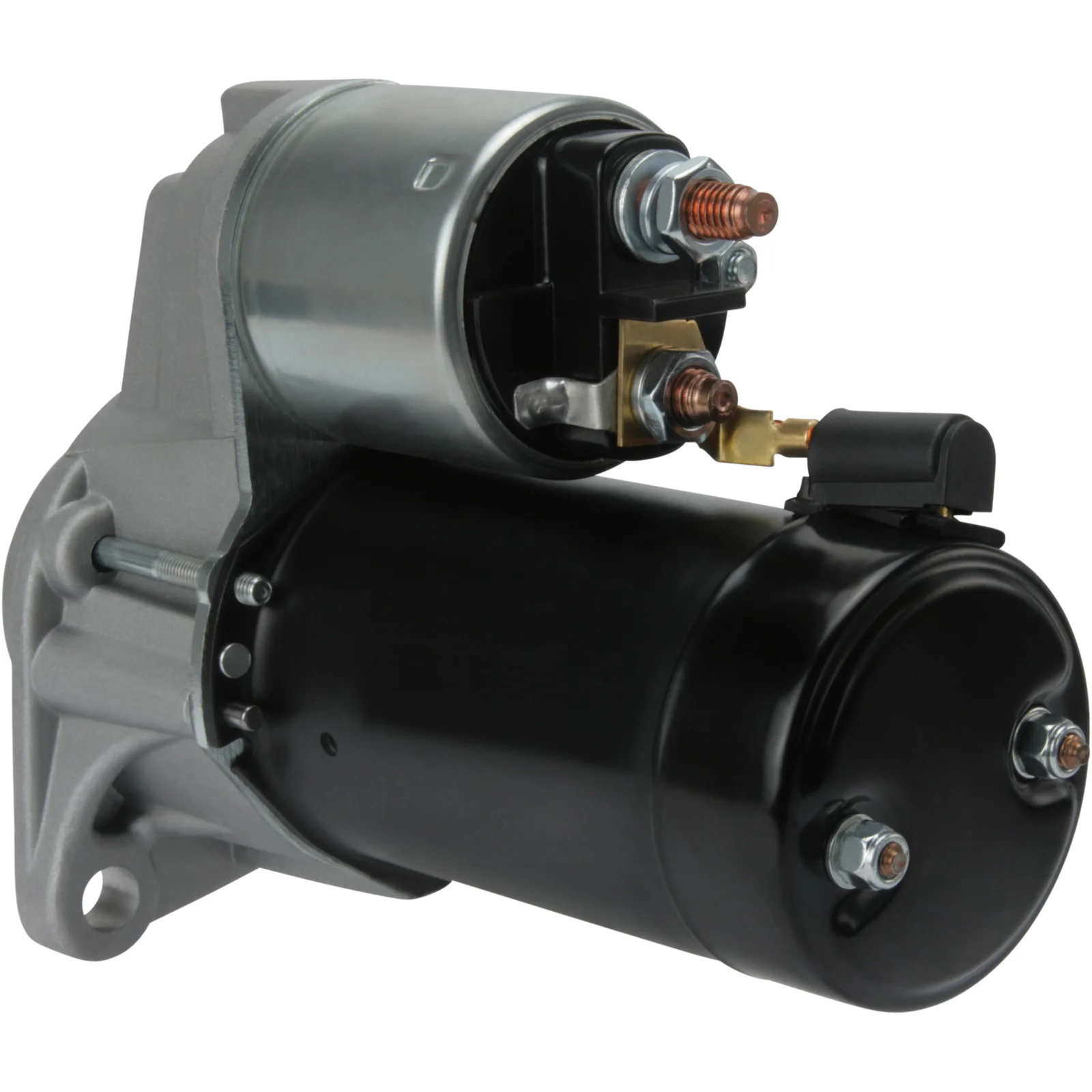

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111015

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.1
Mount. flange: 76.20
Drive distance: 15.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance / back: 162.00
Distance / front: 47.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance mm: 105.00
Rotation: CW
Total length mm: 209.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 2 (0)

Files

  • OEM
    AZD2127, cs807, d6ra22, d6ra52, F032111015, 11.131.928, 1986S00656, 0001107033, 0001107051, 0001107062, 0001107085, 0001108129, 12850029, 12851306, 58101330, 58401330, 0058401940, 58401940, 63521070

  • Normalised article numbler
    azd2127, cs807, cst10171, cst15291, d6ra22, d6ra52, drs8110, drs9040, f032111015, is1279, lrs01190, ms455, nd140, s0312, s3045, sbo0279, sr5034n, str33001, 8ea015642071, 8ea732894001, 1986s00656, 4141, 10807, 19668, 19669, 19669n, 19670, 19670n, 105586, 201028, 220087, 220087a, 251225, 455634, 594085, 726804, 838013, 0001107033, 0001107051, 0001107062, 0001107085, 0001108129, 8019040, 11019040, 11131928, 12850029, 12851306, 58101330, 58401330, 0058401940, 58401940, 063521070, 63521070, 688012092, 688013092, 0986019040, 063521070620
  • Description
    Voltage: 12
    kW: 1.1
    Mount. flange: 76.20
    Drive distance: 15.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance / back: 162.00
    Distance / front: 47.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance mm: 105.00
    Rotation: CW
    Total length mm: 209.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZD2127, cs807, d6ra22, d6ra52, F032111015, 11.131.928, 1986S00656, 0001107033, 0001107051, 0001107062, 0001107085, 0001108129, 12850029, 12851306, 58101330, 58401330, 0058401940, 58401940, 63521070

    • Normalised article numbler
      azd2127, cs807, cst10171, cst15291, d6ra22, d6ra52, drs8110, drs9040, f032111015, is1279, lrs01190, ms455, nd140, s0312, s3045, sbo0279, sr5034n, str33001, 8ea015642071, 8ea732894001, 1986s00656, 4141, 10807, 19668, 19669, 19669n, 19670, 19670n, 105586, 201028, 220087, 220087a, 251225, 455634, 594085, 726804, 838013, 0001107033, 0001107051, 0001107062, 0001107085, 0001108129, 8019040, 11019040, 11131928, 12850029, 12851306, 58101330, 58401330, 0058401940, 58401940, 063521070, 63521070, 688012092, 688013092, 0986019040, 063521070620
