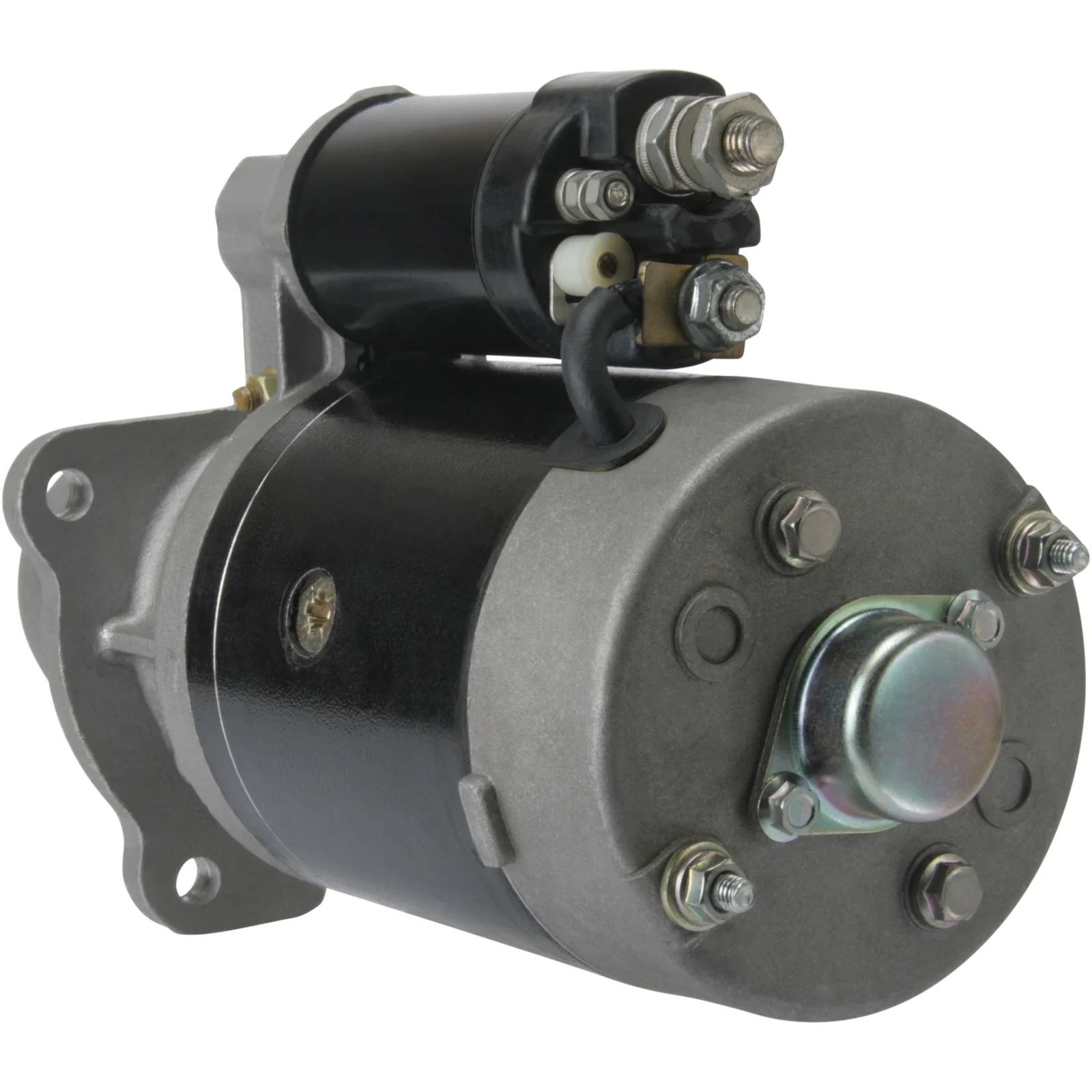

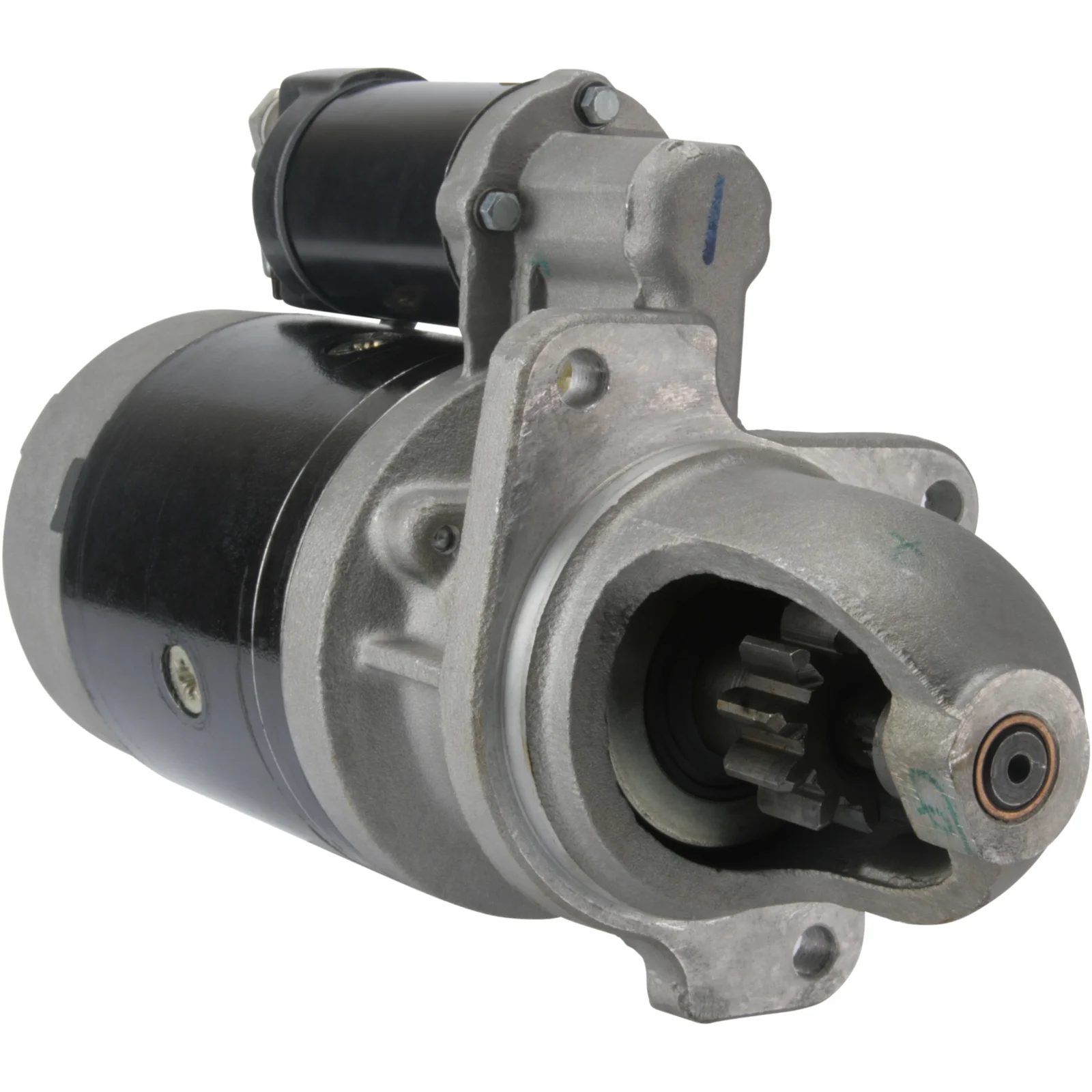

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111049

HC-Cargo Starter motor

Technical info:

Voltage: 12, No./teeth: 10, Rotation: CW, Mounting flange: 89.00

Description

HC-Cargo Starter motor

Voltage: 12
Mounting flange: 89.00
Drive distance: 46.00
Mounting hole 3 mm: 10.50
Mounting hole 2 mm: 10.50
Mounting hole 1 mm: 10.50
Distance/back: 216.50
Distance/front: 87.00
Number of teeth: 10
B+: M8
Position/15a: 40
Terminal 15a: M5
Position/50: 10
Terminal 50: M5
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance mm: 90.00
Rotation: CW
Total length mm: 304.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 10MT.
Number of mounting holes: 3 (0)

Files

  • OEM
    F032111049, 111049, 1109439, 1998576

  • Normalised article numbler
    f032111049, str80028, ts1366, 8ea732857001, 4404, 6713, 111049, 1109439, 1998576, 91014274n, 640019103
  • Description
    HC-Cargo Starter motor

    Voltage: 12
    Mounting flange: 89.00
    Drive distance: 46.00
    Mounting hole 3 mm: 10.50
    Mounting hole 2 mm: 10.50
    Mounting hole 1 mm: 10.50
    Distance/back: 216.50
    Distance/front: 87.00
    Number of teeth: 10
    B+: M8
    Position/15a: 40
    Terminal 15a: M5
    Position/50: 10
    Terminal 50: M5
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance mm: 90.00
    Rotation: CW
    Total length mm: 304.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 10MT.
    Number of mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111049, 111049, 1109439, 1998576

    • Normalised article numbler
      f032111049, str80028, ts1366, 8ea732857001, 4404, 6713, 111049, 1109439, 1998576, 91014274n, 640019103
