HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111061

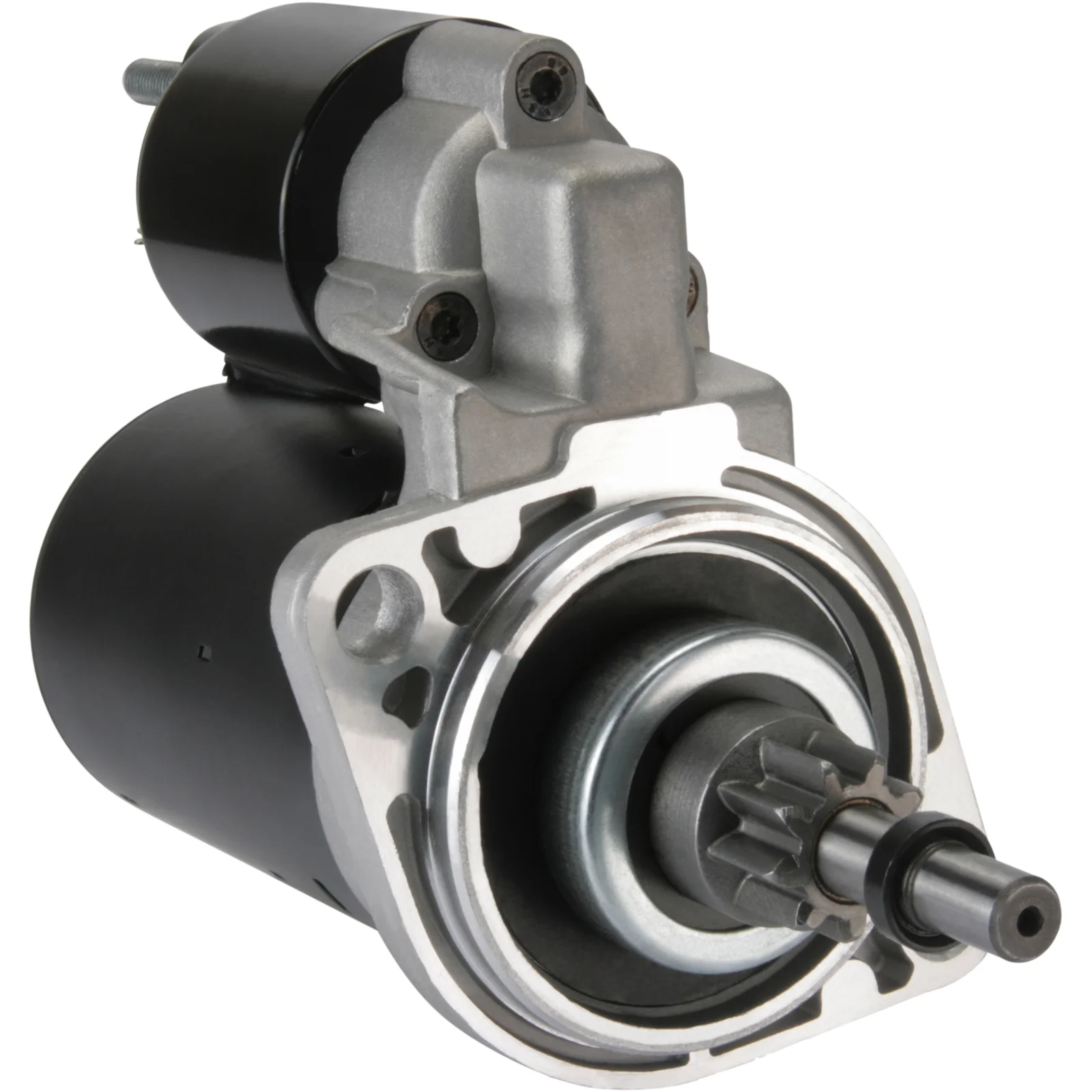

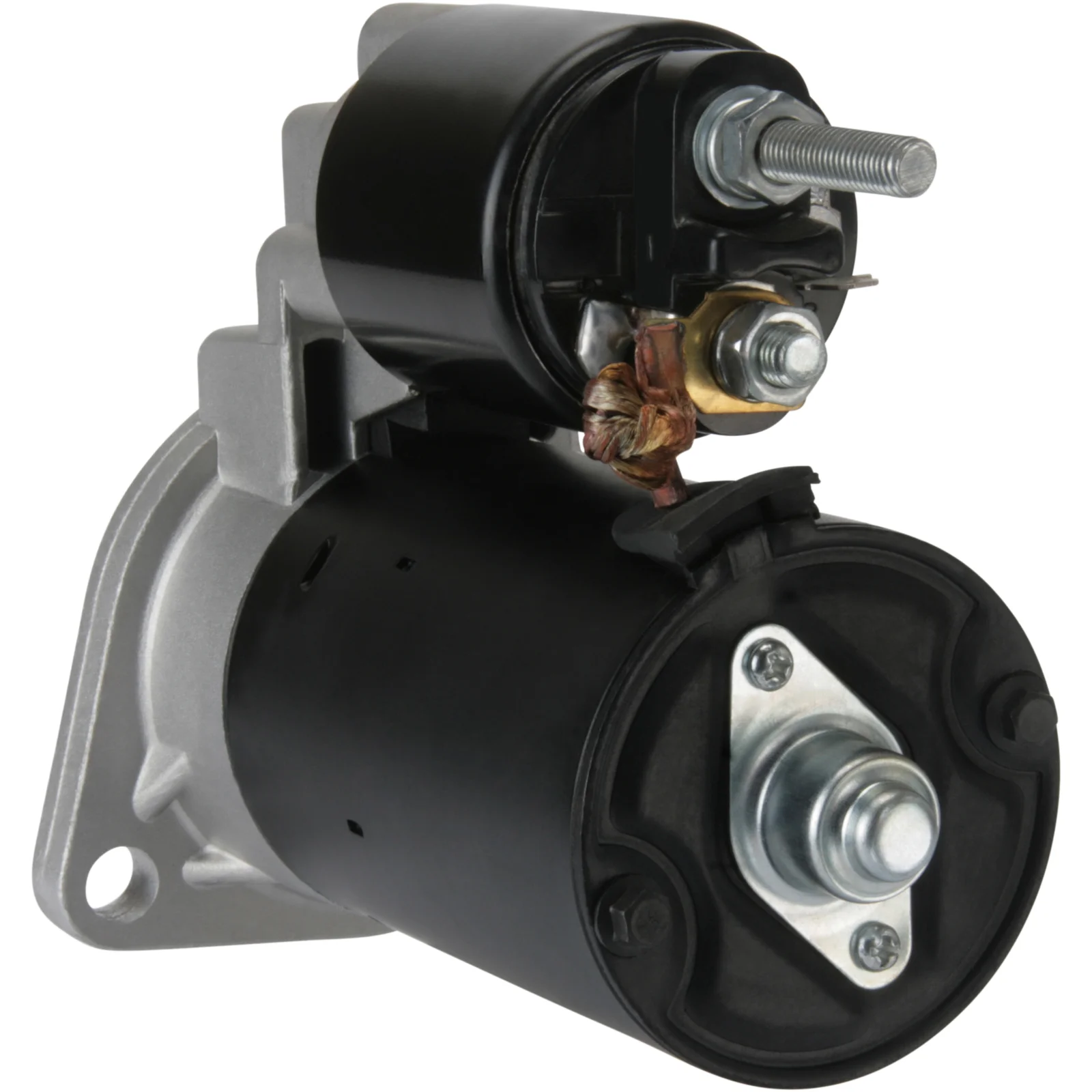

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.8, No./teeth: 9, Rotation: CCW

Description

Voltage: 12
kW: 0.8
Mounting flange: 76.00
Drive distance: 44.50
Mounting hole 2 mm: 11.80
Mounting hole 1 mm: 10.50
Distance/back: 143.00
Distance/front: 78.00
Number/teeth: 9
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: DD/GR
Distance mm: 105.00
Rotation: CCW
Total length mm: 230.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Bushing D.E. (clutch house): HC-CARGO 140008.
Number/mounting holes: 2 (0)

Files

  • OEM
    cs298, F032111061, 0001211251, 0001211252, 0001211253, 0001211254, 1516725R, 091911023a, 091911023ax, 091911023b, 091911023bx

  • Normalised article numbler
    cs298, drs0470, f032111061, lrs00559, qs1476, sr19x, str50053, 8ea726057001, 1141, 3639, 10298, 11397, 16722r, 21359bo, 21449bo, 103391, 220356, 220356a, 250457, 433335, 0001211251, 0001211252, 0001211253, 0001211254, 1516725r, 4110470, 8010470, 11010470, 66925378, 091911023a, 091911023ax, 091911023b, 091911023bx, 311003092, 943221670, 943251670, 0986010470, 0986010477, 943251670010, 944280104700
  • Description
    Voltage: 12
    kW: 0.8
    Mounting flange: 76.00
    Drive distance: 44.50
    Mounting hole 2 mm: 11.80
    Mounting hole 1 mm: 10.50
    Distance/back: 143.00
    Distance/front: 78.00
    Number/teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance mm: 105.00
    Rotation: CCW
    Total length mm: 230.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Bushing D.E. (clutch house): HC-CARGO 140008.
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs298, F032111061, 0001211251, 0001211252, 0001211253, 0001211254, 1516725R, 091911023a, 091911023ax, 091911023b, 091911023bx

    • Normalised article numbler
      cs298, drs0470, f032111061, lrs00559, qs1476, sr19x, str50053, 8ea726057001, 1141, 3639, 10298, 11397, 16722r, 21359bo, 21449bo, 103391, 220356, 220356a, 250457, 433335, 0001211251, 0001211252, 0001211253, 0001211254, 1516725r, 4110470, 8010470, 11010470, 66925378, 091911023a, 091911023ax, 091911023b, 091911023bx, 311003092, 943221670, 943251670, 0986010470, 0986010477, 943251670010, 944280104700
