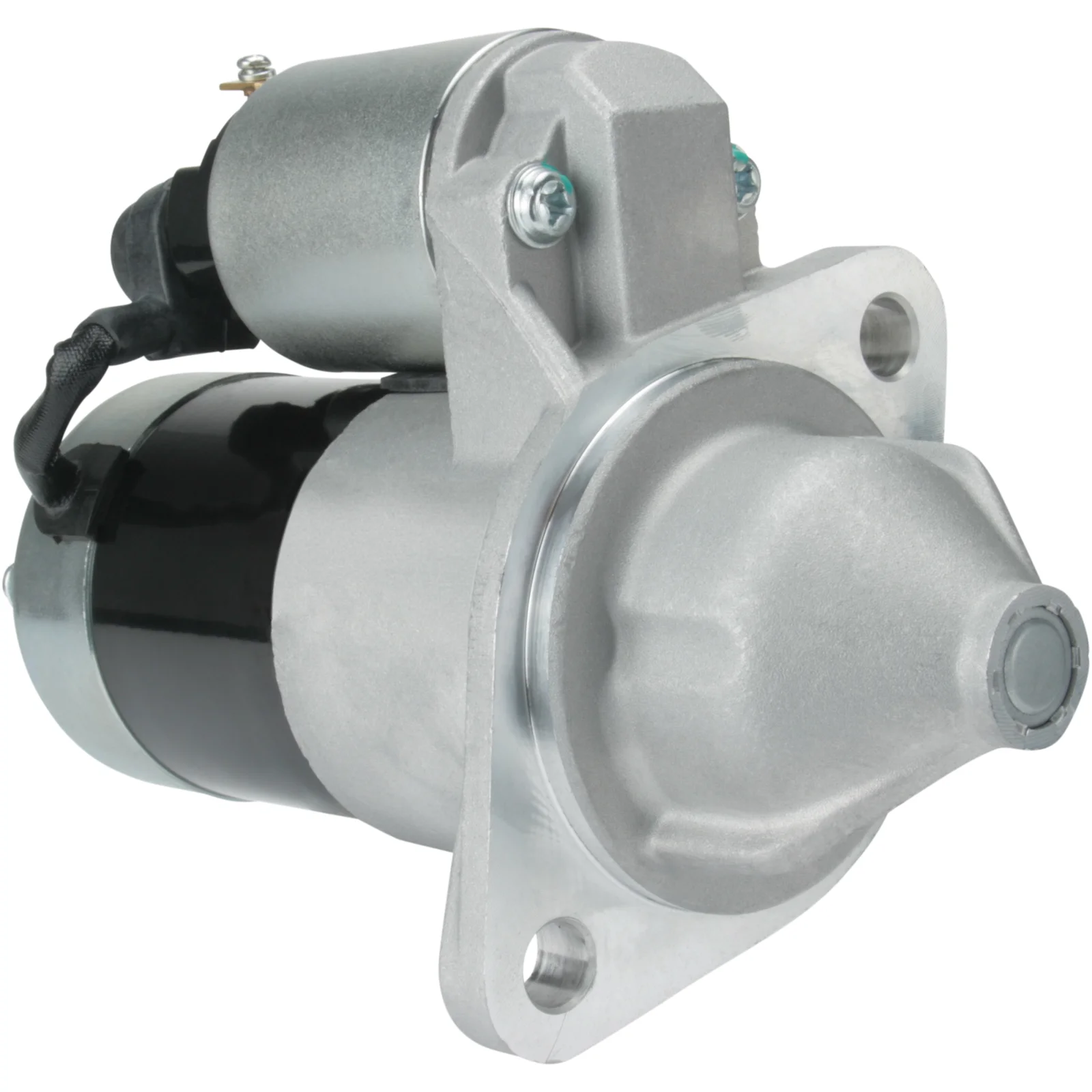

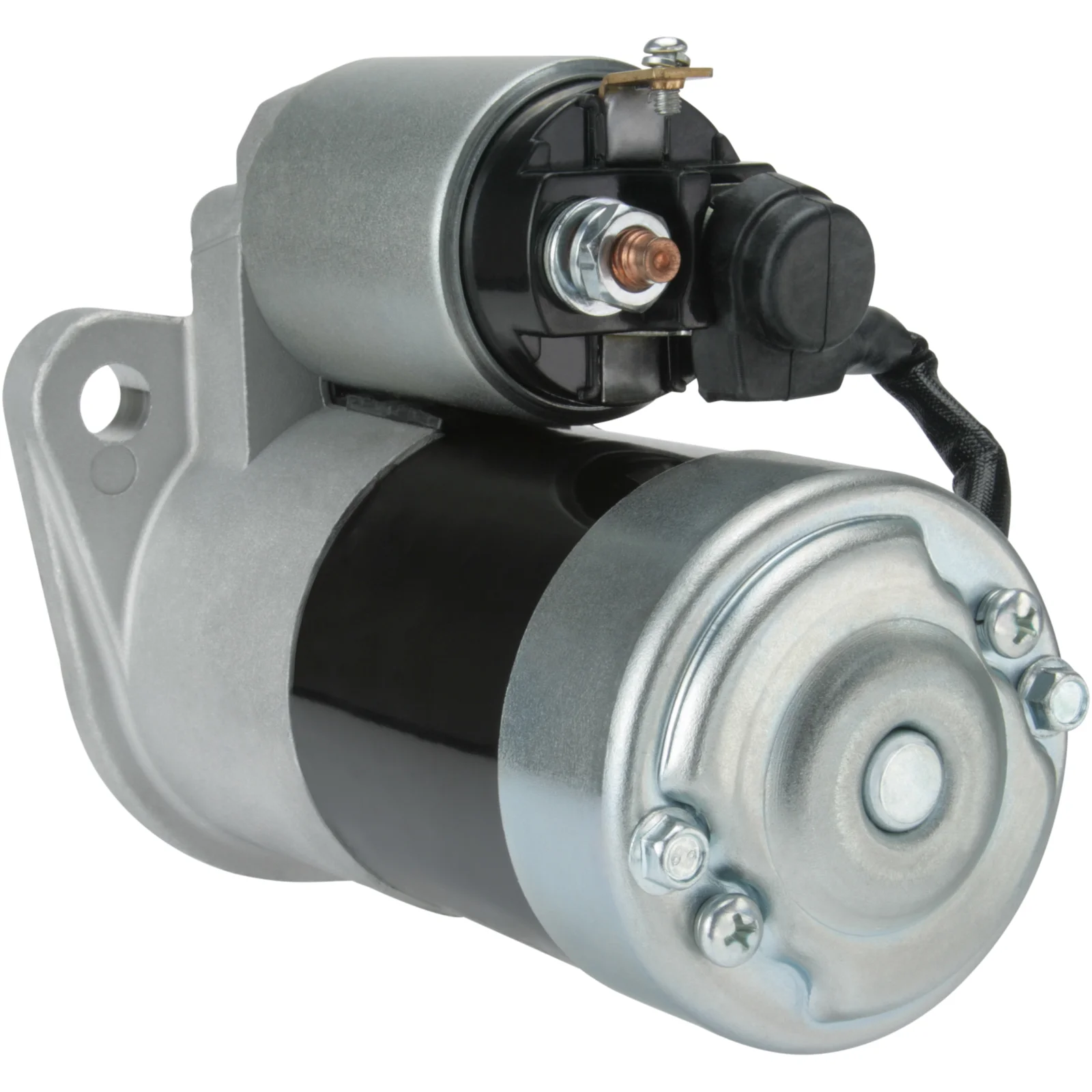

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111098

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mounting flange: 80.00
Drive distance: 21.50
Mounting hole 2 mm: 12.00
Mounting hole 1 mm: 12.00
Distance/rear: 146.50
Distance/front: 55.50
Number of teeth: 9
B+: M8
Position/50: 60
Terminal 50: M4
Gear type: GR
Distance in millimeters: 109.00
Rotation: CW
Total length in millimeters: 206.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number of mounting holes: 2 (0)

Files

  • OEM
    F032111098, js778, s114-385, 5811001920, 5811001921

  • Normalised article numbler
    cst20170, drs3327, f032111098, js778, lrs01153, s114385, s2080s, str23021, 8ea732663001, 4298, 18056, 20778, 21855hi, 103876, 251131, 11040769, 91251065, 643001092, 5811001920, 5811001921
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 80.00
    Drive distance: 21.50
    Mounting hole 2 mm: 12.00
    Mounting hole 1 mm: 12.00
    Distance/rear: 146.50
    Distance/front: 55.50
    Number of teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: M4
    Gear type: GR
    Distance in millimeters: 109.00
    Rotation: CW
    Total length in millimeters: 206.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111098, js778, s114-385, 5811001920, 5811001921

    • Normalised article numbler
      cst20170, drs3327, f032111098, js778, lrs01153, s114385, s2080s, str23021, 8ea732663001, 4298, 18056, 20778, 21855hi, 103876, 251131, 11040769, 91251065, 643001092, 5811001920, 5811001921
