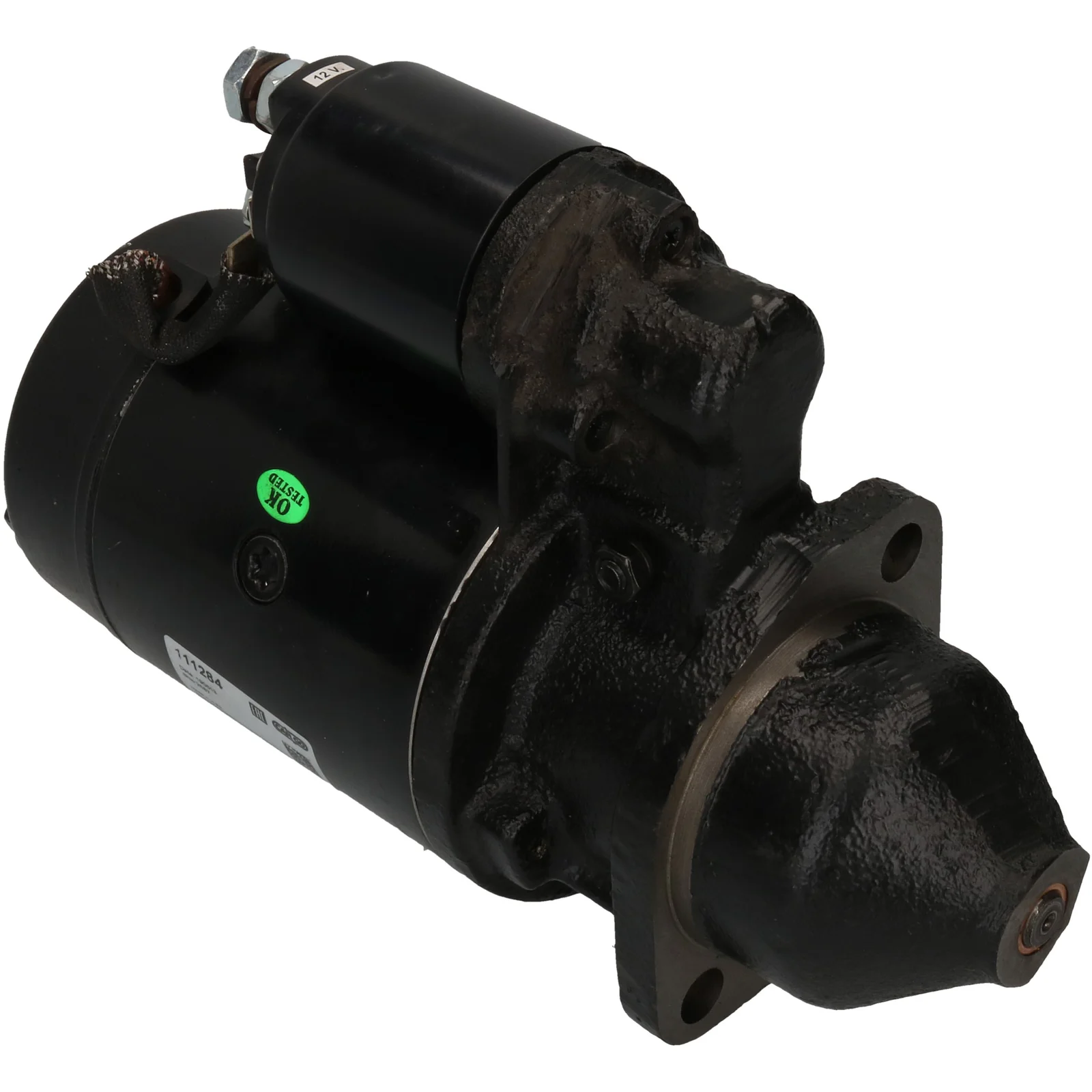

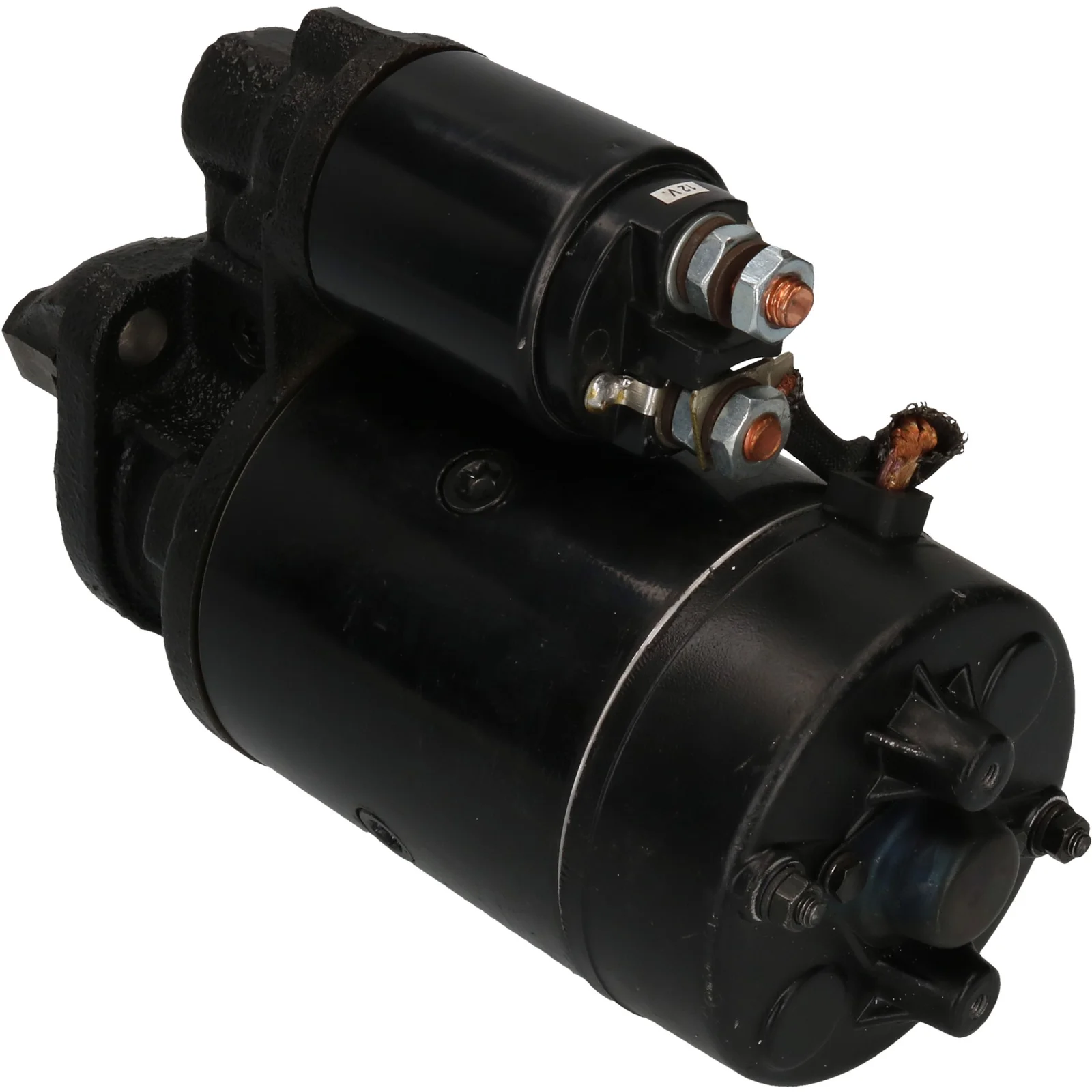

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111284

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance/back: 228.00
Distance/front: 65.00
Number/teeth: 11
B+: M10
Position/50: 15
Terminal 50: M4
Gear type: DD
Dist. mm: 105.50
Rotation: CW
Total length mm: 296.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    F032111284, 0001362035, 12153835, 63207138, 63217106, 63217163, 207090002, 40800090007, 063207138000, 063217163010, 605720100084

  • Normalised article numbler
    drs3325, f032111284, is0521, lrs02050, ms167, ms737, s0754s, s9052, 8ea737245001, 4453, 33371, 251444, 0001362035, 12153835, 63207138, 63217106, 63217163, 207090002, 600015112, 943217163, 40800090007, 063207138000, 063217163010, 605720100084
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance/back: 228.00
    Distance/front: 65.00
    Number/teeth: 11
    B+: M10
    Position/50: 15
    Terminal 50: M4
    Gear type: DD
    Dist. mm: 105.50
    Rotation: CW
    Total length mm: 296.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111284, 0001362035, 12153835, 63207138, 63217106, 63217163, 207090002, 40800090007, 063207138000, 063217163010, 605720100084

    • Normalised article numbler
      drs3325, f032111284, is0521, lrs02050, ms167, ms737, s0754s, s9052, 8ea737245001, 4453, 33371, 251444, 0001362035, 12153835, 63207138, 63217106, 63217163, 207090002, 600015112, 943217163, 40800090007, 063207138000, 063217163010, 605720100084
