HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111346

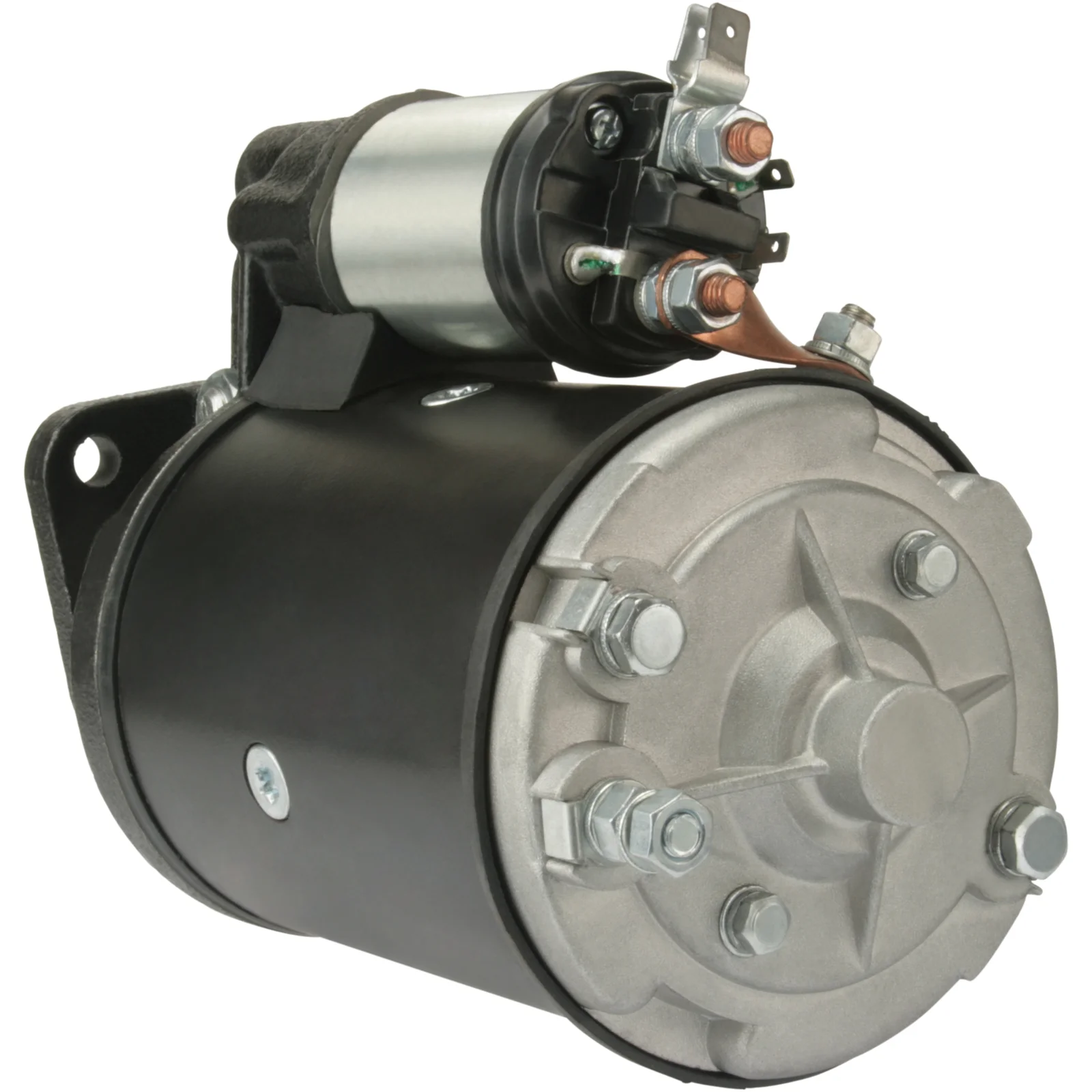

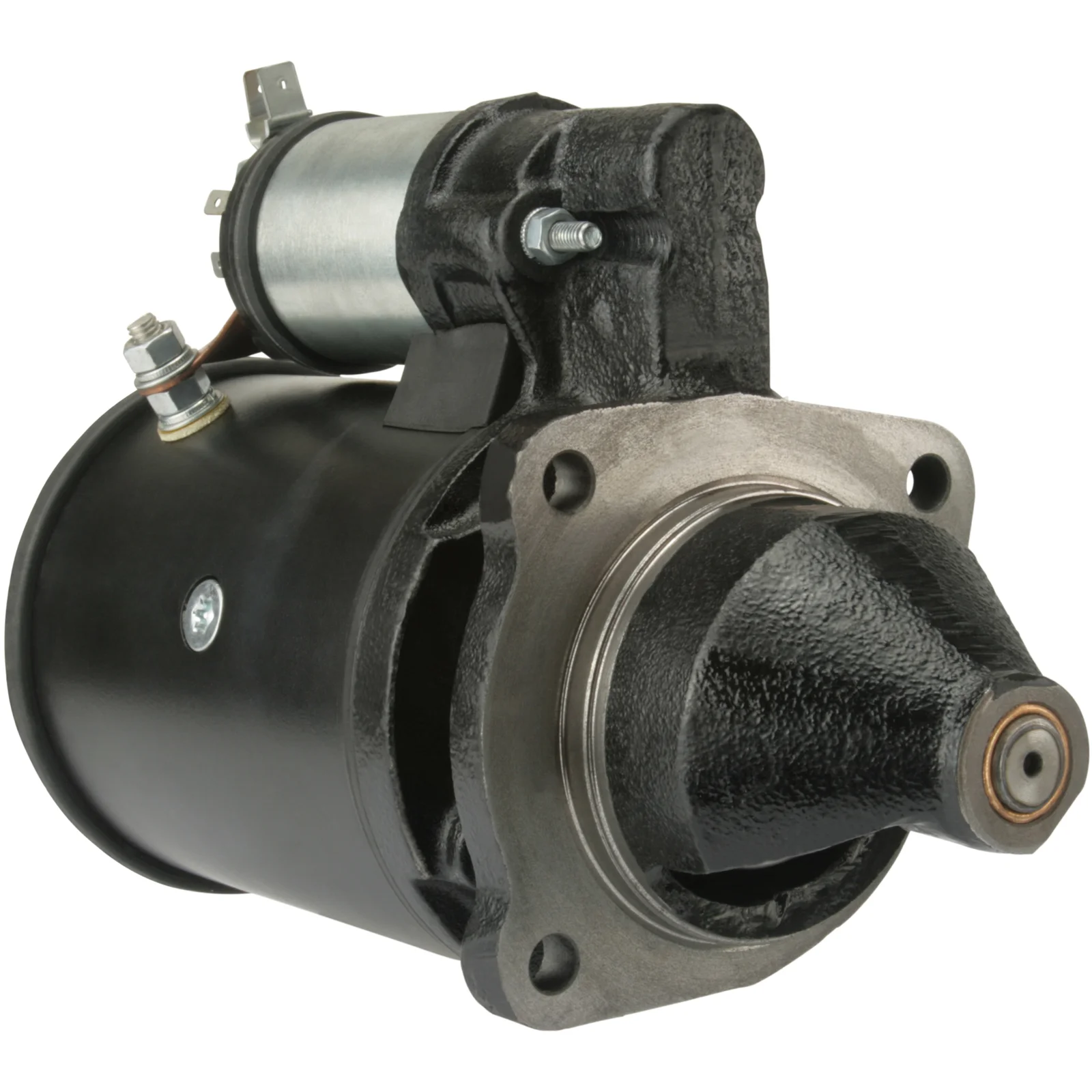

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatts: 2.8
Mounting flange: 89.00
Drive distance: 29.50
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 217.00
Distance / front: 77.00
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: 6.30
Gear type: DD
Distance 2: 89.50
Distance 3: 89.50
Distance mm: 126.50
Rotation: CW
Total length mm: 308.00
Clutch type: Dry
Drive type: Steel
Production information: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    cs994, F032111346, 714-14300, 714-29500, 714-40005, 1873a054, 1873a055, 2873A029, 2873A031, 2873b072, 2873b073, 26298d, 26414, 26414a, 26414e, 26414r, 27541, 27541a, 27541d, 27547, 27565, 27565b, 27565d, 27568, 27568a, 27589, 27590, 27598, 27602, 27608, 27610, 27620, 27626, 27627, 27627B, 27629, 745309, 2873006, 3763362M94, 26925196a, 63227479, 63227541, 63227565, 63227568, 63227590, 63227598, 63227599, 9004475061

  • Normalised article numbler
    bso7018, cs994, cst25132, drs3287, drs3769, f032111346, is0629, les0041, lrs00969, s4019, str25000, 8ea012527161, 8ea737243001, 1873a054, 1873a055, 2873a029, 2873a031, 2873b072, 2873b073, 4451, 10994, 16670n, 17652, 17652n, 18482n, 26298d, 26414, 26414a, 26414e, 26414r, 27541, 27541a, 27541d, 27547, 27565, 27565b, 27565d, 27568, 27568a, 27589, 27590, 27598, 27602, 27608, 27610, 27620, 27626, 27627, 27627b, 27629, 33473, 104087, 104306, 250041, 251030, 252402, 745309, 2873006, 3763362m94, 11022680, 20500969, 26925196a, 63227479, 63227541, 63227565, 63227568, 63227590, 63227598, 63227599, 71414300, 71429500, 71440005, 644002102, 685028102, 0986022680, 9004475061
  • Description
    Voltage: 12
    kilowatts: 2.8
    Mounting flange: 89.00
    Drive distance: 29.50
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 217.00
    Distance / front: 77.00
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: DD
    Distance 2: 89.50
    Distance 3: 89.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 308.00
    Clutch type: Dry
    Drive type: Steel
    Production information: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      cs994, F032111346, 714-14300, 714-29500, 714-40005, 1873a054, 1873a055, 2873A029, 2873A031, 2873b072, 2873b073, 26298d, 26414, 26414a, 26414e, 26414r, 27541, 27541a, 27541d, 27547, 27565, 27565b, 27565d, 27568, 27568a, 27589, 27590, 27598, 27602, 27608, 27610, 27620, 27626, 27627, 27627B, 27629, 745309, 2873006, 3763362M94, 26925196a, 63227479, 63227541, 63227565, 63227568, 63227590, 63227598, 63227599, 9004475061

    • Normalised article numbler
      bso7018, cs994, cst25132, drs3287, drs3769, f032111346, is0629, les0041, lrs00969, s4019, str25000, 8ea012527161, 8ea737243001, 1873a054, 1873a055, 2873a029, 2873a031, 2873b072, 2873b073, 4451, 10994, 16670n, 17652, 17652n, 18482n, 26298d, 26414, 26414a, 26414e, 26414r, 27541, 27541a, 27541d, 27547, 27565, 27565b, 27565d, 27568, 27568a, 27589, 27590, 27598, 27602, 27608, 27610, 27620, 27626, 27627, 27627b, 27629, 33473, 104087, 104306, 250041, 251030, 252402, 745309, 2873006, 3763362m94, 11022680, 20500969, 26925196a, 63227479, 63227541, 63227565, 63227568, 63227590, 63227598, 63227599, 71414300, 71429500, 71440005, 644002102, 685028102, 0986022680, 9004475061
