Article no.: F032111565

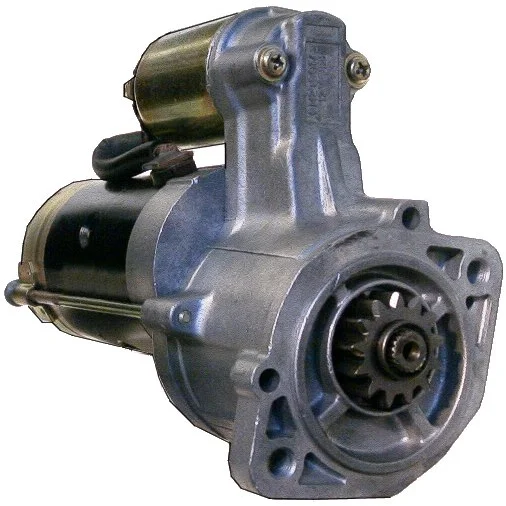

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 13, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 77.00
Drive distance: 9.00
Distance/behind: 224.00
Distance/in front: 15.50
Number/teeth: 13
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: GR
Distance in mm: 103.50
Rotation: CW
Total length in mm: 239.50
Clutch type: Dry
Drive type: Steel
Manufacturing info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    F032111565, hq808670, js892, M002T60185, M002T61171, M002T62771, M002T63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, MD177596, md191437, mg122202, TM000A18601, 36100-47650

  • Normalised article numbler
    cst35103, drs3343, drs3344, f032111565, f042s0h029, hq808670, js892, m002t60185, m002t61171, m002t62771, m002t63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, md177596, md191437, mg122202, qs2615, s5102, str71013, strh029, tm000a18601, 8ea012528441, 8ea732845001, 4304, 20892, 30897n, 30897r, 105337, 220594, 220594a, 250466, 252005, 458579, 600011, 2752520, 8213225, 11040100, 326004102, 326013102, 326020132, 626030102, 0986017611, 3610047650, 944280525200
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 77.00
    Drive distance: 9.00
    Distance/behind: 224.00
    Distance/in front: 15.50
    Number/teeth: 13
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: GR
    Distance in mm: 103.50
    Rotation: CW
    Total length in mm: 239.50
    Clutch type: Dry
    Drive type: Steel
    Manufacturing info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032111565, hq808670, js892, M002T60185, M002T61171, M002T62771, M002T63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, MD177596, md191437, mg122202, TM000A18601, 36100-47650

    • Normalised article numbler
      cst35103, drs3343, drs3344, f032111565, f042s0h029, hq808670, js892, m002t60185, m002t61171, m002t62771, m002t63171, m2t60185, m2t61171, m2t62771, m2t63171, md121581, md156987, md164978, md177596, md191437, mg122202, qs2615, s5102, str71013, strh029, tm000a18601, 8ea012528441, 8ea732845001, 4304, 20892, 30897n, 30897r, 105337, 220594, 220594a, 250466, 252005, 458579, 600011, 2752520, 8213225, 11040100, 326004102, 326013102, 326020132, 626030102, 0986017611, 3610047650, 944280525200
