Article no.: F032111586

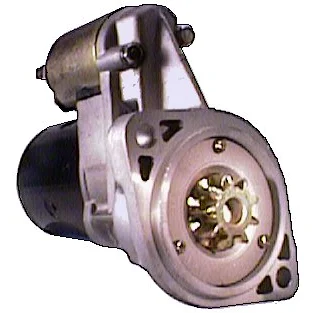

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 82.50
Drive dist.: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 199.00
Dist./front: 9.50
No./teeth: 9
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.00
Rotation: CW
Total length mm: 207.50
Drive type: Steel
Prod. info: Reman
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 82.50
    Drive dist.: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 199.00
    Dist./front: 9.50
    No./teeth: 9
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 110.00
    Rotation: CW
    Total length mm: 207.50
    Drive type: Steel
    Prod. info: Reman
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles
