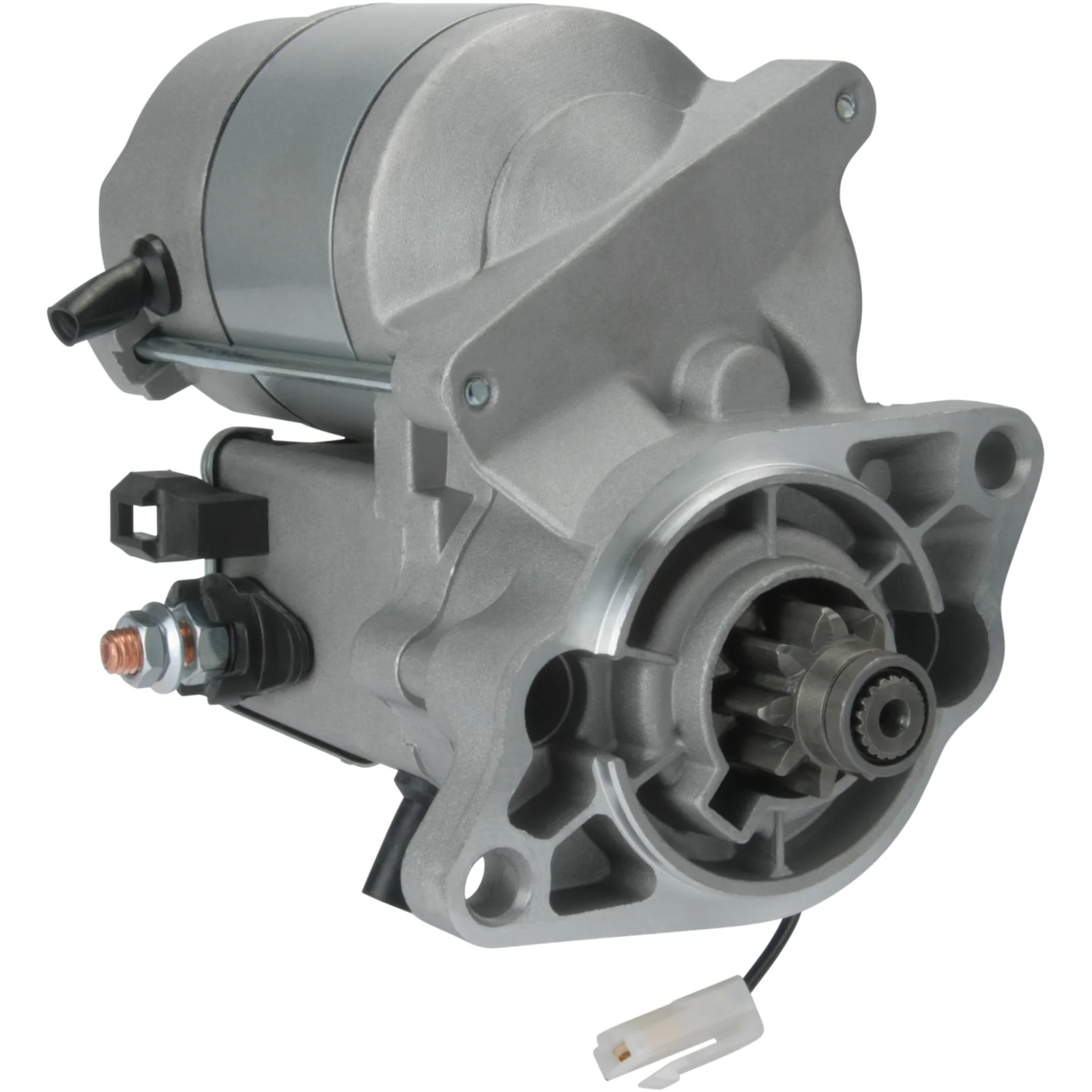

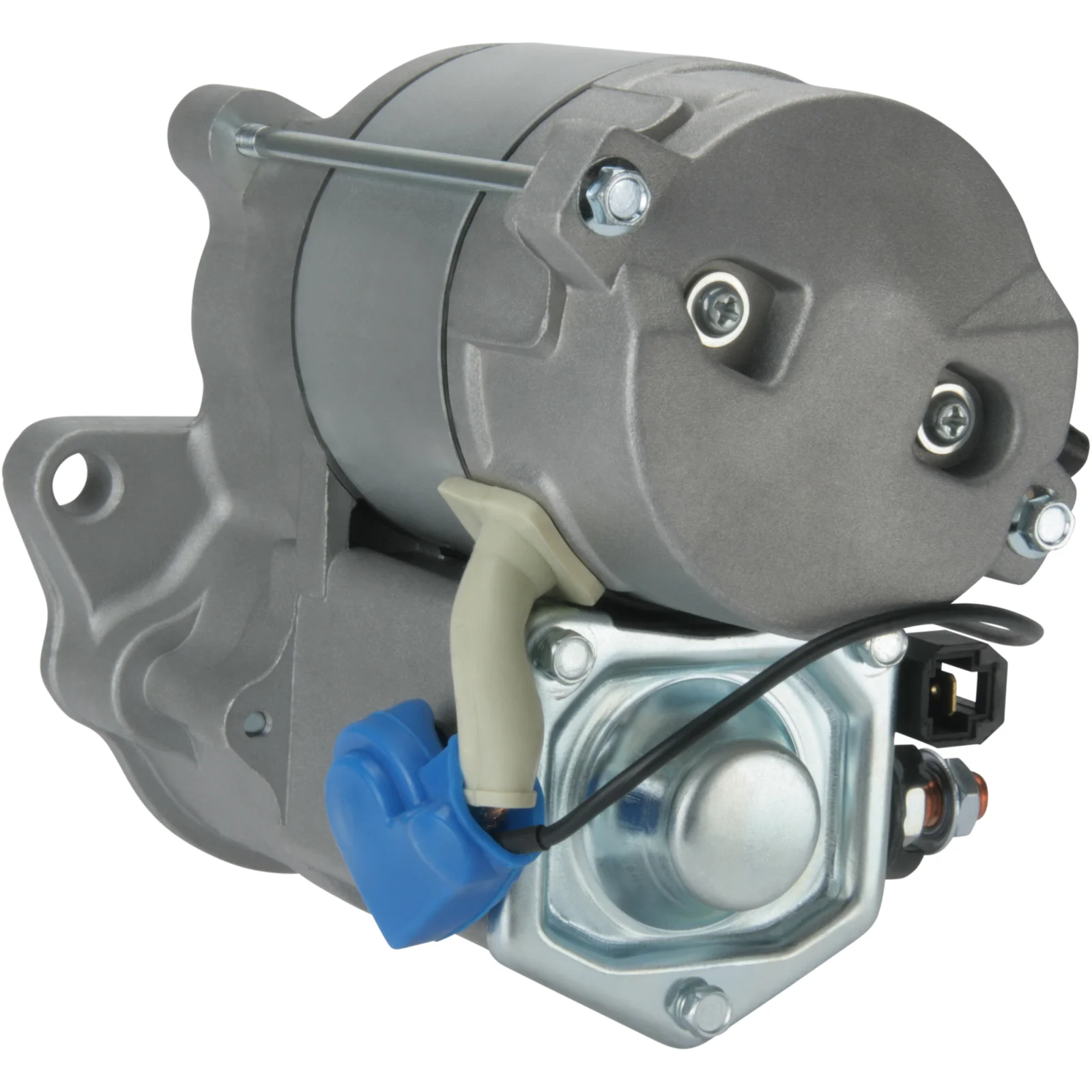

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111622

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 66.00
Drive dist.: 18.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Dist./back: 150.50
Dist./front: 29.00
No./teeth: 9
B+: M8
Position/50: 12
Terminal 50: 6.30
Gear type: GR
Dist. mm: 110.50
Rotation: CW
Total length mm: 183.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    F032111622, 16285-63011, 16285-63012, 228000-0950, 228000-0951

  • Normalised article numbler
    cst40144, dsn2065, f032111622, s6336denso, s6388denso, str30020, 104370, 253001, 1628563011, 1628563012, 2280000950, 2280000951
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 66.00
    Drive dist.: 18.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Dist./back: 150.50
    Dist./front: 29.00
    No./teeth: 9
    B+: M8
    Position/50: 12
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 110.50
    Rotation: CW
    Total length mm: 183.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111622, 16285-63011, 16285-63012, 228000-0950, 228000-0951

    • Normalised article numbler
      cst40144, dsn2065, f032111622, s6336denso, s6388denso, str30020, 104370, 253001, 1628563011, 1628563012, 2280000950, 2280000951
