Article no.: F032111683

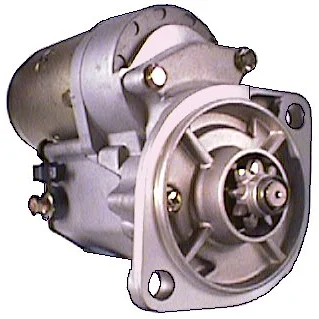

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mounting flange: 95.00
Drive distance: 19.50
Mounting hole 2 mm: 14.00
Mounting hole 1 mm: 14.00
Distance/ rear: 201.00
Distance/ front: 31.00
Number/ teeth: 9
B+: M8
Position/50: 10
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 120.00
Rotation: CW
Total length in millimeters: 232.50
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number/ mounting holes: 2 (0)

Files

  • OEM
    F032111683, js552, s13-136, 44-5674, 45-5657, 65.26201-7039, 65.26201-7059, 03101-3030, 03101-3031, 6281-100-010-1E, 6281-100-010-2F, 6281-100-010-2H, 028000-7000, 028000-7001, 028000-7002, 028000-7003, 028000-7004, 028000-7790, 028000-7791, 028000-7792, 112473, 128000-0020, 128000-0960, 128000-2881, 128000-4660, 128000-4661, 128000-4662, 128000-4663, 228000-3850, 228000-3851, 228000-3852, 228000-4290, 228000-4291, 228000-4292, 228000-4293, 228000-4295, 228000-5382, 8023898, 94448959, 2912559140, 5811001660, 5811001661, 5811001662, 5811001663, 5811001664, 5811001830, 5811001860, 8944127301, 8944489590, 8944489591, 8944489592, 8944489593, 8971128650, 8971128651, 8971128652, 8971353431, 8971353432

  • Normalised article numbler
    aus102, bso7129, cst20143, cst20228, cst40109, cst40158, cst40191, cst60125, drs3144, drs3245, ds16739, dsn2063, dsn2128, f032111683, f042000015, f042000027, f042s00015, f042s00027, js552, les0127, lrs00615, qs1517, s13136, s2052, s6004, s6278denso, s6278s, s786, s8152, sj0011r, sn0055r, snd0137, str30018, str5001, str5007, str5012, str70026, 8ea726504001, 1414, 8432, 11593, 16739, 16739n, 16739r, 17044, 18299n, 19829n, 19906, 19906n, 19907n, 20552, 21193nd, 31389, 103869, 105478, 112473, 119275, 220577, 220577a, 251050, 251106, 251151, 254526, 254746, 323812, 352314, 352351, 352543, 361326, 445674, 446031, 446379, 455657, 455925, 2652901, 2652909, 8023898, 8212475, 11040283, 11040438, 031013030, 031013031, 91295074, 94448959, 130598092, 0280007000, 0280007001, 0280007002, 0280007003, 0280007004, 0280007790, 0280007791, 0280007792, 343001092, 343031092, 640519092, 643031092, 0986016071, 1280000020, 1280000960, 1280002881, 1280004660, 1280004661, 1280004662, 1280004663, 2280003850, 2280003851, 2280003852, 2280004290, 2280004291, 2280004292, 2280004293, 2280004295, 2280005382, 2912559140, 5811001660, 5811001661, 5811001662, 5811001663, 5811001664, 5811001830, 5811001860, 8944127301, 8944489590, 8944489591, 8944489592, 8944489593, 8971128650, 8971128651, 8971128652, 8971353431, 8971353432, 62811000101e, 62811000102f, 62811000102h, 65262017039, 65262017059
  • Description
    Voltage: 12
    kW: 2.0
    Mounting flange: 95.00
    Drive distance: 19.50
    Mounting hole 2 mm: 14.00
    Mounting hole 1 mm: 14.00
    Distance/ rear: 201.00
    Distance/ front: 31.00
    Number/ teeth: 9
    B+: M8
    Position/50: 10
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 232.50
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number/ mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111683, js552, s13-136, 44-5674, 45-5657, 65.26201-7039, 65.26201-7059, 03101-3030, 03101-3031, 6281-100-010-1E, 6281-100-010-2F, 6281-100-010-2H, 028000-7000, 028000-7001, 028000-7002, 028000-7003, 028000-7004, 028000-7790, 028000-7791, 028000-7792, 112473, 128000-0020, 128000-0960, 128000-2881, 128000-4660, 128000-4661, 128000-4662, 128000-4663, 228000-3850, 228000-3851, 228000-3852, 228000-4290, 228000-4291, 228000-4292, 228000-4293, 228000-4295, 228000-5382, 8023898, 94448959, 2912559140, 5811001660, 5811001661, 5811001662, 5811001663, 5811001664, 5811001830, 5811001860, 8944127301, 8944489590, 8944489591, 8944489592, 8944489593, 8971128650, 8971128651, 8971128652, 8971353431, 8971353432

    • Normalised article numbler
      aus102, bso7129, cst20143, cst20228, cst40109, cst40158, cst40191, cst60125, drs3144, drs3245, ds16739, dsn2063, dsn2128, f032111683, f042000015, f042000027, f042s00015, f042s00027, js552, les0127, lrs00615, qs1517, s13136, s2052, s6004, s6278denso, s6278s, s786, s8152, sj0011r, sn0055r, snd0137, str30018, str5001, str5007, str5012, str70026, 8ea726504001, 1414, 8432, 11593, 16739, 16739n, 16739r, 17044, 18299n, 19829n, 19906, 19906n, 19907n, 20552, 21193nd, 31389, 103869, 105478, 112473, 119275, 220577, 220577a, 251050, 251106, 251151, 254526, 254746, 323812, 352314, 352351, 352543, 361326, 445674, 446031, 446379, 455657, 455925, 2652901, 2652909, 8023898, 8212475, 11040283, 11040438, 031013030, 031013031, 91295074, 94448959, 130598092, 0280007000, 0280007001, 0280007002, 0280007003, 0280007004, 0280007790, 0280007791, 0280007792, 343001092, 343031092, 640519092, 643031092, 0986016071, 1280000020, 1280000960, 1280002881, 1280004660, 1280004661, 1280004662, 1280004663, 2280003850, 2280003851, 2280003852, 2280004290, 2280004291, 2280004292, 2280004293, 2280004295, 2280005382, 2912559140, 5811001660, 5811001661, 5811001662, 5811001663, 5811001664, 5811001830, 5811001860, 8944127301, 8944489590, 8944489591, 8944489592, 8944489593, 8971128650, 8971128651, 8971128652, 8971353431, 8971353432, 62811000101e, 62811000102f, 62811000102h, 65262017039, 65262017059
