HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111684

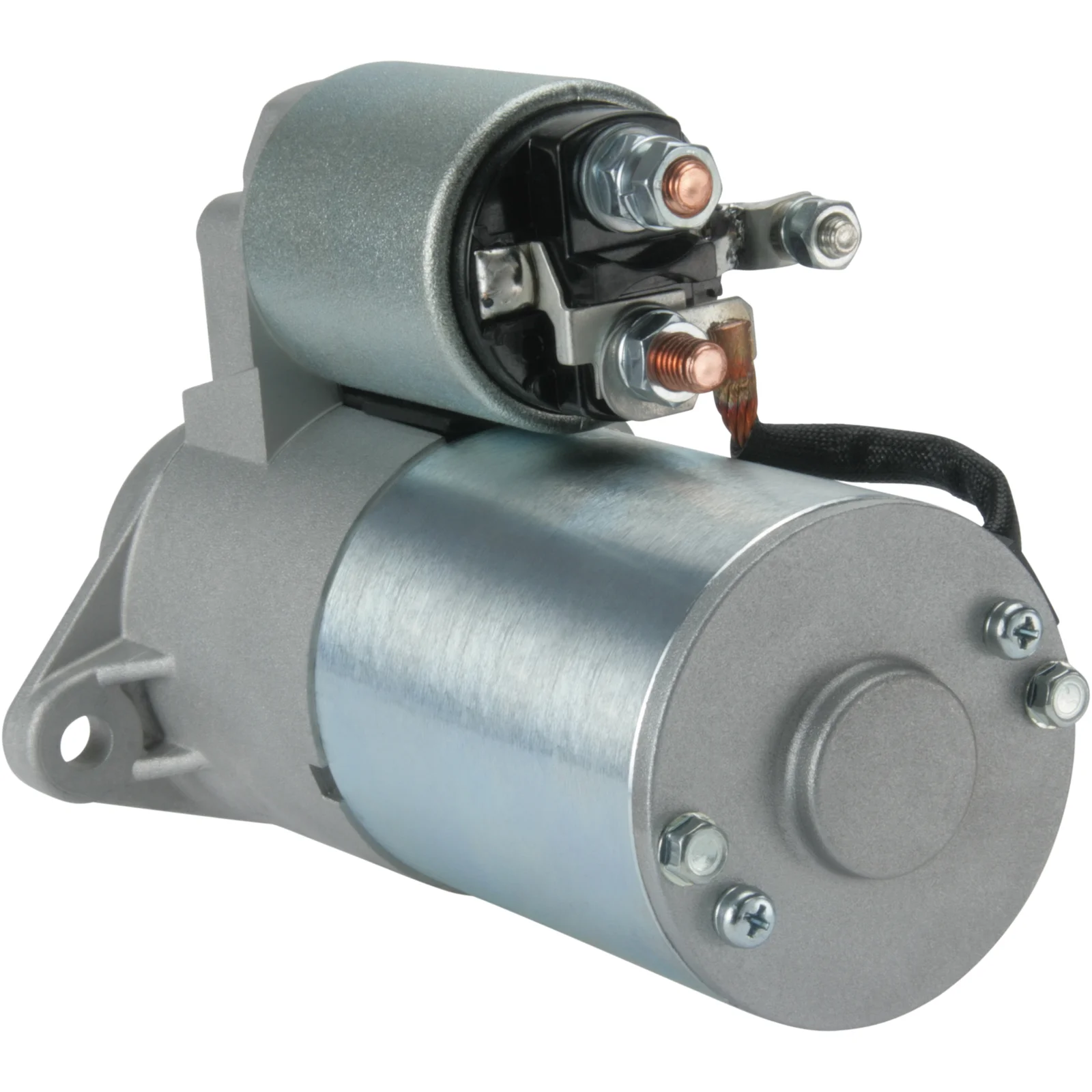

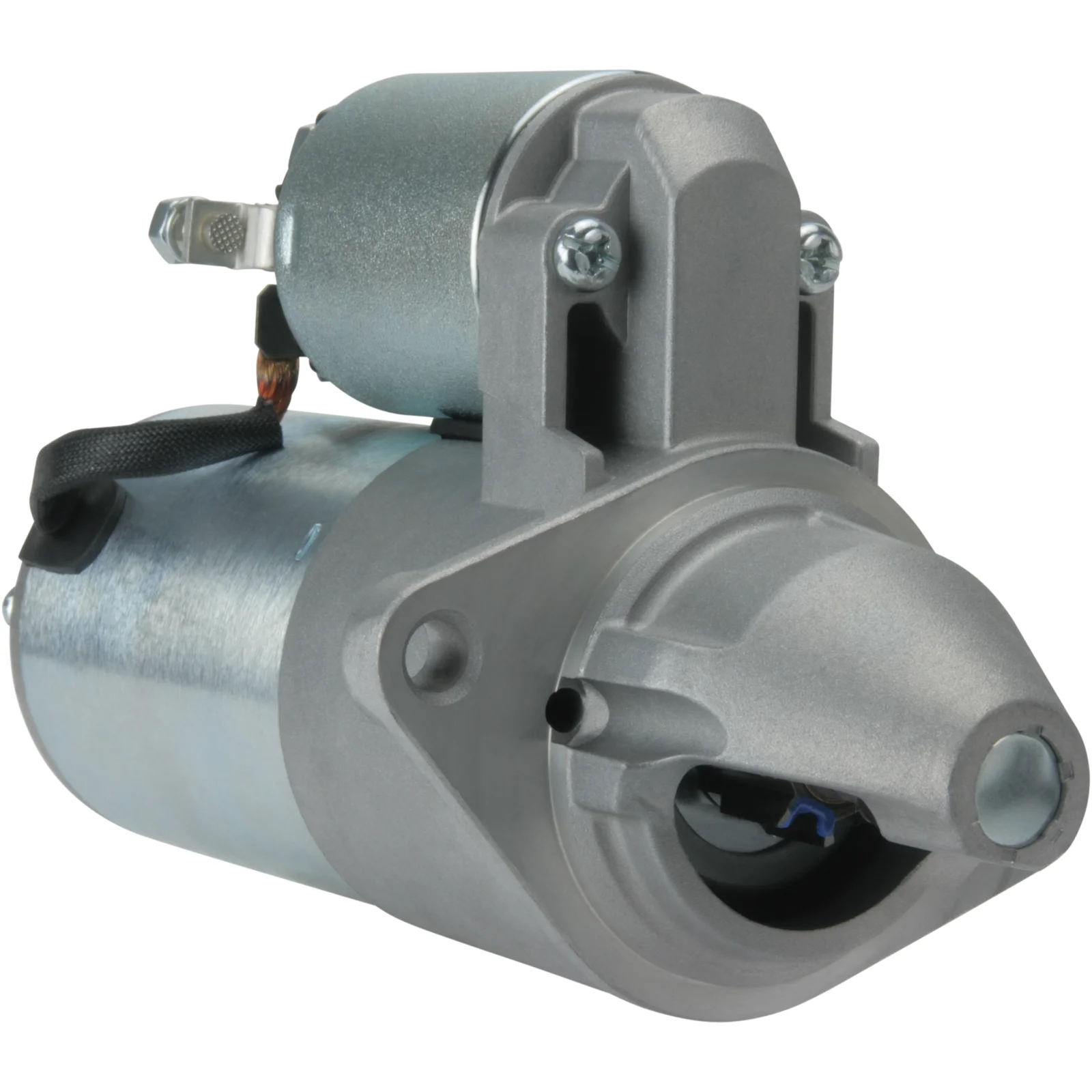

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 68.00
Drive distance: 18.00
Mount. hole 2 mm: 9.00
Mount. hole 1 mm: 9.00
Distance/back: 156.00
Distance/front: 57.00
Number/teeth: 9
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Distance mm: 104.00
Rotation: CW
Total length mm: 213.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (0)

Files

  • OEM
    F032111684, 9000801, 96208782, 96469963, 96550782, 96550792

  • Normalised article numbler
    cst46101, drs3549, f032111684, f042003035, f042s03035, j5210900, lrs00715, str2660, 6726, 22137dr, 252248, 838026, 9000801, 063522604, 96208782, 96469963, 96550782, 96550792, 328017092, 063522604010, 944280171250
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 68.00
    Drive distance: 18.00
    Mount. hole 2 mm: 9.00
    Mount. hole 1 mm: 9.00
    Distance/back: 156.00
    Distance/front: 57.00
    Number/teeth: 9
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Distance mm: 104.00
    Rotation: CW
    Total length mm: 213.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111684, 9000801, 96208782, 96469963, 96550782, 96550792

    • Normalised article numbler
      cst46101, drs3549, f032111684, f042003035, f042s03035, j5210900, lrs00715, str2660, 6726, 22137dr, 252248, 838026, 9000801, 063522604, 96208782, 96469963, 96550782, 96550792, 328017092, 063522604010, 944280171250
