HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111706

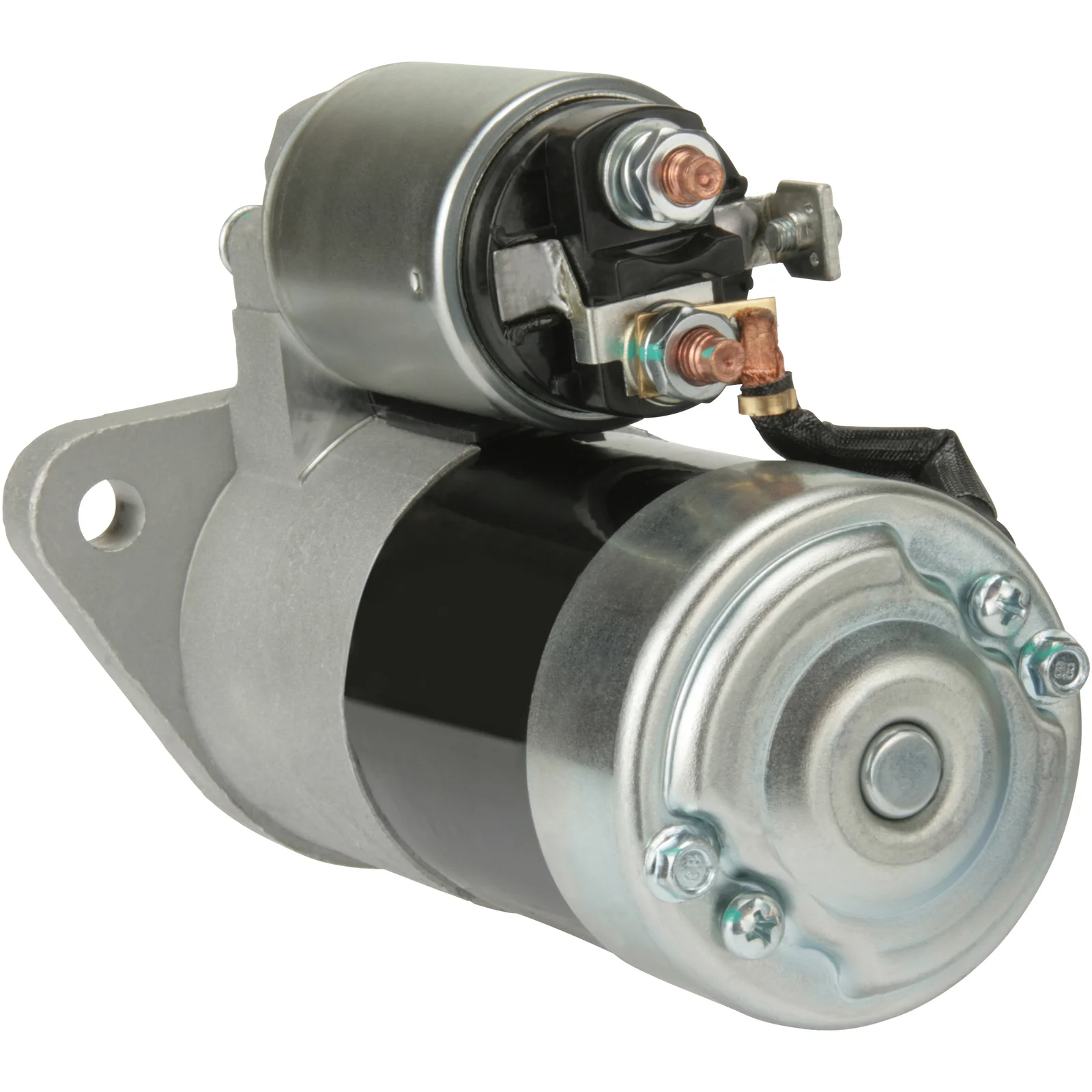

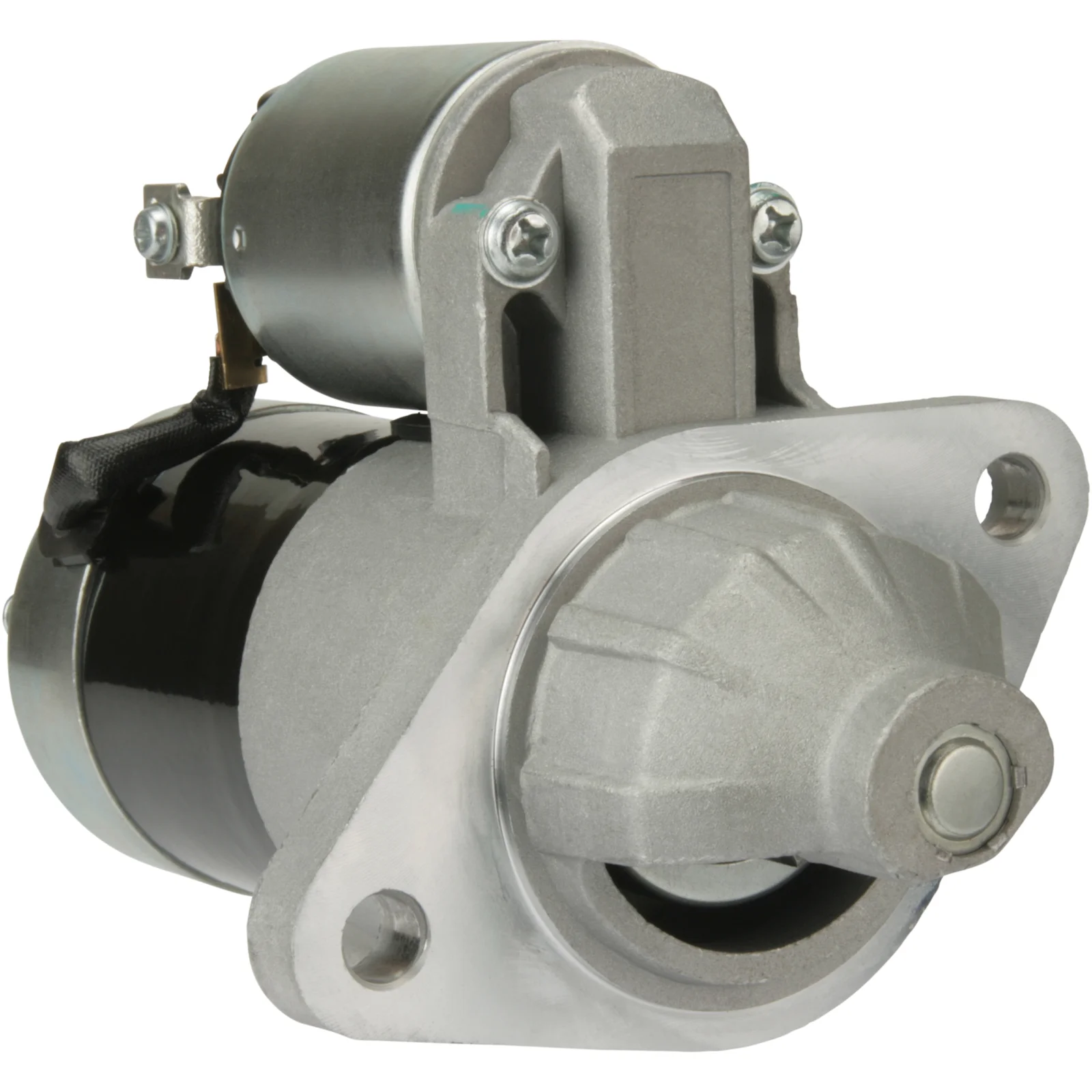

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Yanmar Starter motor 12V-1.0kW 12V - 1.0kW, 9k for Yourex product order 91-678-4303 Voltage: 12 kW: 1.0 Mounting flange: 70.00 Drive distance: 17.50 Mounting hole 2 mm: 10.70 Mounting hole 1 mm: 10.70 Distance / back: 150.00 Distance / front: 52.00 Number / teeth: 9 B+: M8 Position / 50: 15 Terminal 50: M5 Gear type: DD/GR Distance in millimeters: 109.50 Rotation: CW Total length in millimeters: 206.00 Drive type: Steel Waterproof: No Oil sealed: No Number / mounting holes: 2 (0)

Files

  • OEM
    F032111706, js1145, S114-303, s114-303, S114-303A, s114-303a, 128170-77010, 128170-77010d

  • Normalised article numbler
    cst20138, f032111706, js1145, lrs01128, s114303, s114303a, s2085s, str23018, 18209, 18209n, 21872hi, 104458, 201145, 251081, 682007092, 12817077010, 12817077010d
  • Description
    Yanmar Starter motor 12V-1.0kW 12V - 1.0kW, 9k for Yourex product order 91-678-4303 Voltage: 12 kW: 1.0 Mounting flange: 70.00 Drive distance: 17.50 Mounting hole 2 mm: 10.70 Mounting hole 1 mm: 10.70 Distance / back: 150.00 Distance / front: 52.00 Number / teeth: 9 B+: M8 Position / 50: 15 Terminal 50: M5 Gear type: DD/GR Distance in millimeters: 109.50 Rotation: CW Total length in millimeters: 206.00 Drive type: Steel Waterproof: No Oil sealed: No Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032111706, js1145, S114-303, s114-303, S114-303A, s114-303a, 128170-77010, 128170-77010d

    • Normalised article numbler
      cst20138, f032111706, js1145, lrs01128, s114303, s114303a, s2085s, str23018, 18209, 18209n, 21872hi, 104458, 201145, 251081, 682007092, 12817077010, 12817077010d
