Article no.: F032111724

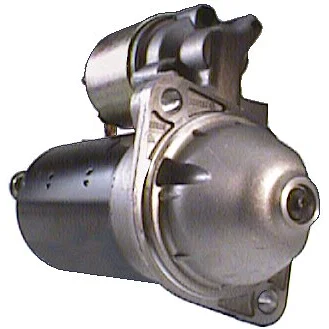

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

HC-Cargo Starter motor 12V - 2.0 kW, 9k

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.40
Dist./back: 175.00
Dist./front: 54.00
No./teeth: 9
B+: M8
Thread length mm: 14.00
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 242.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    C5530016A, CS1071, cs1071, F032111724, R1040038, 0001 109 033, 111724, 0001109033, 6202048, 9512765, 91154217, 93175883, 93175901

  • Normalised article numbler
    c5530016a, cs1071, cst10252, drs3808, f032111724, f042002081, f042s02081, lrs01417, qs2528, r1040038, s0604, str2233, 8ea737460001, 4537, 9546, 31344r, 101071, 111724, 220102, 220102a, 252316, 0001109033, 6202048, 9512765, 11019860, 91154217, 93175883, 93175901, 328041092, 0986019860, 0986019863
  • Description
    HC-Cargo Starter motor 12V - 2.0 kW, 9k

    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.40
    Dist./back: 175.00
    Dist./front: 54.00
    No./teeth: 9
    B+: M8
    Thread length mm: 14.00
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 242.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      C5530016A, CS1071, cs1071, F032111724, R1040038, 0001 109 033, 111724, 0001109033, 6202048, 9512765, 91154217, 93175883, 93175901

    • Normalised article numbler
      c5530016a, cs1071, cst10252, drs3808, f032111724, f042002081, f042s02081, lrs01417, qs2528, r1040038, s0604, str2233, 8ea737460001, 4537, 9546, 31344r, 101071, 111724, 220102, 220102a, 252316, 0001109033, 6202048, 9512765, 11019860, 91154217, 93175883, 93175901, 328041092, 0986019860, 0986019863
