HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111805

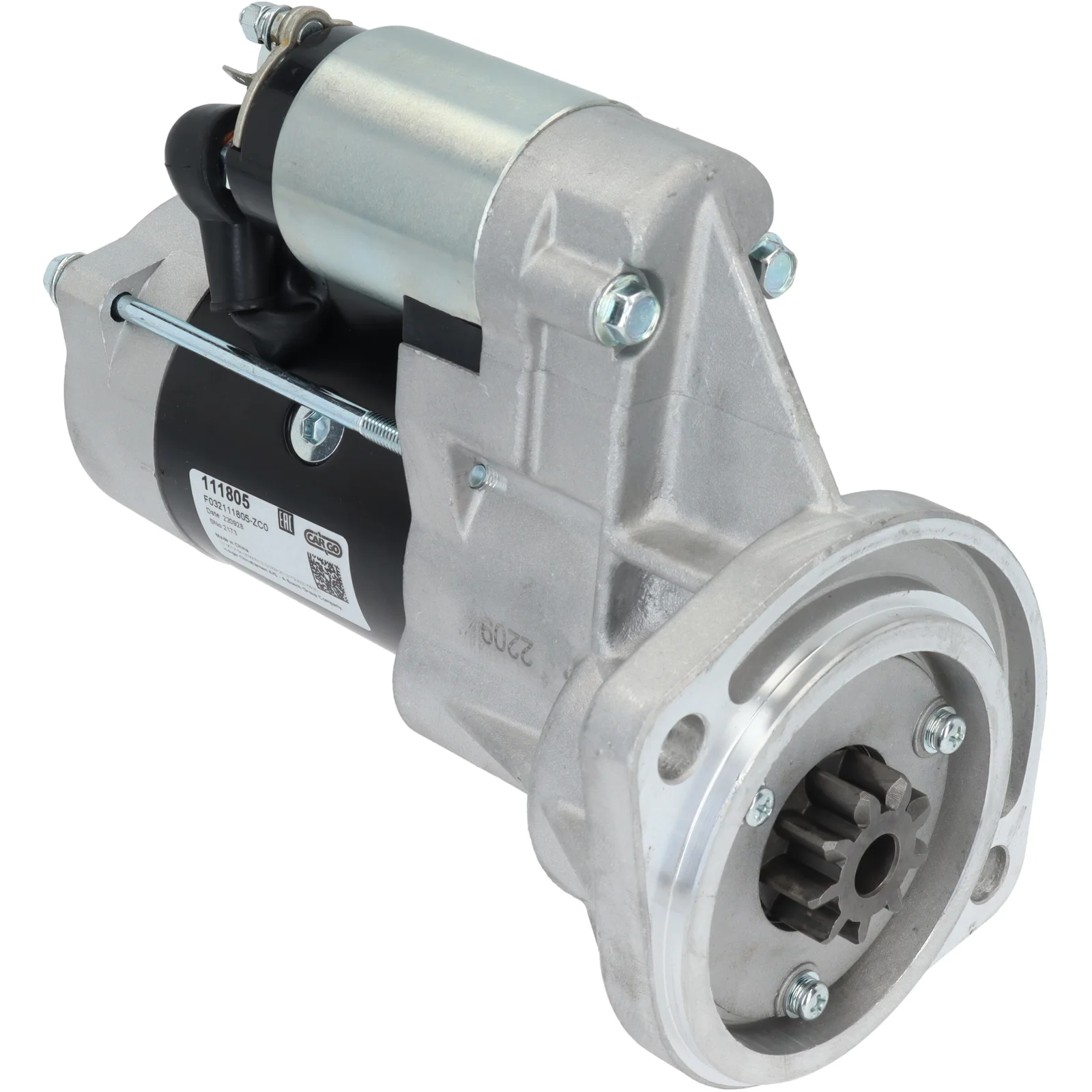

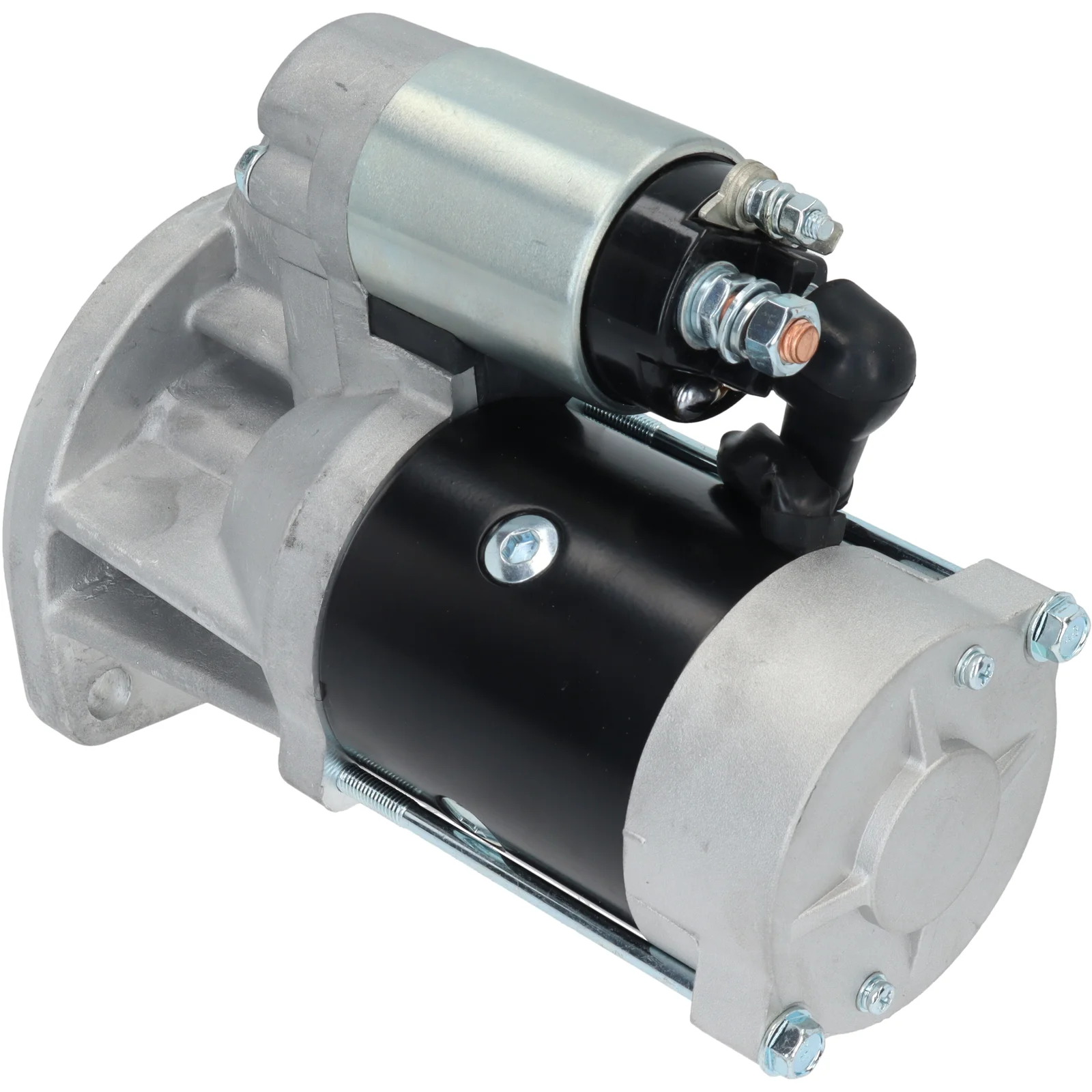

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mounting flange: 95.00
Drive distance: 11.50
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 219.00
Distance / front: 11.50
Number / teeth: 9
B+: M8
Position / 50: 50
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 119.00
Rotation: CW
Total length in millimeters: 228.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    AZE4634, F032111805, js1214, s13-107, s13-107a, s13-127, s13-127a, s13-127c, 11.139.406, 17610-q1010, 23300-10t02, 23300-g2403, 23300-g2404, 23300-g2405, 23300-g2406, 111534, 1516934R, 9000331201, 9000331203

  • Normalised article numbler
    ads142, ads187, aze4634, bso7119, cst20104, drs3165, drs3165n, drs6740, f032111805, f042004023, f042s04023, frs604, is9319, j5211075, js1214, lrs00727, lrt00106, ms215, qs1434, qs1605, s13107, s13107a, s13127, s13127a, s13127c, s2005, s2007, str6008, 8ea011611111, 8ea012527031, 8ea726490001, 8ea737807001, 1356, 9542, 11727, 11732, 17610q1010, 20517, 23300g2403, 23300g2404, 23300g2405, 23300g2406, 30276r, 30725n, 111534, 201106, 201214, 220000, 220000a, 220003, 220003a, 220204, 220204a, 251074, 251165, 253039, 438141, 458161, 458526, 726904, 1516934r, 2330010t02, 2852135, 8213187, 11040147, 11139406, 327031092, 327033092, 327060092, 943241031, 0986016031, 0986016740, 9000331201, 9000331203, 943241031010, 944280167400
  • Description
    Voltage: 12
    kW: 2.5
    Mounting flange: 95.00
    Drive distance: 11.50
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 219.00
    Distance / front: 11.50
    Number / teeth: 9
    B+: M8
    Position / 50: 50
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 119.00
    Rotation: CW
    Total length in millimeters: 228.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE4634, F032111805, js1214, s13-107, s13-107a, s13-127, s13-127a, s13-127c, 11.139.406, 17610-q1010, 23300-10t02, 23300-g2403, 23300-g2404, 23300-g2405, 23300-g2406, 111534, 1516934R, 9000331201, 9000331203

    • Normalised article numbler
      ads142, ads187, aze4634, bso7119, cst20104, drs3165, drs3165n, drs6740, f032111805, f042004023, f042s04023, frs604, is9319, j5211075, js1214, lrs00727, lrt00106, ms215, qs1434, qs1605, s13107, s13107a, s13127, s13127a, s13127c, s2005, s2007, str6008, 8ea011611111, 8ea012527031, 8ea726490001, 8ea737807001, 1356, 9542, 11727, 11732, 17610q1010, 20517, 23300g2403, 23300g2404, 23300g2405, 23300g2406, 30276r, 30725n, 111534, 201106, 201214, 220000, 220000a, 220003, 220003a, 220204, 220204a, 251074, 251165, 253039, 438141, 458161, 458526, 726904, 1516934r, 2330010t02, 2852135, 8213187, 11040147, 11139406, 327031092, 327033092, 327060092, 943241031, 0986016031, 0986016740, 9000331201, 9000331203, 943241031010, 944280167400
