HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111855

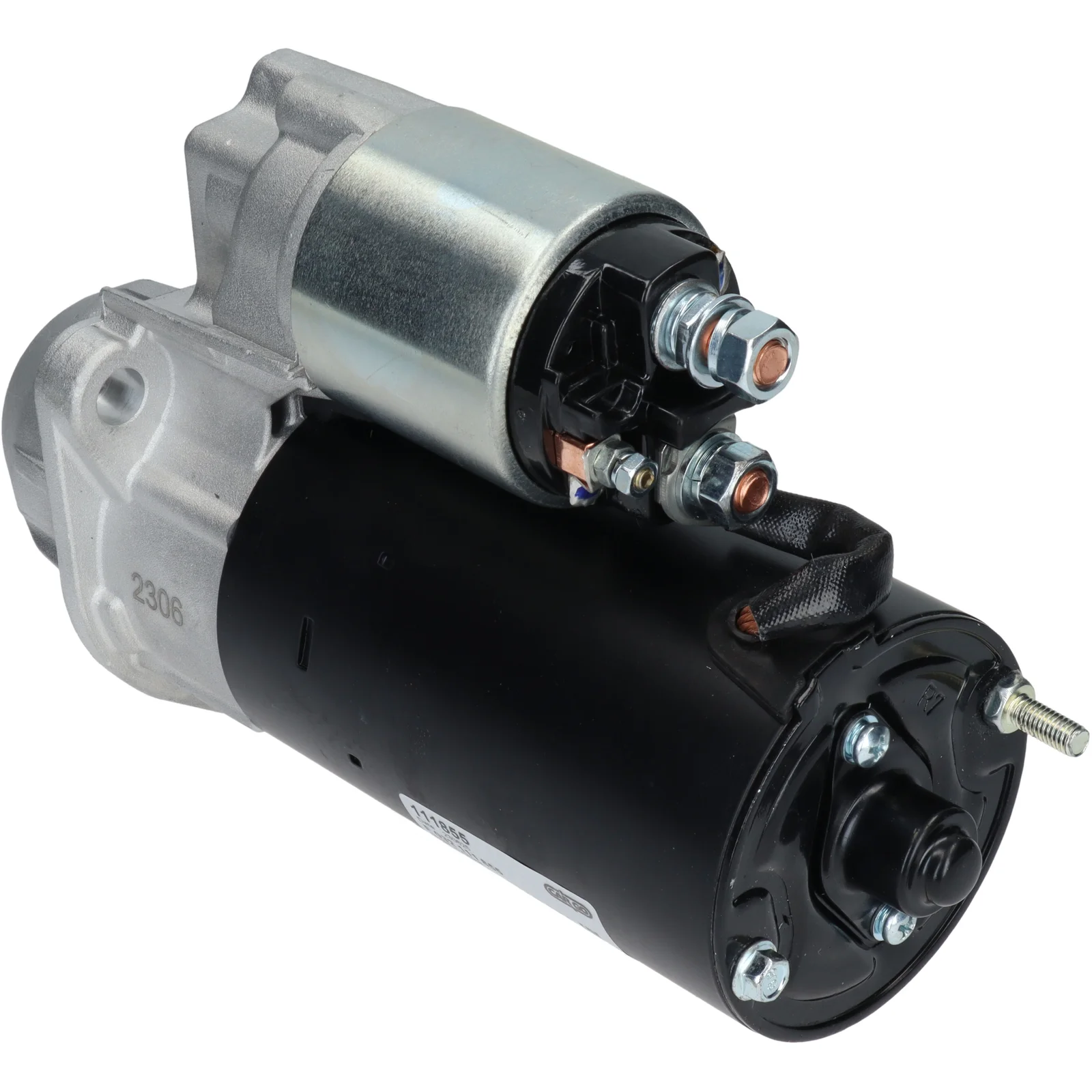

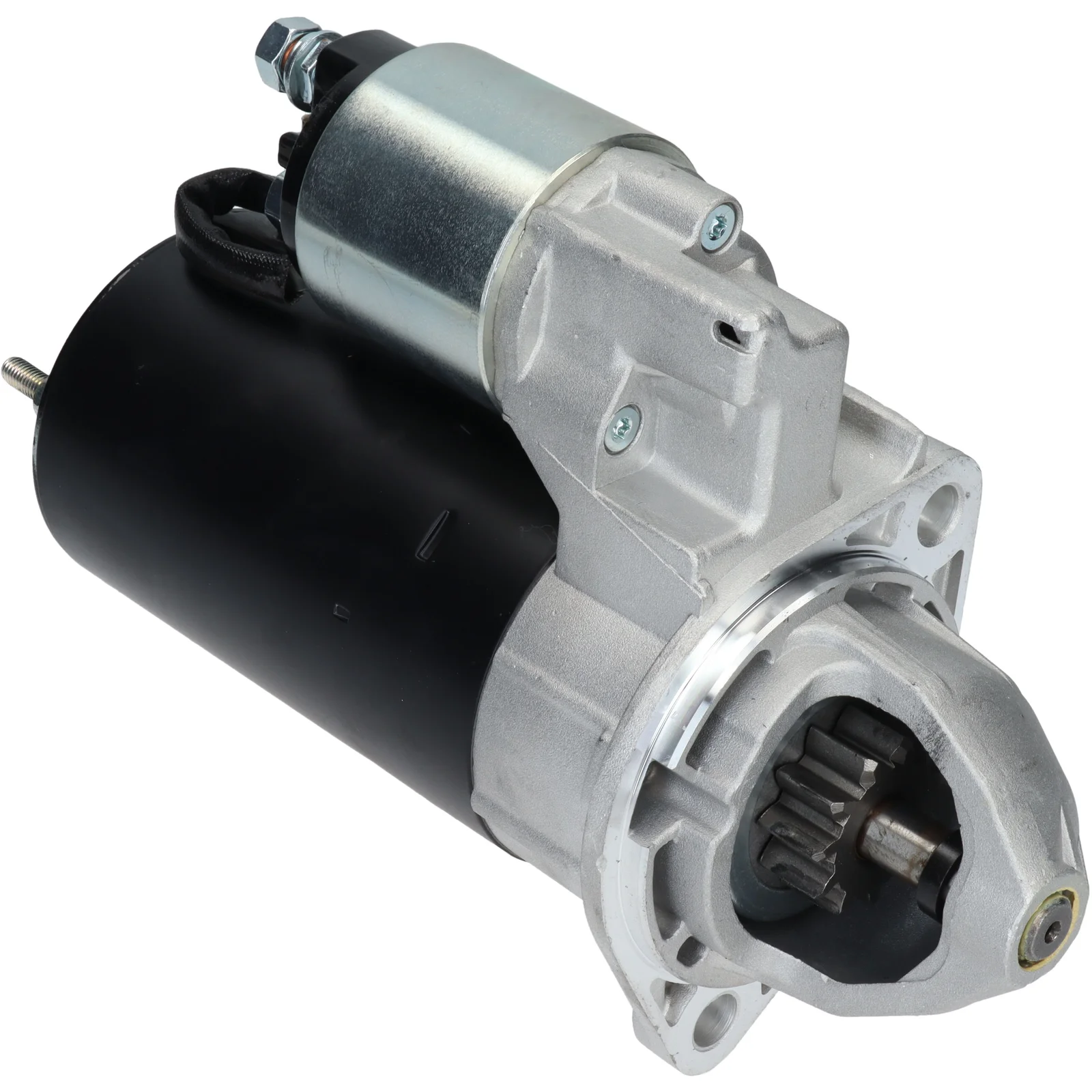

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 11, Rotation: CW

Description

KHD Starter motor 12V-2.2kW 12V - 2.2kW, 11k Alternative: 91-273-4202 (3.2kW) For Yourex product order 91-273-1743

Voltage: 12
kW: 2.2
Mounting flange: 82.50
Drive distance: 23.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 193.50
Distance / front: 62.00
Number / teeth: 11
B+: M8
Thread length mm: 10.50
Position / 50: 40
Terminal 50: M5
Gear type: GR
Distance mm: 101.00
Rotation: CW
Total length mm: 267.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    aze4535, cs1185, F032111855, 0001 218 172, 0001 223 002, 11.131.109, 11.180.180, 0118 0180, 0118 0995, 0986 017 430, 1986S00756, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995KZ, 1180995, 1180995KZ, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 9142726, 9142900, 19083023, 069911023f, 9002904386, 443115142726

  • Normalised article numbler
    aze4535, bso7227, cs1185, cst10142, cst10443, drs7430, drs7430n, drs8290, f032111855, f042002059, f042002146, f042s02059, f042s02146, lrs01422, lrs01457, ms619, s0066, s0505, str22027, str22027an, str22039, str2204, strb015, 8ea015642011, 8ea737793001, 1986s00756, 8505, 18230, 18230n, 19156n, 21946bo, 22204bo, 101185, 103673, 203002, 220333, 220333a, 252321, 252390, 438597, 458884, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995kz, 1180995, 1180995kz, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 8018290, 9142726, 9142900, 11017430, 11018290, 11131109, 11180180, 19083023, 20113711, 20513069, 069911023f, 510521112, 510522112, 688011112, 688016112, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297, 9002904386, 443115142726
  • Description
    KHD Starter motor 12V-2.2kW 12V - 2.2kW, 11k Alternative: 91-273-4202 (3.2kW) For Yourex product order 91-273-1743

    Voltage: 12
    kW: 2.2
    Mounting flange: 82.50
    Drive distance: 23.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 193.50
    Distance / front: 62.00
    Number / teeth: 11
    B+: M8
    Thread length mm: 10.50
    Position / 50: 40
    Terminal 50: M5
    Gear type: GR
    Distance mm: 101.00
    Rotation: CW
    Total length mm: 267.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze4535, cs1185, F032111855, 0001 218 172, 0001 223 002, 11.131.109, 11.180.180, 0118 0180, 0118 0995, 0986 017 430, 1986S00756, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995KZ, 1180995, 1180995KZ, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 9142726, 9142900, 19083023, 069911023f, 9002904386, 443115142726

    • Normalised article numbler
      aze4535, bso7227, cs1185, cst10142, cst10443, drs7430, drs7430n, drs8290, f032111855, f042002059, f042002146, f042s02059, f042s02146, lrs01422, lrs01457, ms619, s0066, s0505, str22027, str22027an, str22039, str2204, strb015, 8ea015642011, 8ea737793001, 1986s00756, 8505, 18230, 18230n, 19156n, 21946bo, 22204bo, 101185, 103673, 203002, 220333, 220333a, 252321, 252390, 438597, 458884, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995kz, 1180995, 1180995kz, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 8018290, 9142726, 9142900, 11017430, 11018290, 11131109, 11180180, 19083023, 20113711, 20513069, 069911023f, 510521112, 510522112, 688011112, 688016112, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297, 9002904386, 443115142726
