HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032111885

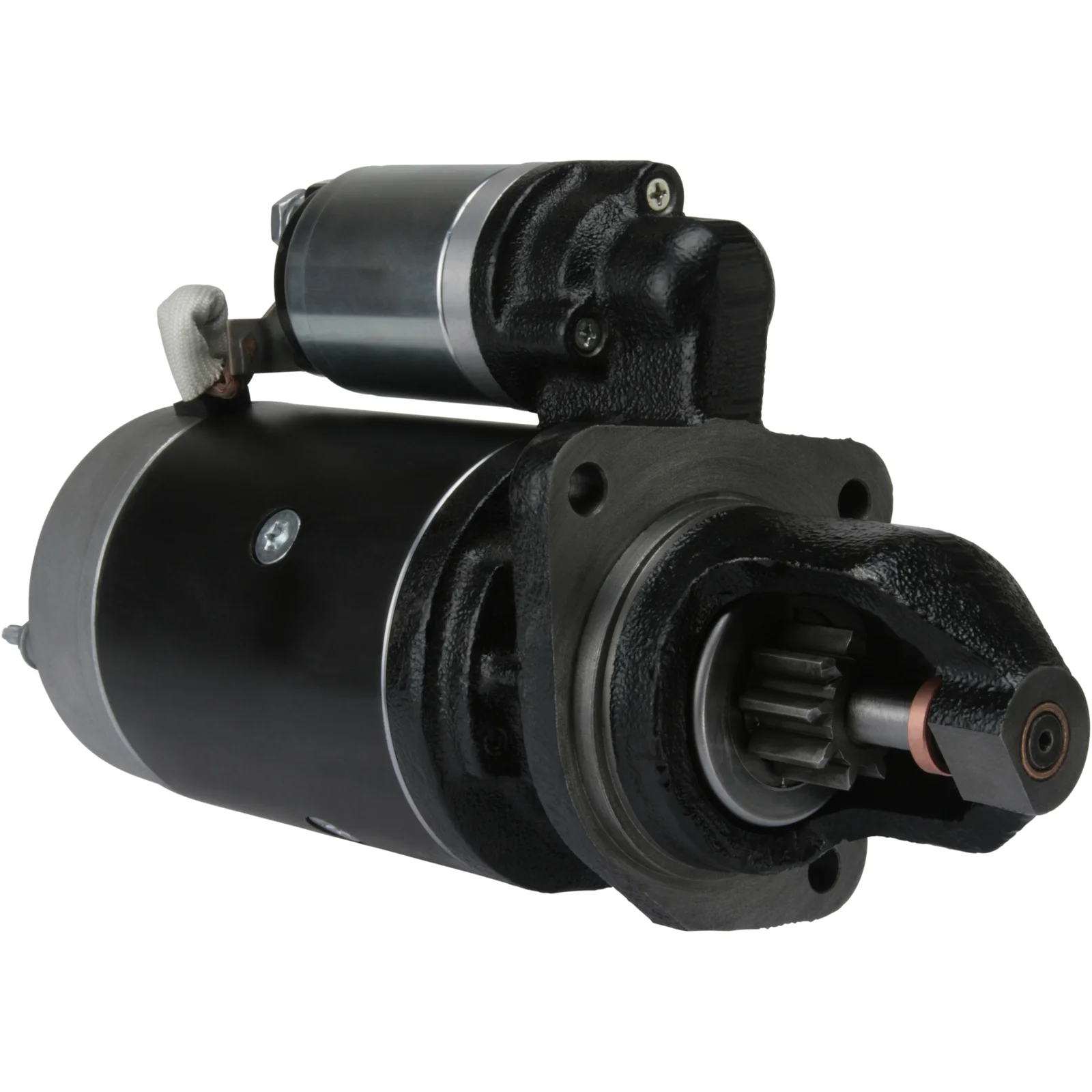

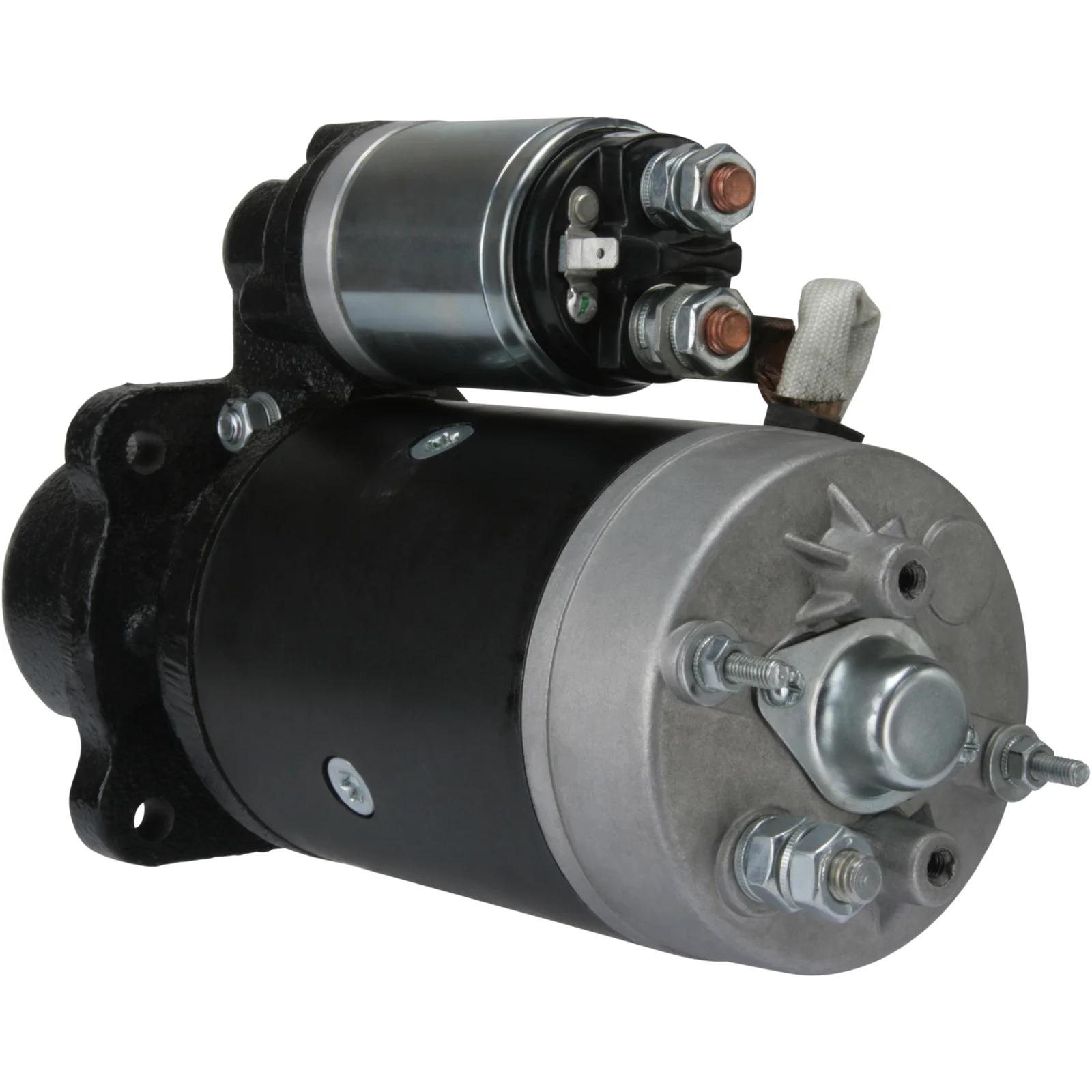

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.1
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance/behind: 235.00
Distance/in front: 95.50
Number/teeth: 9
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Distance 2: 127.00
Distance 3: 90.00
Distance in mm: 90.00
Rotation: CW
Total length mm: 332.50
Drive type: Steel
Product info: BN
Waterproof: Yes
Oil sealed: Yes
Remarks: Oil and waterproof.
Number/mounting holes: 3 (0)

Files

  • OEM
    A187597, azj3216, AZJ3236, C000900060210, cs1069, F032111885, 11.130.664, 11.130.695, 114799A1, 114800A1, 0001367019, 0001367072, 0001369007, 0001369019, 0001369025, 3283312, 3283812

  • Normalised article numbler
    a187597, azj3216, azj3236, c000900060210, cs1069, cst10339, drs0295, drs3947, f032111885, is0664, is0695, lrs01300, lrs02589, ms271, pbns3045, s0631s, str22106, 8ea015642521, 8ea737443001, 4534, 17307, 17307n, 101069, 114799a1, 114800a1, 252040, 254261, 0001367019, 0001367072, 0001369007, 0001369019, 0001369025, 3283312, 3283812, 11090204, 11130664, 11130695, 20513045, 600073092, 685017092, 685032092, 0986025443
  • Description
    Voltage: 12
    kW: 3.1
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance/behind: 235.00
    Distance/in front: 95.50
    Number/teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Distance 2: 127.00
    Distance 3: 90.00
    Distance in mm: 90.00
    Rotation: CW
    Total length mm: 332.50
    Drive type: Steel
    Product info: BN
    Waterproof: Yes
    Oil sealed: Yes
    Remarks: Oil and waterproof.
    Number/mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A187597, azj3216, AZJ3236, C000900060210, cs1069, F032111885, 11.130.664, 11.130.695, 114799A1, 114800A1, 0001367019, 0001367072, 0001369007, 0001369019, 0001369025, 3283312, 3283812

    • Normalised article numbler
      a187597, azj3216, azj3236, c000900060210, cs1069, cst10339, drs0295, drs3947, f032111885, is0664, is0695, lrs01300, lrs02589, ms271, pbns3045, s0631s, str22106, 8ea015642521, 8ea737443001, 4534, 17307, 17307n, 101069, 114799a1, 114800a1, 252040, 254261, 0001367019, 0001367072, 0001369007, 0001369019, 0001369025, 3283312, 3283812, 11090204, 11130664, 11130695, 20513045, 600073092, 685017092, 685032092, 0986025443
