Article no.: F032112026

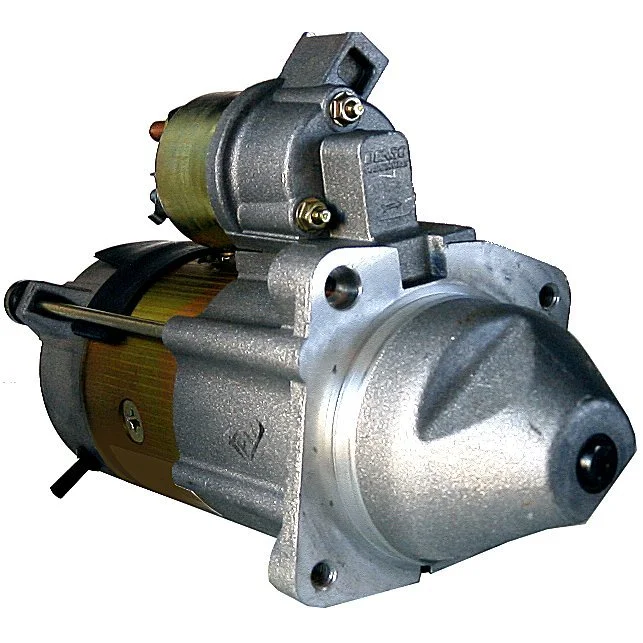

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.6, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.6
Mounting flange: 81.50
Drive distance: 23.00
Mounting hole 3 mm: M8
Distance/ rear: 209.00
Distance/ front: 65.00
Number/ teeth: 9
B+: M8
Position/ B+: 60
Position/ 50: 20
Terminal 50: M6
Gear type: GR
Distance 2: 82.50
Distance 3: 82.50
Distance mm: 116.00
Rotation: CW
Total length mm: 276.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/ mounting holes: 3 (3)

Files

  • OEM
    cs1109, F032112026, K1319555080, K1331329080, 46208436, 46231646, 63114014, 71721242, 71782324, 131955508, 1319555080, 1331329080, 063114014000, 063114014010

  • Normalised article numbler
    bso7196, cs1109, cst30109, dendsn502, drs3557, dsn502, dsn582, f032112026, f042s0h036, k1319555080, k1331329080, lrt00188, ms666, qs2235, s4017, str52002, strh036, 8ea011610931, 8ea737526001, 4563, 5802y9, 5802z1, 33224n, 33224r, 101109, 220158, 220158a, 252232, 438392, 438497, 438515, 726132, 8080022, 46208436, 46231646, 063114014, 63114014, 71721242, 71782324, 131955508, 318068092, 0986021041, 1319555080, 1331329080, 063114014000, 063114014010, 944280800220
  • Description
    Voltage: 12
    kW: 2.6
    Mounting flange: 81.50
    Drive distance: 23.00
    Mounting hole 3 mm: M8
    Distance/ rear: 209.00
    Distance/ front: 65.00
    Number/ teeth: 9
    B+: M8
    Position/ B+: 60
    Position/ 50: 20
    Terminal 50: M6
    Gear type: GR
    Distance 2: 82.50
    Distance 3: 82.50
    Distance mm: 116.00
    Rotation: CW
    Total length mm: 276.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/ mounting holes: 3 (3)

    Files

  • Suitable for these vehicles

    • OEM
      cs1109, F032112026, K1319555080, K1331329080, 46208436, 46231646, 63114014, 71721242, 71782324, 131955508, 1319555080, 1331329080, 063114014000, 063114014010

    • Normalised article numbler
      bso7196, cs1109, cst30109, dendsn502, drs3557, dsn502, dsn582, f032112026, f042s0h036, k1319555080, k1331329080, lrt00188, ms666, qs2235, s4017, str52002, strh036, 8ea011610931, 8ea737526001, 4563, 5802y9, 5802z1, 33224n, 33224r, 101109, 220158, 220158a, 252232, 438392, 438497, 438515, 726132, 8080022, 46208436, 46231646, 063114014, 63114014, 71721242, 71782324, 131955508, 318068092, 0986021041, 1319555080, 1331329080, 063114014000, 063114014010, 944280800220
