Article no.: F032112034

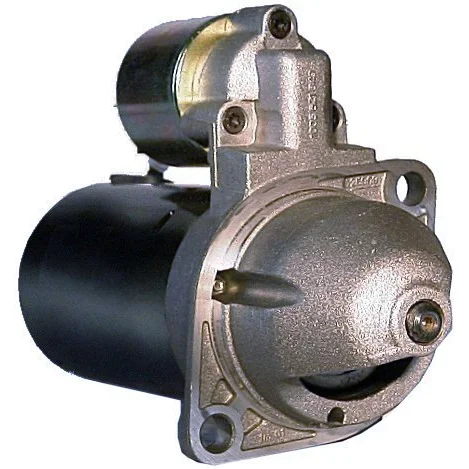

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CCW

Description

Voltage: 12
kW: 1.7
Mounting flange: 76.20
Drive distance: 27.00
Mounting hole 2 mm: 10.70
Mounting hole 1 mm: 10.70
Distance / back: 191.00
Distance / front: 32.50
Number / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Distance / mm: 105.00
Rotation: CCW
Total length mm: 233.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    AZE2636, F032112034, 11.131.157, 1986S00763, 54058, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435

  • Normalised article numbler
    aze2636, bso7174, cst10174, cst21130, cst21134, drs8070n, f032112034, is1045, lrs01272, lrs01276, ms252, s0209, s9094letrika, sbo0254, str22121, 8ea015642021, 1986s00763, 8569, 11545, 18369, 18369n, 18470, 21902bo, 54058, 251466, 251473, 251485, 254003, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 8018070, 11018070, 11131157, 42018070, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435, 600019092, 681010092, 0986018070
  • Description
    Voltage: 12
    kW: 1.7
    Mounting flange: 76.20
    Drive distance: 27.00
    Mounting hole 2 mm: 10.70
    Mounting hole 1 mm: 10.70
    Distance / back: 191.00
    Distance / front: 32.50
    Number / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance / mm: 105.00
    Rotation: CCW
    Total length mm: 233.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AZE2636, F032112034, 11.131.157, 1986S00763, 54058, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435

    • Normalised article numbler
      aze2636, bso7174, cst10174, cst21130, cst21134, drs8070n, f032112034, is1045, lrs01272, lrs01276, ms252, s0209, s9094letrika, sbo0254, str22121, 8ea015642021, 1986s00763, 8569, 11545, 18369, 18369n, 18470, 21902bo, 54058, 251466, 251473, 251485, 254003, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 8018070, 11018070, 11131157, 42018070, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435, 600019092, 681010092, 0986018070
