Article no.: F032112036

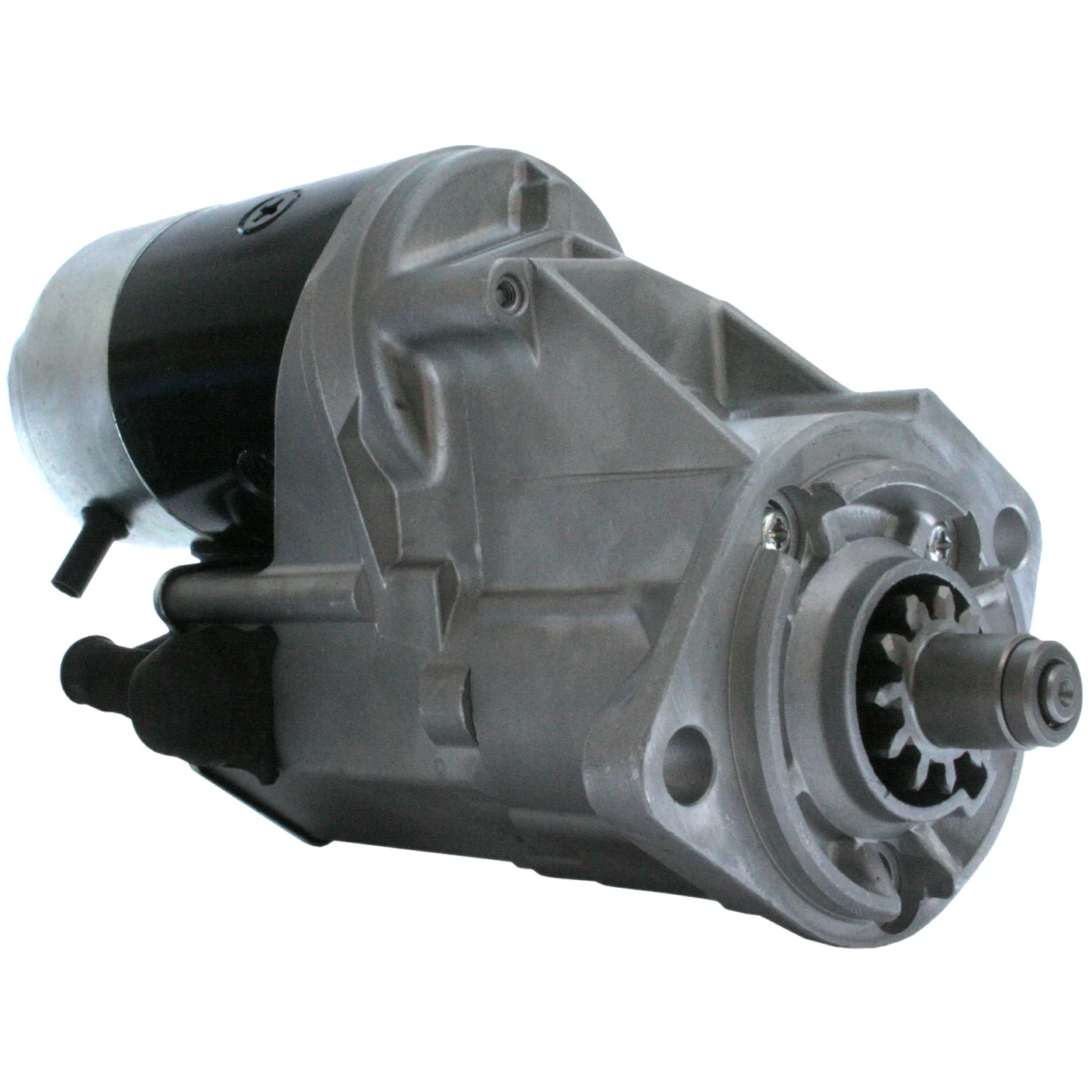

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mount. flange: 90.00
Drive dist.: 16.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 193.00
Dist./front: 41.50
No./teeth: 11
B+: M10
Position/50: 35
Terminal 50: M5
Gear type: GR
Dist. mm: 112.50
Rotation: CW
Total length mm: 291.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
No./mount. holes: 2 (0)

Files

  • OEM
    F032112036, 28100-40291-71, 28300-23040, 28300-23040-71, 128000-0970, 128000-0971, 128000-0972, 128000-0973, 128000-0974, 128000-4110, 128000-4111, 128000-4112, 128000-4113, 3049479

  • Normalised article numbler
    ats208, cst40127, dsn2111, dsn2112, f032112036, lrs01447, s6117, str6073, 8ea015642041, 17290n, 17311, 17311n, 252373, 254056, 3049479, 8213373, 11040824, 635004112, 1280000970, 1280000971, 1280000972, 1280000973, 1280000974, 1280004110, 1280004111, 1280004112, 1280004113, 2830023040, 281004029171, 283002304071
  • Description
    Voltage: 12
    kW: 2.5
    Mount. flange: 90.00
    Drive dist.: 16.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 193.00
    Dist./front: 41.50
    No./teeth: 11
    B+: M10
    Position/50: 35
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 112.50
    Rotation: CW
    Total length mm: 291.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112036, 28100-40291-71, 28300-23040, 28300-23040-71, 128000-0970, 128000-0971, 128000-0972, 128000-0973, 128000-0974, 128000-4110, 128000-4111, 128000-4112, 128000-4113, 3049479

    • Normalised article numbler
      ats208, cst40127, dsn2111, dsn2112, f032112036, lrs01447, s6117, str6073, 8ea015642041, 17290n, 17311, 17311n, 252373, 254056, 3049479, 8213373, 11040824, 635004112, 1280000970, 1280000971, 1280000972, 1280000973, 1280000974, 1280004110, 1280004111, 1280004112, 1280004113, 2830023040, 281004029171, 283002304071
