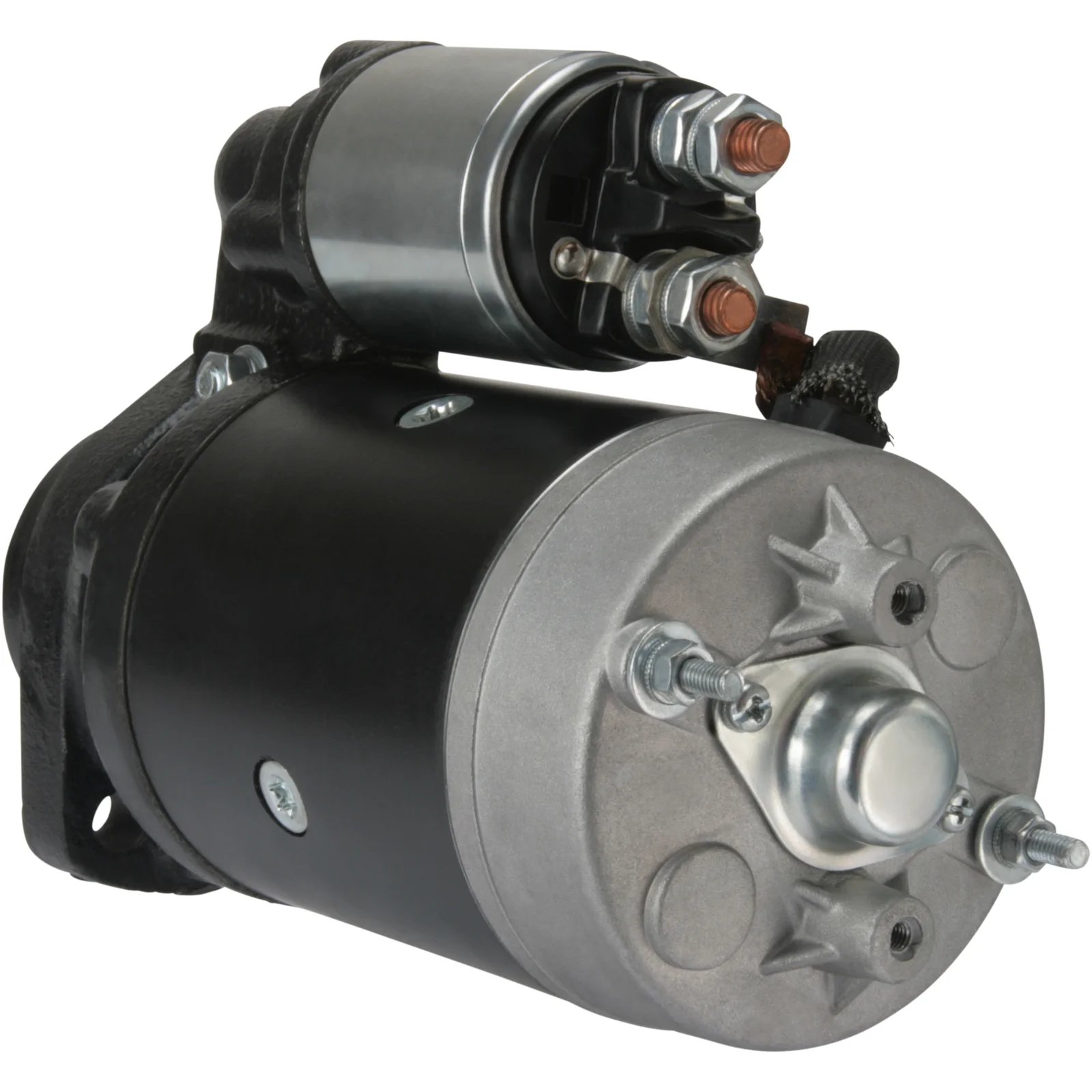

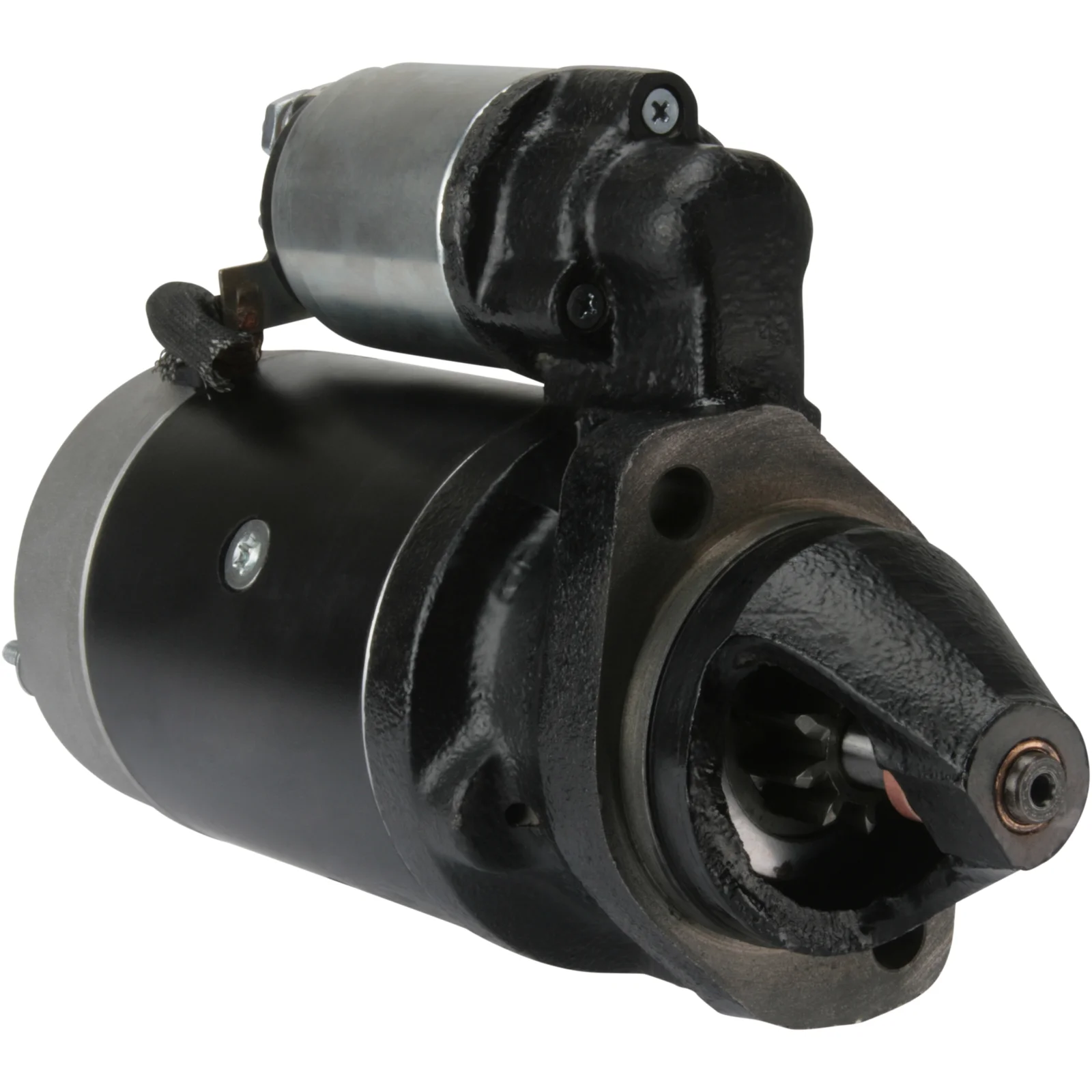

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112039

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.7
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 2 mm: 13.50
Mounting hole 1 mm: 13.50
Distance / back: 220.00
Distance / front: 67.00
Number / teeth: 9
B+: M10
Thread length mm: 10.00
Position / 50: 15
Terminal 50: M4
Gear type: DD
Distributor / mm: 105.00
Rotation: CW
Total length mm: 298.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    A0011511301, A0011516001, azj0101, azj3123, AZJ3192, azj3551, C830100008000, CT6005706625, F032112039, F139900060, f139900060011, mt71gb, 11.130.008, 11.130.247, 11.130.432, 11.130.612, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 0011511301, 0011516001, 12153840, 35532038F, 58400070, 58400450, 63217158, 0855159400, 0855787900, 1142566685, 2130090013, 6005706625, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050

  • Normalised article numbler
    a0011511301, a0011516001, azj0101, azj3123, azj3192, azj3551, c830100008000, cst10166, cst21152, ct6005706625, drs7310, f032112039, f139900060, f139900060011, is0432, is0612, lrs00956, ms190, ms313, mt71gb, s0657s, s9196letrika, str22065, 8757, 33339, 33560, 220268, 220268a, 220912, 220912a, 250072, 251415, 254007, 255177, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 11017310, 11130008, 11130247, 11130432, 11130612, 0011511301, 0011516001, 12153840, 35532038f, 58400070, 58400450, 063217158, 63217158, 325002092, 600048092, 625002092, 0855159400, 0855787900, 0986017310, 1142566685, 2130090013, 6005706625, 063217158010, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050
  • Description
    Voltage: 12
    kW: 2.7
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 2 mm: 13.50
    Mounting hole 1 mm: 13.50
    Distance / back: 220.00
    Distance / front: 67.00
    Number / teeth: 9
    B+: M10
    Thread length mm: 10.00
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Distributor / mm: 105.00
    Rotation: CW
    Total length mm: 298.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A0011511301, A0011516001, azj0101, azj3123, AZJ3192, azj3551, C830100008000, CT6005706625, F032112039, F139900060, f139900060011, mt71gb, 11.130.008, 11.130.247, 11.130.432, 11.130.612, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 0011511301, 0011516001, 12153840, 35532038F, 58400070, 58400450, 63217158, 0855159400, 0855787900, 1142566685, 2130090013, 6005706625, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050

    • Normalised article numbler
      a0011511301, a0011516001, azj0101, azj3123, azj3192, azj3551, c830100008000, cst10166, cst21152, ct6005706625, drs7310, f032112039, f139900060, f139900060011, is0432, is0612, lrs00956, ms190, ms313, mt71gb, s0657s, s9196letrika, str22065, 8757, 33339, 33560, 220268, 220268a, 220912, 220912a, 250072, 251415, 254007, 255177, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 11017310, 11130008, 11130247, 11130432, 11130612, 0011511301, 0011516001, 12153840, 35532038f, 58400070, 58400450, 063217158, 63217158, 325002092, 600048092, 625002092, 0855159400, 0855787900, 0986017310, 1142566685, 2130090013, 6005706625, 063217158010, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050
