HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112240

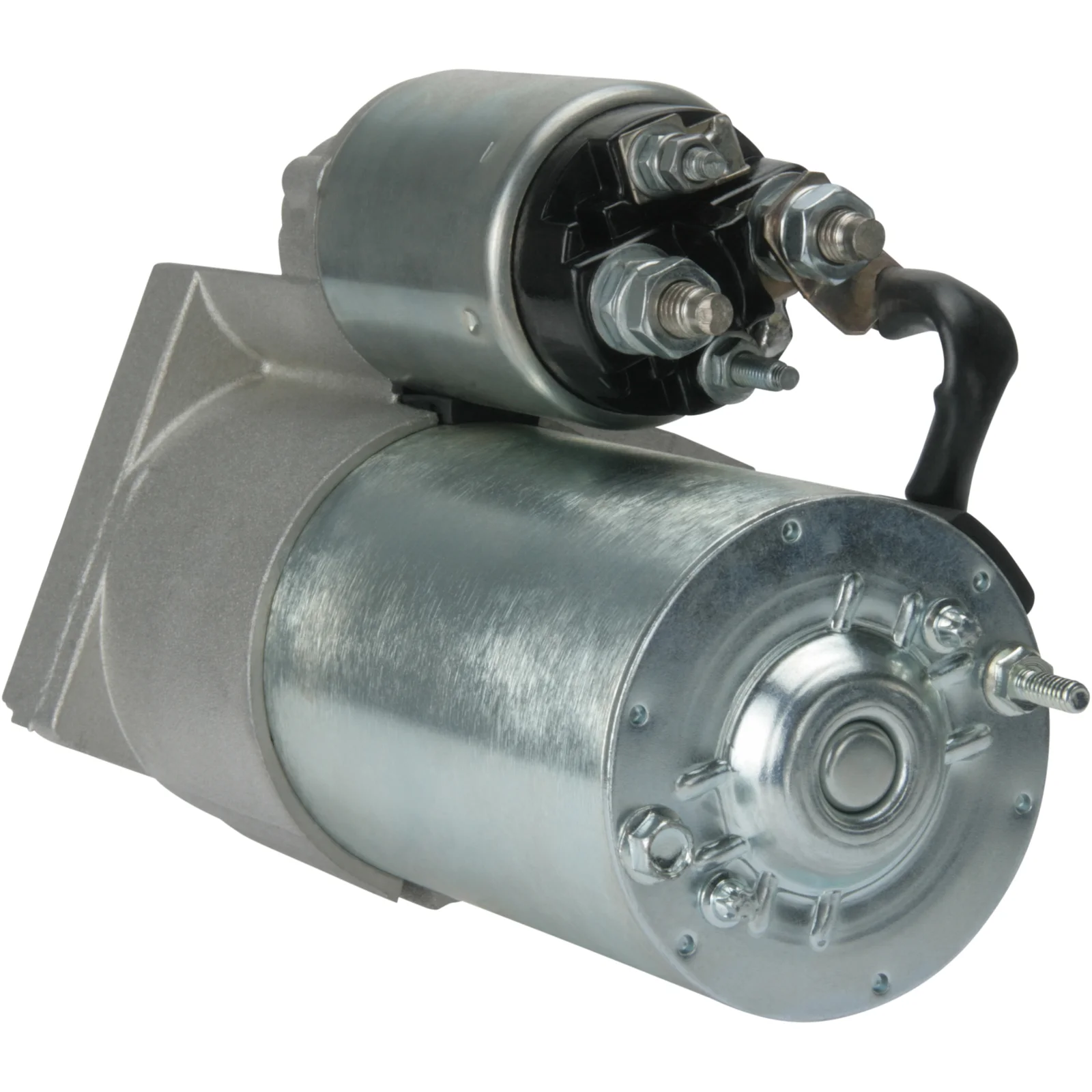

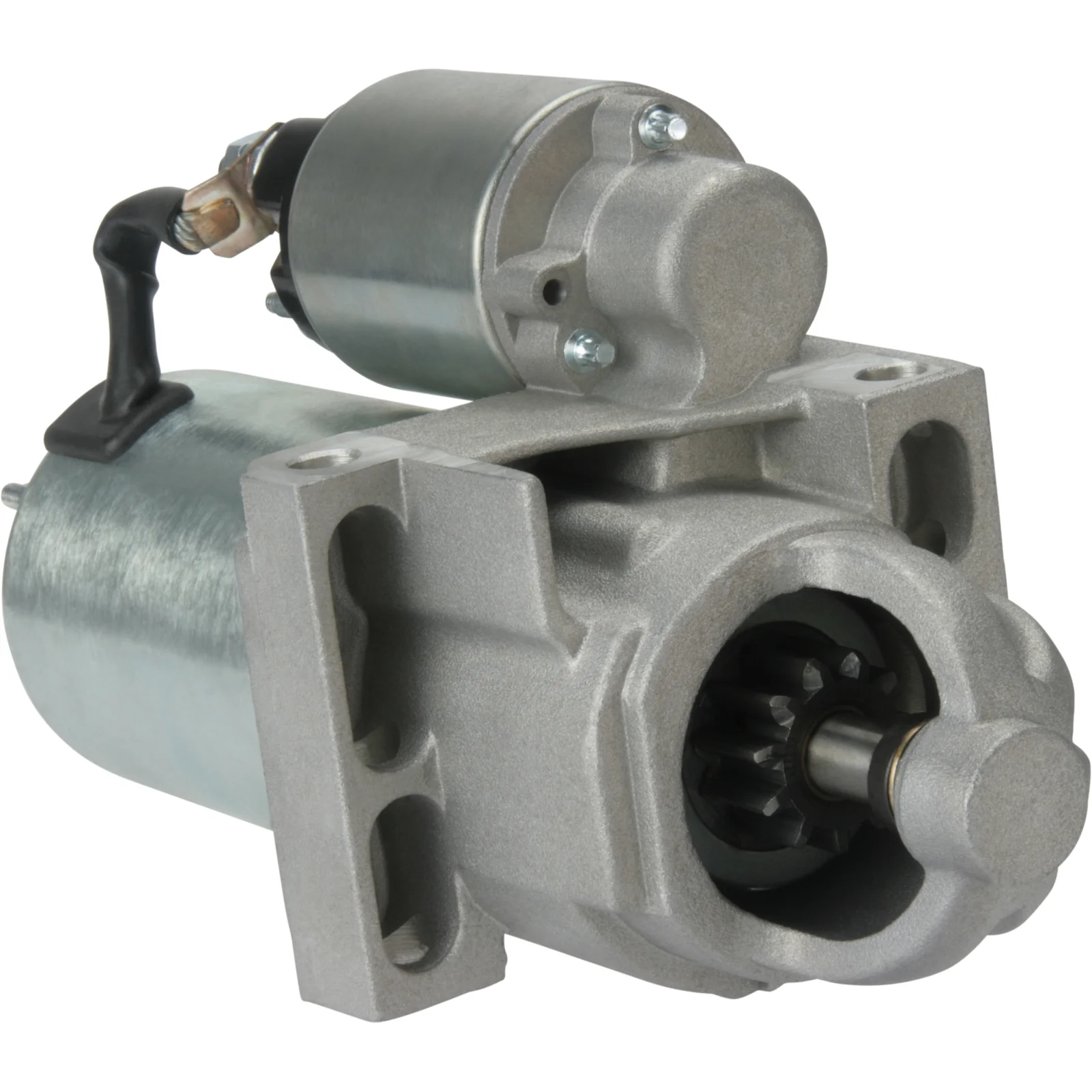

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.7, No./teeth: 11, Rotation: CW

Description

GM Starter motor 94> 5.7L/7.4L, 11k 12V - 1.7kW, 11 gears, 3 terminals 12V - 1.7kW, Marine type 4 terminals = ST-6562 For Yourex product order ST-6449

Voltage: 12
kW: 1.7
Drive distance: 19.00
Distance/backup: 188.00
Distance/front: 58.00
Number/teeth: 11
B+: M8
Position/50: 55
Terminal 50: M5
Gear type: GR
Distance mm: 82.50
Rotation: CW
Total length mm: 245.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: PG260M.
Number/mounting holes: 2 (0)

Files

  • OEM
    F032112240, 323-1459, 323-485, 9000786, 9000860, 9000879, 9000899, 10465167, 10465554, 12564108, 8104651670

  • Normalised article numbler
    f032112240, f042003022, f042s03022, s1004, s1008, s1246s, s1248s, sdr0019, str2603, 6449, 6449n, 6449nm, 6449r, 21690dr, 21690dr1, 21690dr2, 22143dr, 22143dr2, 50186, 252318, 323485, 601029, 3231459, 9000786, 9000860, 9000879, 9000899, 10465167, 10465554, 12564108, 130401114, 634027112, 8104651670
  • Description
    GM Starter motor 94> 5.7L/7.4L, 11k 12V - 1.7kW, 11 gears, 3 terminals 12V - 1.7kW, Marine type 4 terminals = ST-6562 For Yourex product order ST-6449

    Voltage: 12
    kW: 1.7
    Drive distance: 19.00
    Distance/backup: 188.00
    Distance/front: 58.00
    Number/teeth: 11
    B+: M8
    Position/50: 55
    Terminal 50: M5
    Gear type: GR
    Distance mm: 82.50
    Rotation: CW
    Total length mm: 245.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: PG260M.
    Number/mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112240, 323-1459, 323-485, 9000786, 9000860, 9000879, 9000899, 10465167, 10465554, 12564108, 8104651670

    • Normalised article numbler
      f032112240, f042003022, f042s03022, s1004, s1008, s1246s, s1248s, sdr0019, str2603, 6449, 6449n, 6449nm, 6449r, 21690dr, 21690dr1, 21690dr2, 22143dr, 22143dr2, 50186, 252318, 323485, 601029, 3231459, 9000786, 9000860, 9000879, 9000899, 10465167, 10465554, 12564108, 130401114, 634027112, 8104651670
