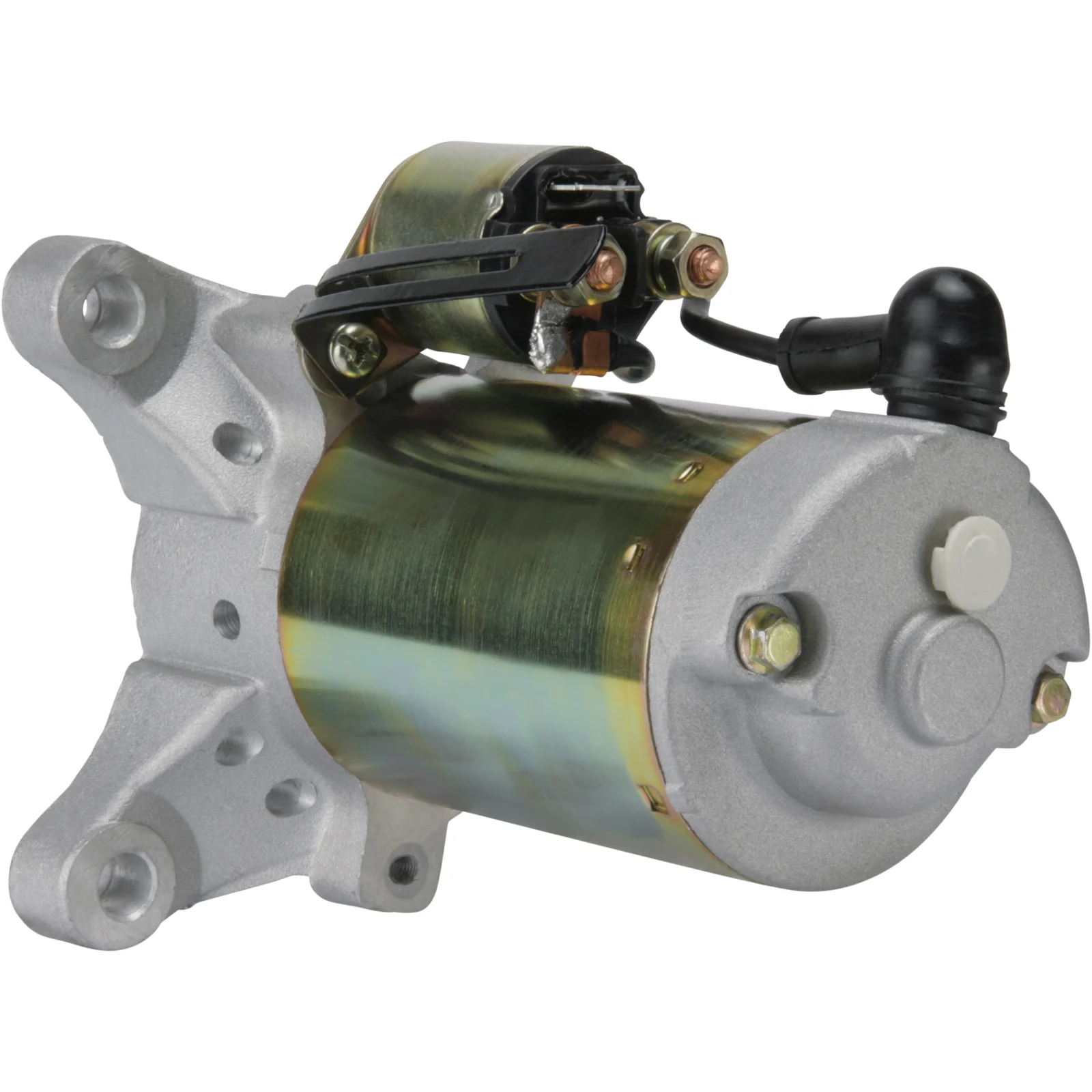

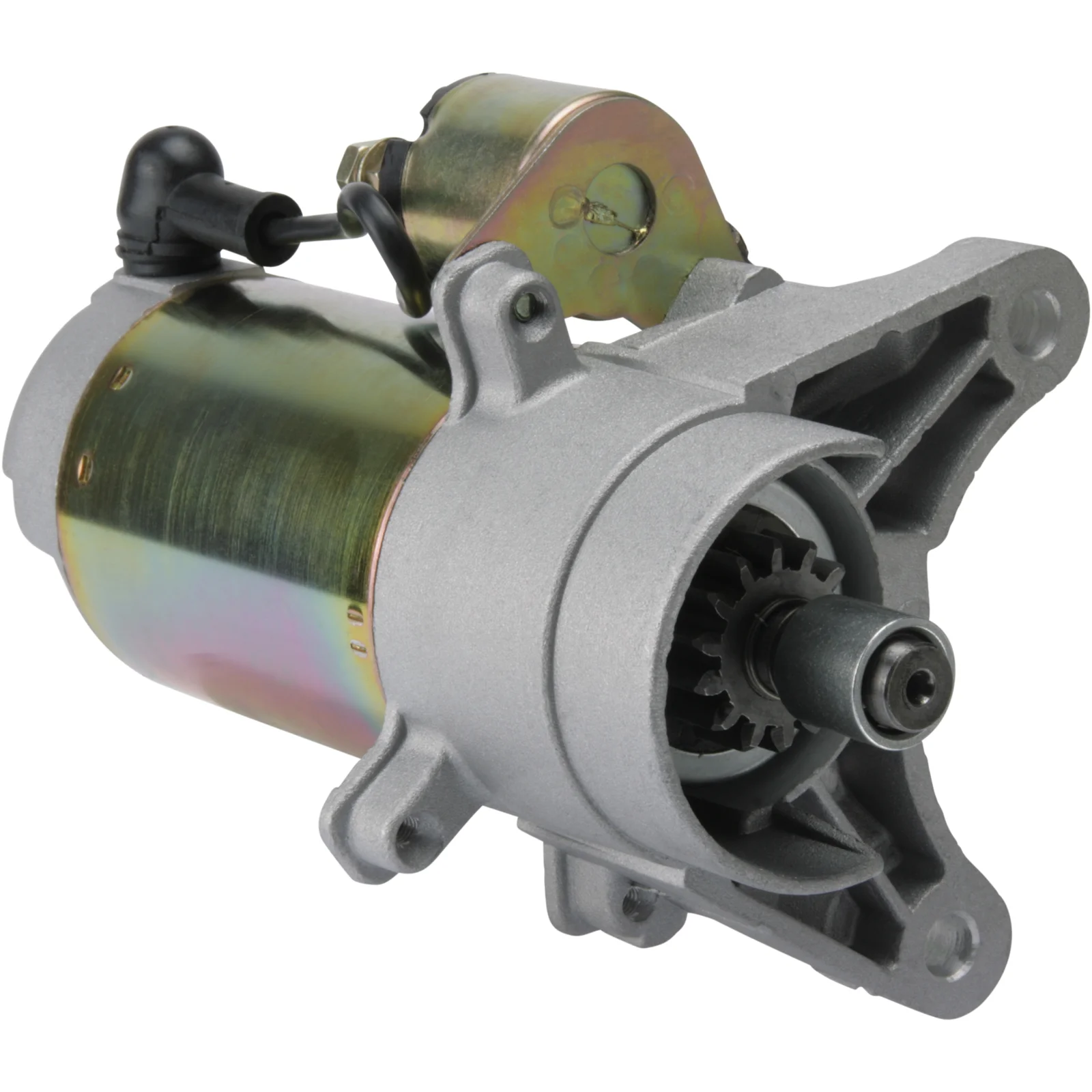

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112246

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.6, No./teeth: 14, Rotation: CCW

Description

Voltage: 12
kW: 0.6
Mounting flange: 62.50
Drive distance: 10.00
Mounting hole 2 mm: 8.70
Mounting hole 1 mm: 8.70
Distance/backup: 152.50
Distance/front: 39.00
Number/teeth: 14
B+: M6
Thread length mm: 6.50
Position/50: 60
Terminal 50: 6.30
Gear type: DD
Distance mm: 91.00
Rotation: CCW
Total length mm: 193.00
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: Alternator: HC-CARGO 133711.
Number/mounting holes: 2 (0)

Files

  • OEM
    DB5DP, DB5X2, F032112246, 028000-6110, 028000-6111, 028000-8410, 028000-8411, 31100-za1-0030, 31200-ZA1-0030, 31200-ZE8-801, 31200-ze8-8010, 128000-2950, 128000-4600, 128000-4601, 128000-5290

  • Normalised article numbler
    cst40260, db5dp, db5x2, drs0586, f032112246, lrs01149, lrs02278, snd0081, str30031, 18350, 18350n, 31100za10030, 31200za10030, 31200ze8801, 31200ze88010, 251113, 254476, 91295397, 120021142, 0280006110, 0280006111, 0280008410, 0280008411, 622004142, 1280002950, 1280004600, 1280004601, 1280005290
  • Description
    Voltage: 12
    kW: 0.6
    Mounting flange: 62.50
    Drive distance: 10.00
    Mounting hole 2 mm: 8.70
    Mounting hole 1 mm: 8.70
    Distance/backup: 152.50
    Distance/front: 39.00
    Number/teeth: 14
    B+: M6
    Thread length mm: 6.50
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD
    Distance mm: 91.00
    Rotation: CCW
    Total length mm: 193.00
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Alternator: HC-CARGO 133711.
    Number/mounting holes: 2 (0)
