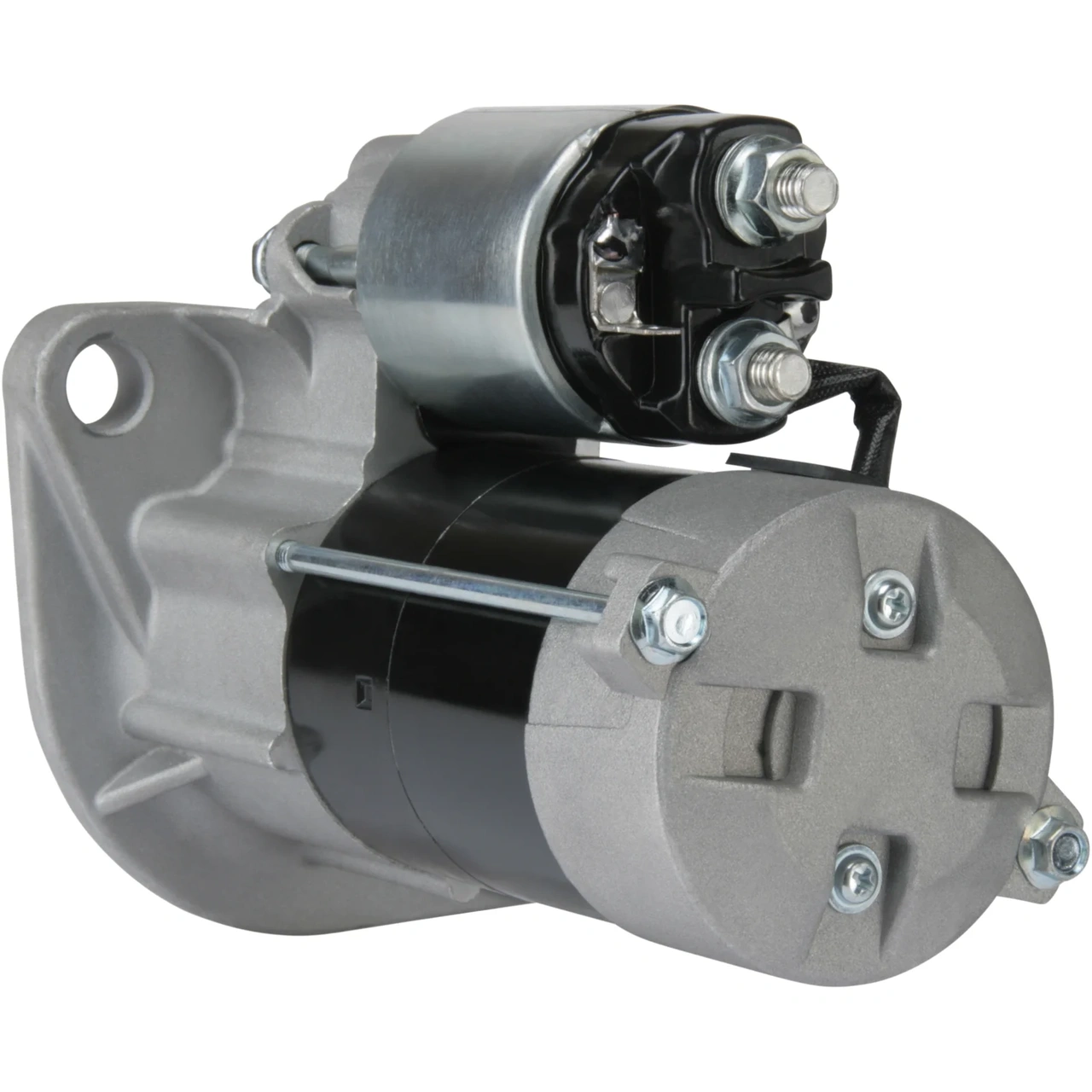

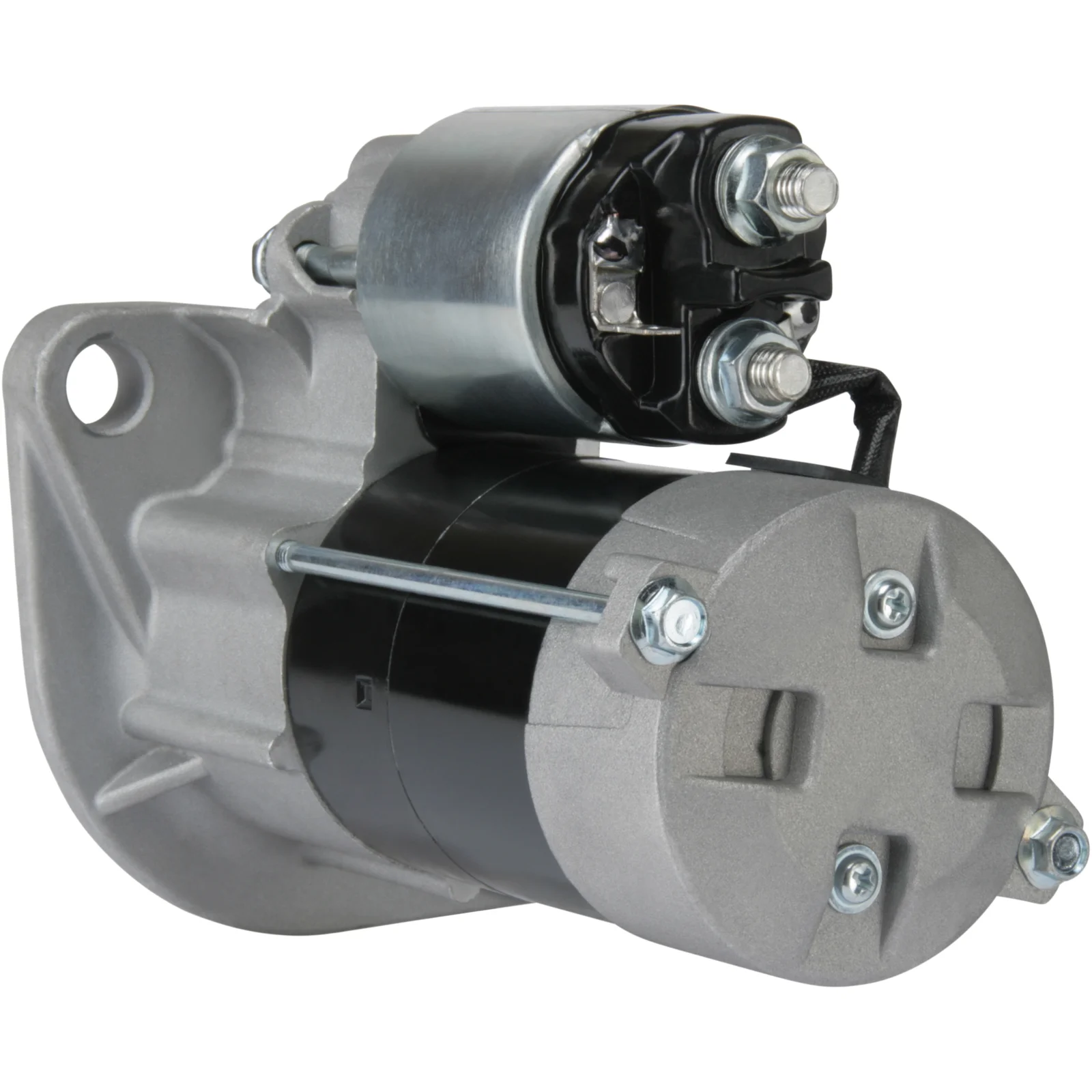

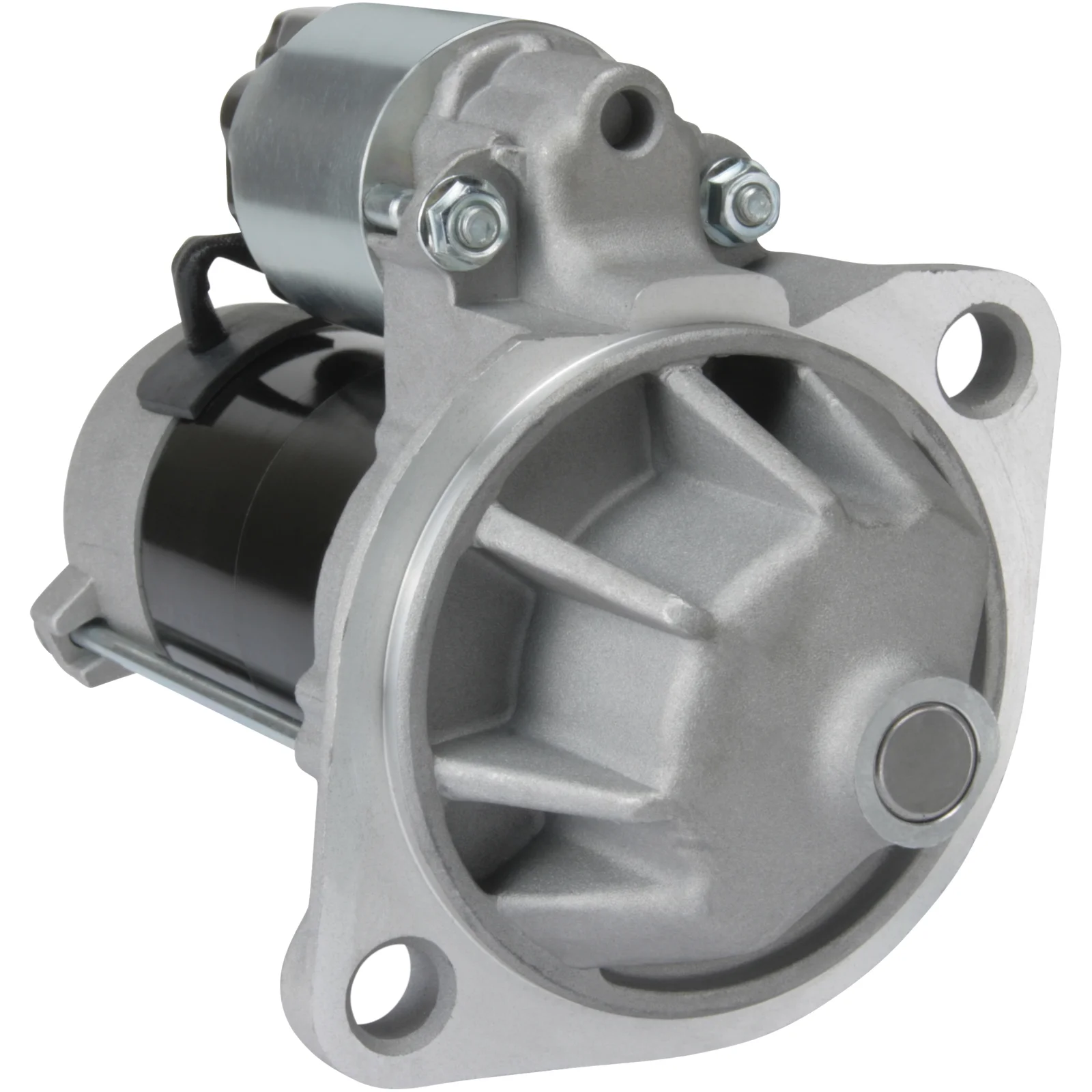

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112291

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mounting flange: 95.00
Drive distance: 20.50
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 159.00
Distance / front: 54.00
Number / teeth: 9
B+: M8
Position / B+: 60
Position / 50: 45
Terminal 50: 6.30
Gear type: GR
Distance mm: 120.00
Rotation: CW
Total length mm: 213.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032112291, S114-624, 119255-77010, 228000-5750

  • Normalised article numbler
    cst40160, f032112291, lrs01561, s114624, s2060, str72038, 19749, 253058, 254051, 980514092, 2280005750, 11925577010
  • Description
    Voltage: 12
    kW: 0.9
    Mounting flange: 95.00
    Drive distance: 20.50
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 159.00
    Distance / front: 54.00
    Number / teeth: 9
    B+: M8
    Position / B+: 60
    Position / 50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance mm: 120.00
    Rotation: CW
    Total length mm: 213.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112291, S114-624, 119255-77010, 228000-5750

    • Normalised article numbler
      cst40160, f032112291, lrs01561, s114624, s2060, str72038, 19749, 253058, 254051, 980514092, 2280005750, 11925577010
