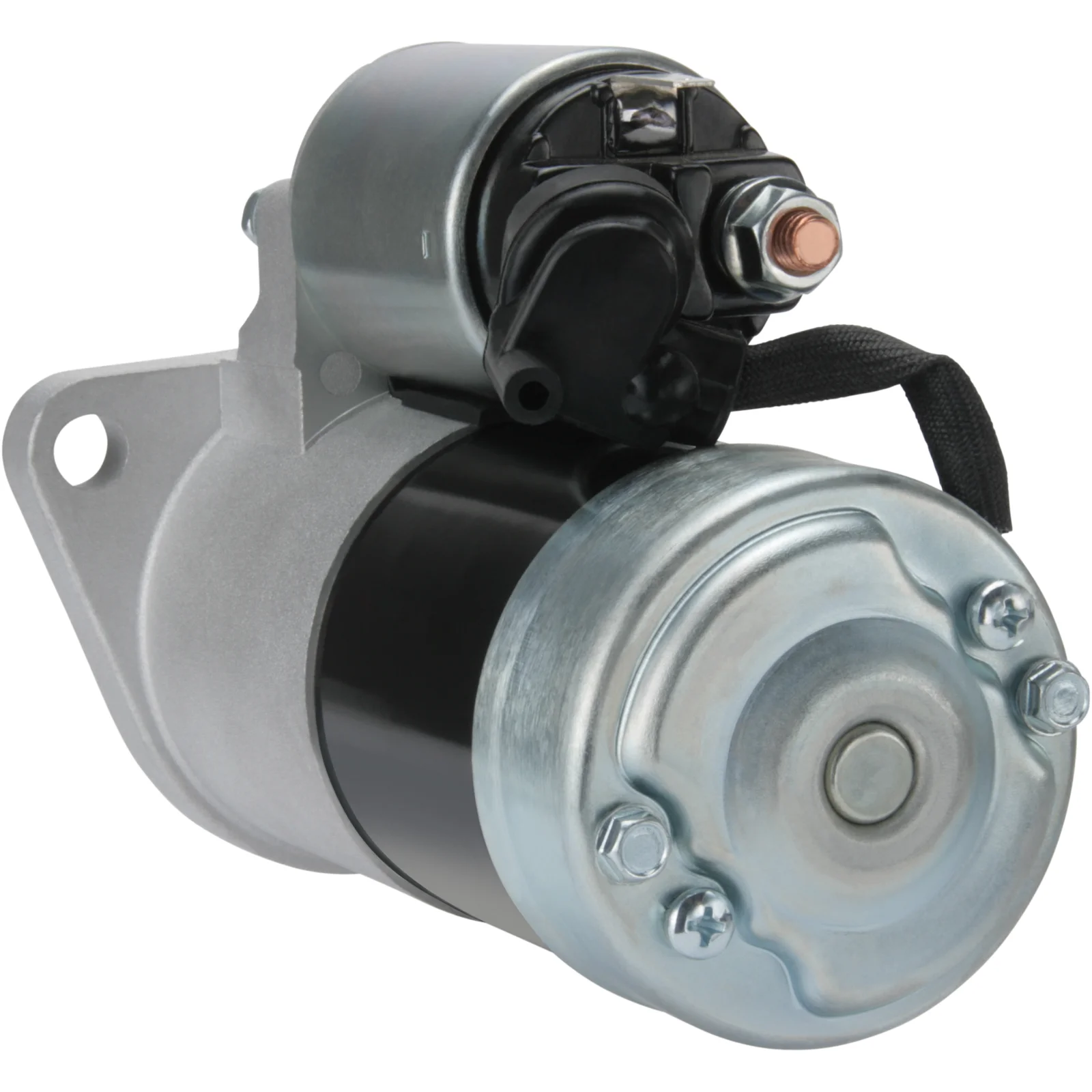

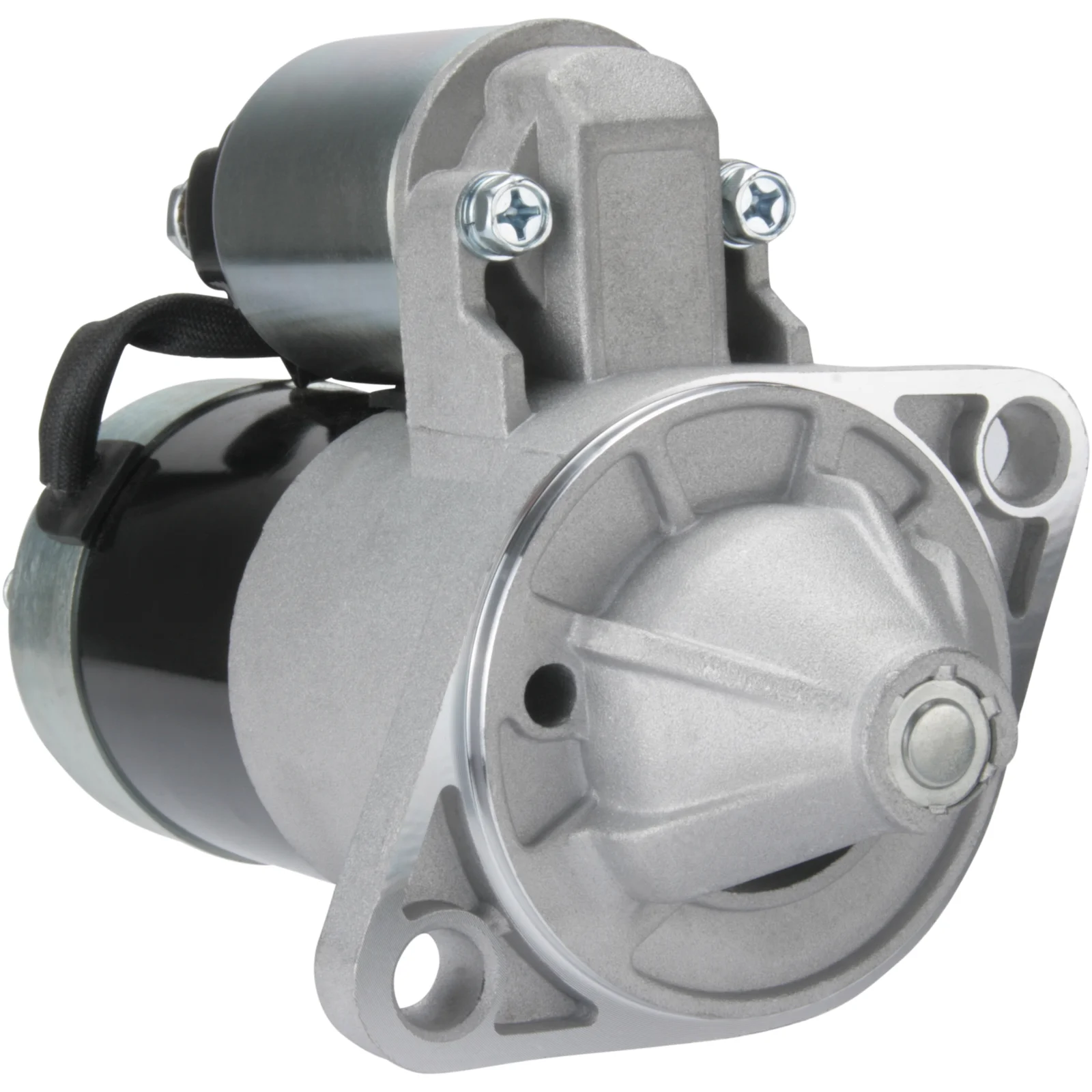

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112296

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.0
Mounting flange: 82.00
Drive distance: 7.00
Mounting hole 2 mm: 11.50
Mounting hole 1 mm: 11.50
Distance/back: 161.50
Distance/front: 42.00
Number of teeth: 9
B+: M8
Position/50: 60
Terminal 50: 6.30
Gear type: DD/GR
Distance mm: 110.00
Rotation: CW
Total length mm: 206.50
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Info: Not oilproof.
Number of mounting holes: 2 (0)

Files

  • OEM
    F032112296, s114-134, s114-194, 104211-77010, 104211-77011, 114211-77010

  • Normalised article numbler
    cst20171, f032112296, lrs02185, s114134, s114194, s2062, sfd0006, str23001, 6648r, 16191, 16191n, 21884fd1, 33872, 250243, 91025856, 682002092, 10421177010, 10421177011, 11421177010
  • Description
    Voltage: 12
    kW: 1.0
    Mounting flange: 82.00
    Drive distance: 7.00
    Mounting hole 2 mm: 11.50
    Mounting hole 1 mm: 11.50
    Distance/back: 161.50
    Distance/front: 42.00
    Number of teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: 6.30
    Gear type: DD/GR
    Distance mm: 110.00
    Rotation: CW
    Total length mm: 206.50
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Info: Not oilproof.
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112296, s114-134, s114-194, 104211-77010, 104211-77011, 114211-77010

    • Normalised article numbler
      cst20171, f032112296, lrs02185, s114134, s114194, s2062, sfd0006, str23001, 6648r, 16191, 16191n, 21884fd1, 33872, 250243, 91025856, 682002092, 10421177010, 10421177011, 11421177010
