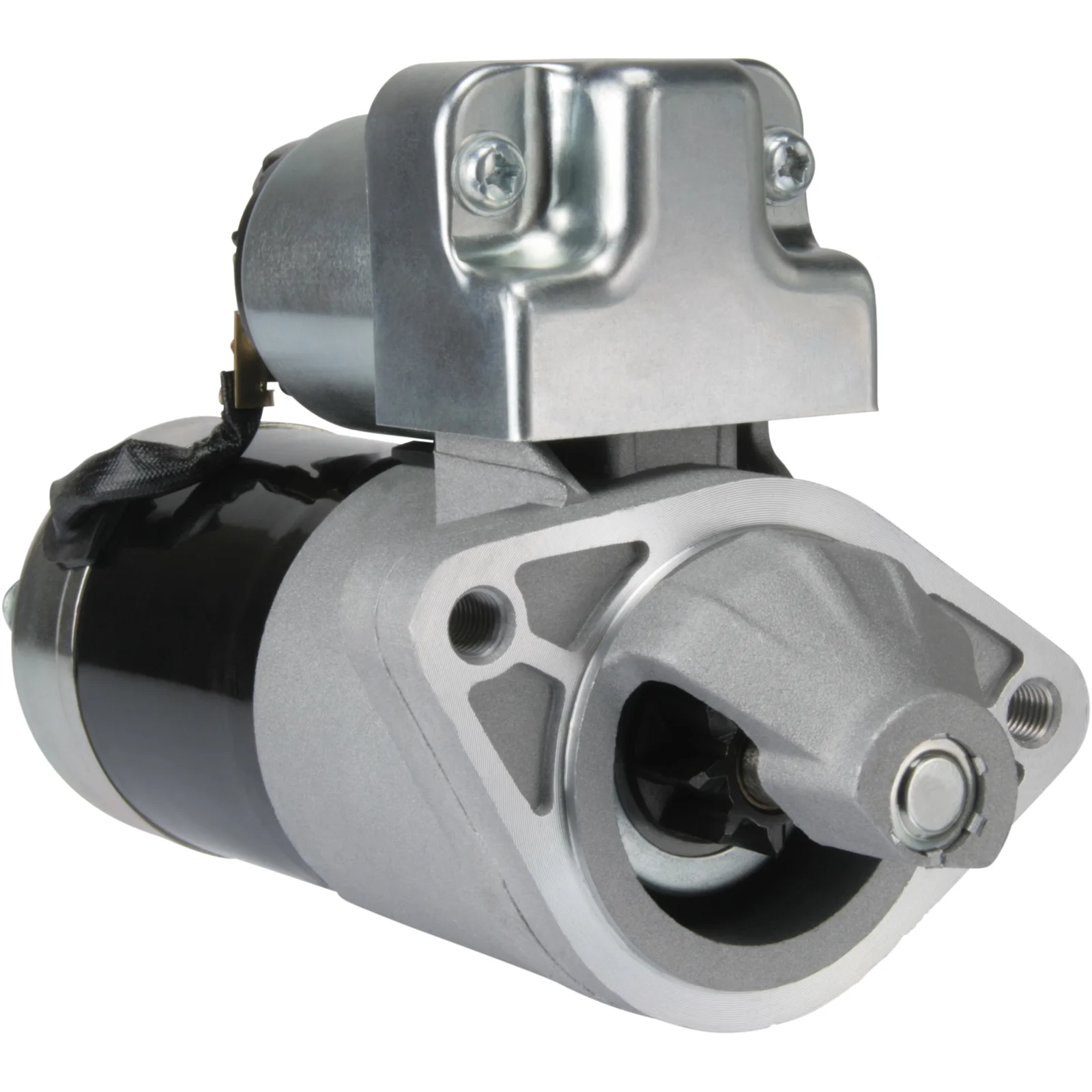

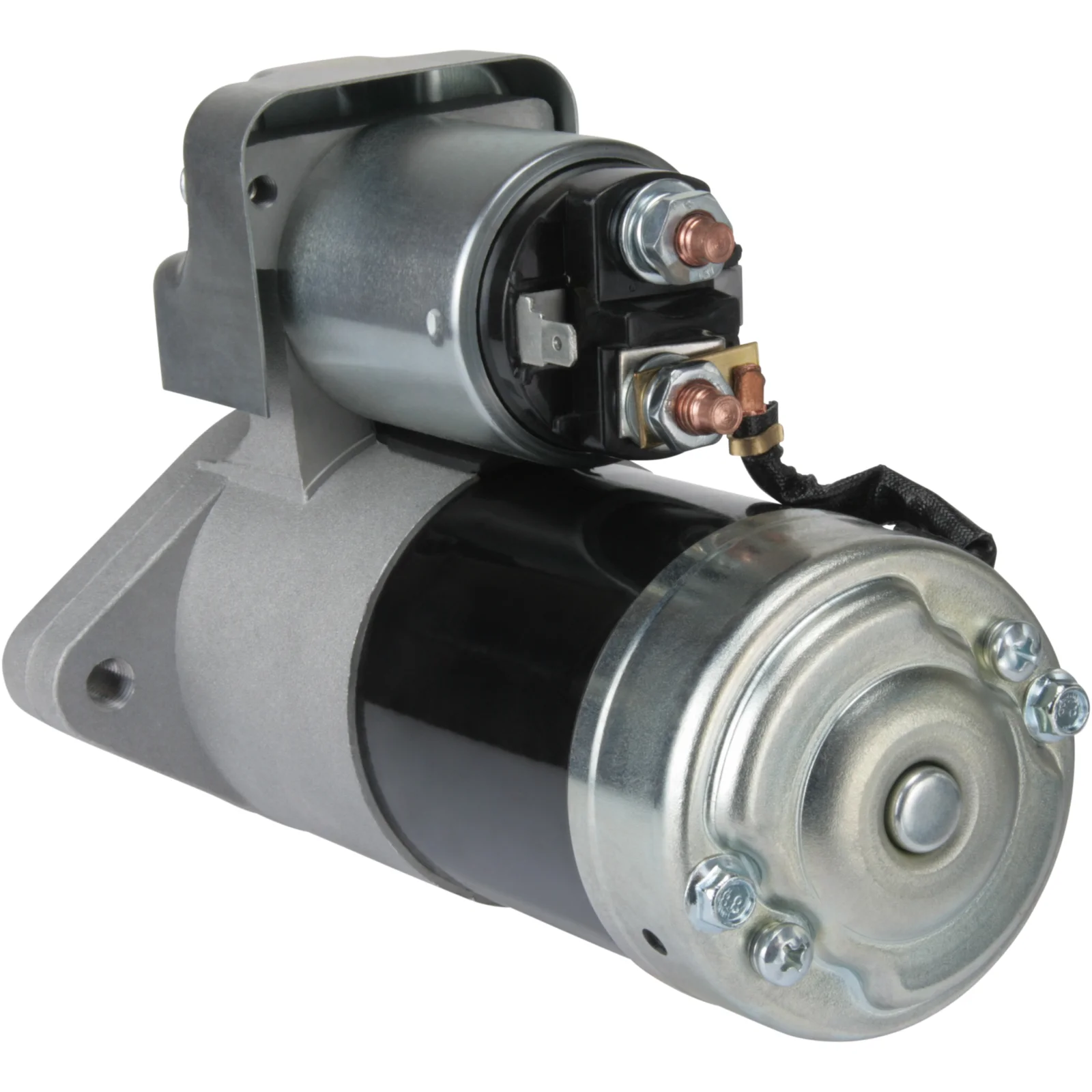

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112300

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mount. flange: 66.00
Drive dist.: 4.50
Dist./back: 163.50
Dist./front: 40.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 100.00
Rotation: CW
Total length mm: 208.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mounting holes: 2 (2)

Files

  • OEM
    F032112300, js1153, M000T85681, M000T85681ZC, M000T85881, M001T76481, M001T79581, M001T86181, m0t85681, M0T85681ZC, m0t85881, m1t76481, m1t79581, M1T86181, 1A5018400, 6840, 31100-65da0, 31100-67D10, 31100-67D20, 31100-77e10, 31100-77E10-000, 31100-77E11, 31100-77E11-000, 31100-77e20, 31100-77E20-000, 31100-77e22

  • Normalised article numbler
    cst35138, drs3885, f032112300, f042001100, f042s01100, j5218014, js1153, m000t85681, m000t85681zc, m000t85881, m001t76481, m001t79581, m001t86181, m0t85681, m0t85681zc, m0t85881, m1t76481, m1t79581, m1t86181, s5139, s8770, sj0081r, str3514, str71064, 1a5018400, 8ea737741001, 6840, 17686, 17783, 17783n, 21991mi, 104755, 105363, 201153, 220597, 220597a, 252150, 458577, 3110065da0, 3110067d10, 3110067d20, 3110077e10, 3110077e10000, 3110077e11, 3110077e11000, 3110077e20, 3110077e20000, 3110077e22, 8212393, 11040626, 345015082, 345016082, 0986020501
  • Description
    Voltage: 12
    kW: 1.4
    Mount. flange: 66.00
    Drive dist.: 4.50
    Dist./back: 163.50
    Dist./front: 40.00
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 100.00
    Rotation: CW
    Total length mm: 208.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032112300, js1153, M000T85681, M000T85681ZC, M000T85881, M001T76481, M001T79581, M001T86181, m0t85681, M0T85681ZC, m0t85881, m1t76481, m1t79581, M1T86181, 1A5018400, 6840, 31100-65da0, 31100-67D10, 31100-67D20, 31100-77e10, 31100-77E10-000, 31100-77E11, 31100-77E11-000, 31100-77e20, 31100-77E20-000, 31100-77e22

    • Normalised article numbler
      cst35138, drs3885, f032112300, f042001100, f042s01100, j5218014, js1153, m000t85681, m000t85681zc, m000t85881, m001t76481, m001t79581, m001t86181, m0t85681, m0t85681zc, m0t85881, m1t76481, m1t79581, m1t86181, s5139, s8770, sj0081r, str3514, str71064, 1a5018400, 8ea737741001, 6840, 17686, 17783, 17783n, 21991mi, 104755, 105363, 201153, 220597, 220597a, 252150, 458577, 3110065da0, 3110067d10, 3110067d20, 3110077e10, 3110077e10000, 3110077e11, 3110077e11000, 3110077e20, 3110077e20000, 3110077e22, 8212393, 11040626, 345015082, 345016082, 0986020501
