Article no.: F032112365

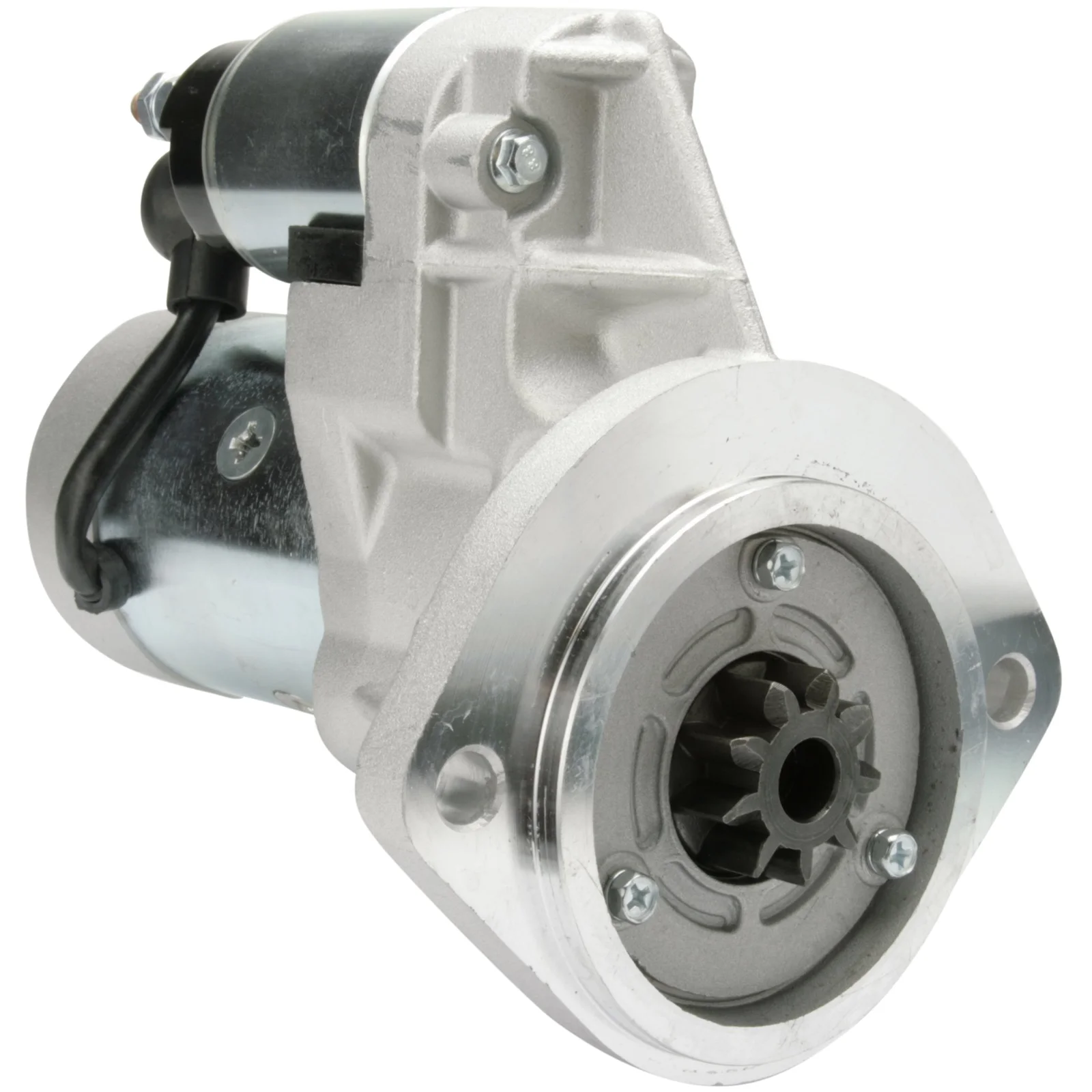

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mount. flange: 95.00
Drive dist.: 10.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 214.00
Dist./front: 10.50
No./teeth: 9
B+: M8
Position/50: 53
Terminal 50: 6.30
Gear type: GR
Dist. mm: 119.00
Rotation: CW
Total length mm: 224.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)

Files

  • OEM
    dsr1167l, F032112365, js1159, s13-122, s13-126, s13-126a, s13-322, s13-326, 1986S00709, 1986S00917, 7383-10000, 23300-15900, 23300-1s900, 23300-54t00, 23300-90067, 23300-90069, 110566

  • Normalised article numbler
    cst20130, dendsn953, drs3856, drs3856n, drs3856x, dsr1167l, f032112365, f032us0070, f042s04063, f042s0h150, j5211073, js1159, lrs01343, s13122, s13126, s13126a, s13322, s13326, s2009, str6011, str6024, str72036, 8ea011350411, 8ea011611101, 8ea737806001, 1986s00709, 1986s00917, 9585, 30730n, 30730r, 104387, 110566, 201159, 203046, 220208, 220208a, 233001s900, 252153, 458896, 2330054t00, 8212699, 11040176, 11040753, 327081092, 738310000, 0986022690, 2330015900, 2330090067, 2330090069
  • Description
    Voltage: 12
    kW: 2.2
    Mount. flange: 95.00
    Drive dist.: 10.50
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 214.00
    Dist./front: 10.50
    No./teeth: 9
    B+: M8
    Position/50: 53
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 119.00
    Rotation: CW
    Total length mm: 224.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      dsr1167l, F032112365, js1159, s13-122, s13-126, s13-126a, s13-322, s13-326, 1986S00709, 1986S00917, 7383-10000, 23300-15900, 23300-1s900, 23300-54t00, 23300-90067, 23300-90069, 110566

    • Normalised article numbler
      cst20130, dendsn953, drs3856, drs3856n, drs3856x, dsr1167l, f032112365, f032us0070, f042s04063, f042s0h150, j5211073, js1159, lrs01343, s13122, s13126, s13126a, s13322, s13326, s2009, str6011, str6024, str72036, 8ea011350411, 8ea011611101, 8ea737806001, 1986s00709, 1986s00917, 9585, 30730n, 30730r, 104387, 110566, 201159, 203046, 220208, 220208a, 233001s900, 252153, 458896, 2330054t00, 8212699, 11040176, 11040753, 327081092, 738310000, 0986022690, 2330015900, 2330090067, 2330090069
