HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112371

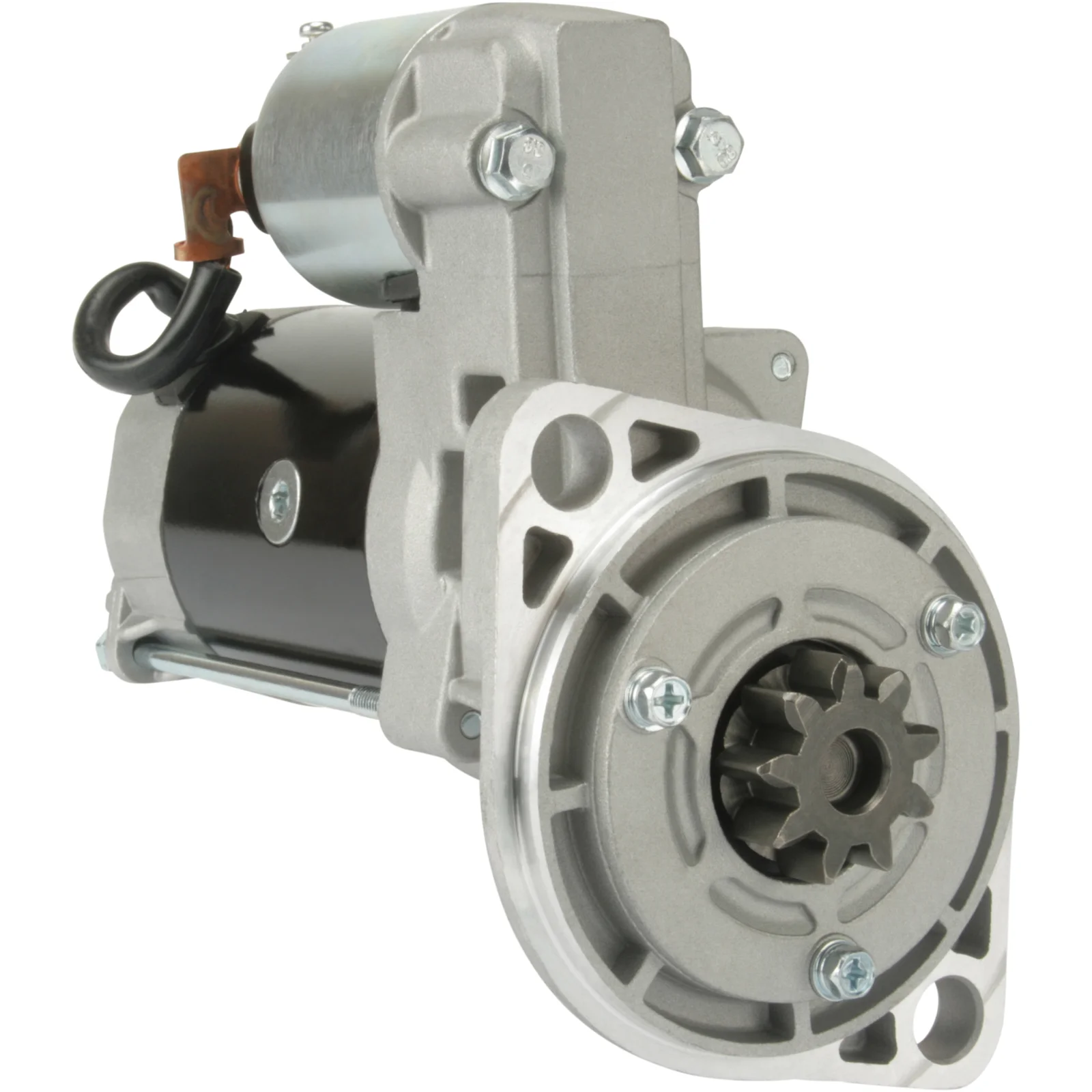

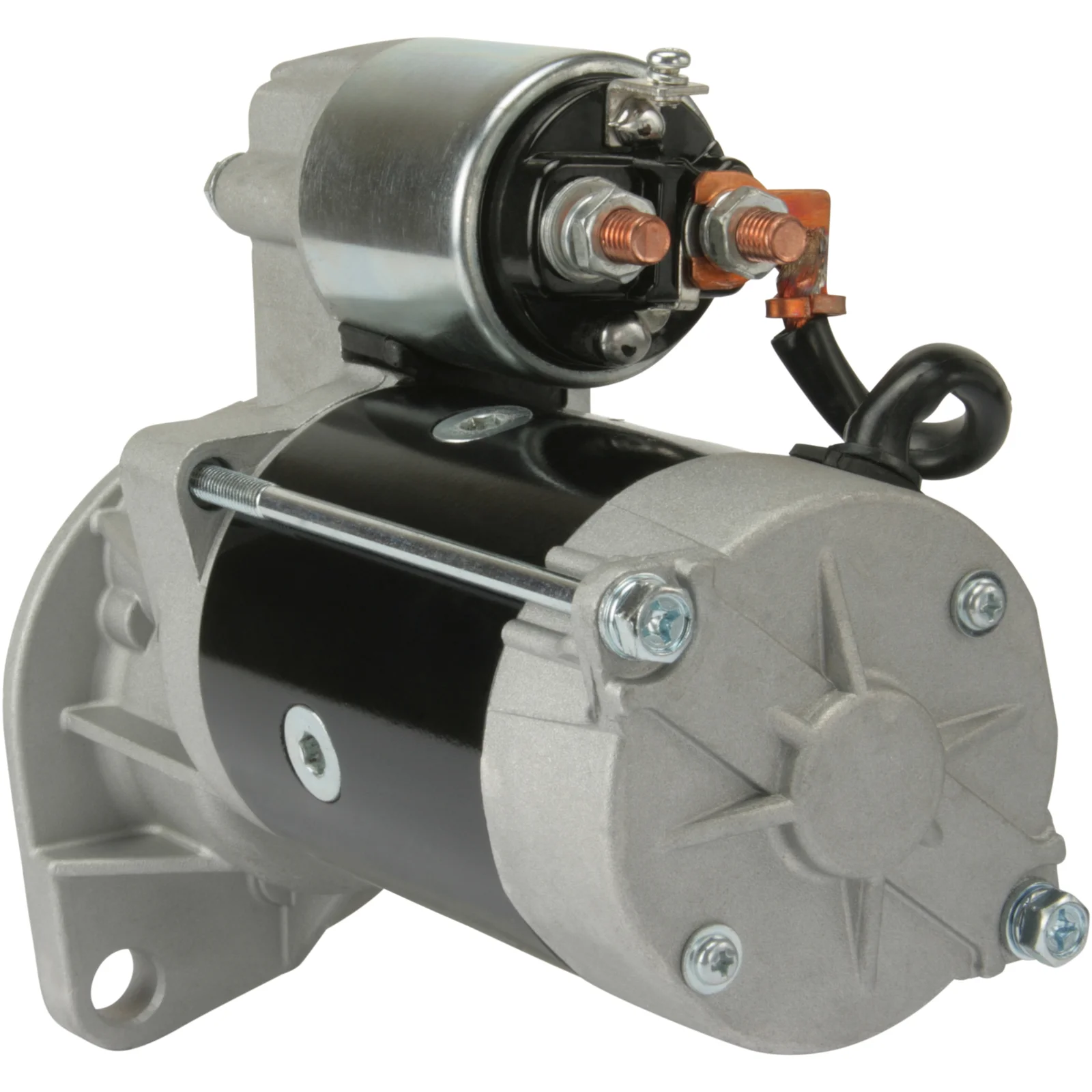

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mount. flange: 95.00
Drive distance: 21.50
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Distance / back: 202.50
Distance / front: 21.50
Number / teeth: 9
B+: M8
Position / 50: 58
Terminal 50: M4
Gear type: GR
Distance mm: 120.00
Rotation: CW
Total length mm: 226.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 2 (0)

Files

  • OEM
    F032112371, S13-207, S13-207A, s13-207c, 45-1688, 126486-77010, 126486-77011, 129486-77011, 452323, 8452323, 20513057

  • Normalised article numbler
    cst20154, f032112371, f042004024, f042s04024, lrs01609, s13207, s13207a, s13207c, s2056, str6009, str72009, 18490n, 22318hi, 105224, 254279, 451688, 452323, 8452323, 20513057, 682032092, 980528092, 12648677010, 12648677011, 12948677011
  • Description
    Voltage: 12
    kW: 2.2
    Mount. flange: 95.00
    Drive distance: 21.50
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Distance / back: 202.50
    Distance / front: 21.50
    Number / teeth: 9
    B+: M8
    Position / 50: 58
    Terminal 50: M4
    Gear type: GR
    Distance mm: 120.00
    Rotation: CW
    Total length mm: 226.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112371, S13-207, S13-207A, s13-207c, 45-1688, 126486-77010, 126486-77011, 129486-77011, 452323, 8452323, 20513057

    • Normalised article numbler
      cst20154, f032112371, f042004024, f042s04024, lrs01609, s13207, s13207a, s13207c, s2056, str6009, str72009, 18490n, 22318hi, 105224, 254279, 451688, 452323, 8452323, 20513057, 682032092, 980528092, 12648677010, 12648677011, 12948677011
