HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112374

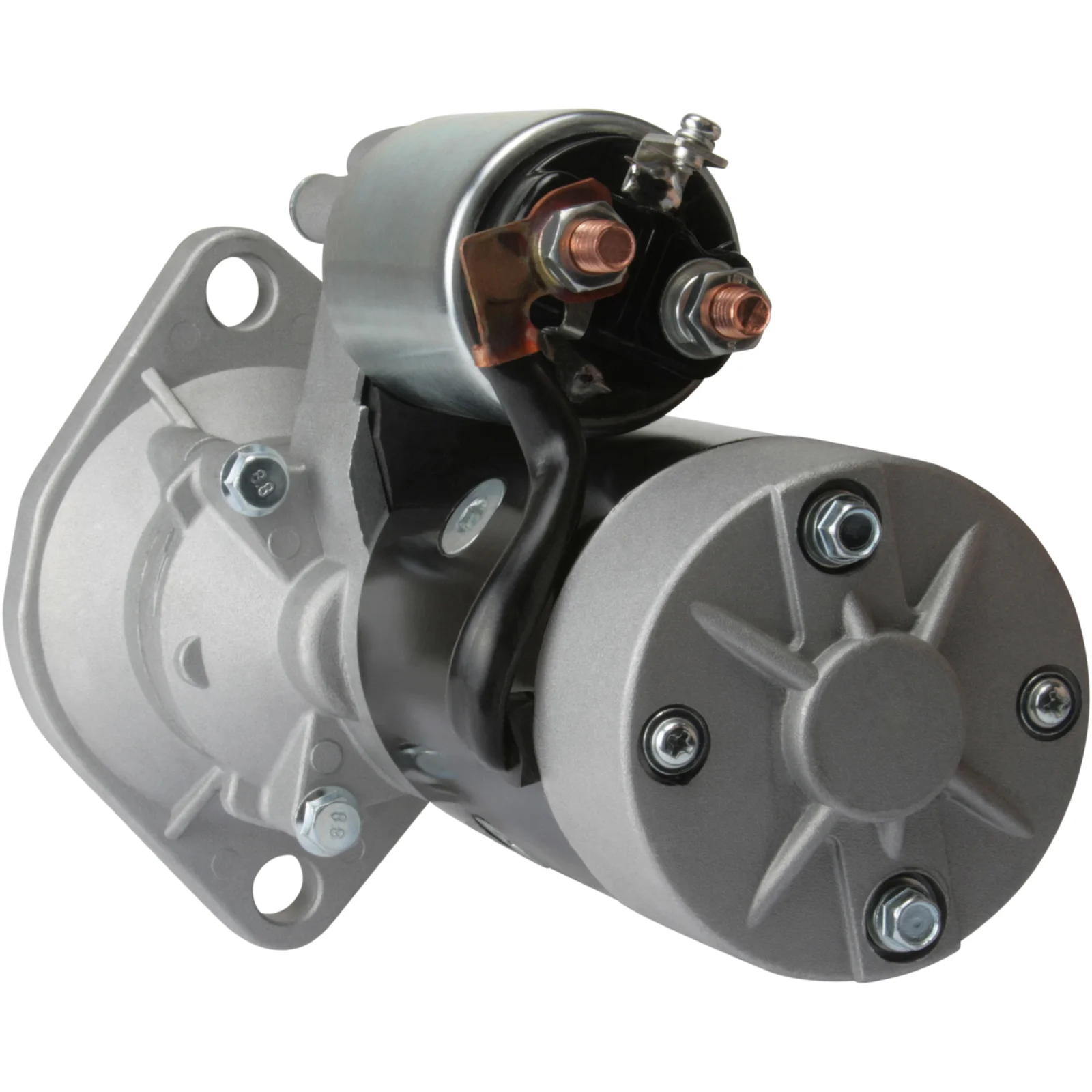

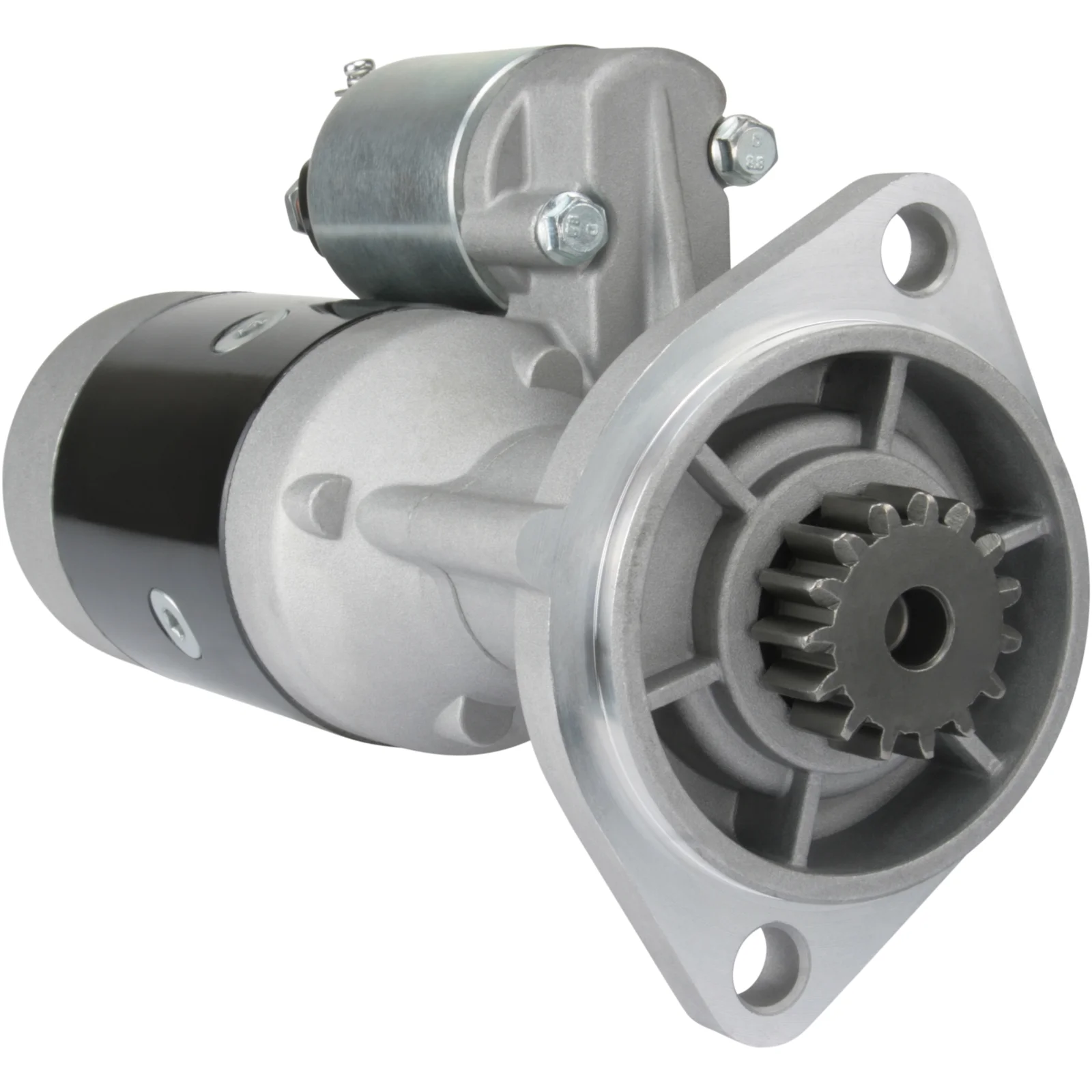

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 15, Rotation: CW

Description

Yanmar Starter motor 12V-2.2kW 12V - 2.2kW, 15k Alternative: 91-273-7110 Densodesign 91-678-1341 2.5kW For Yourex product order 91-678-3124

Voltage: 12
kW: 2.5
Mounting flange: 95.00
Drive distance: 20.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 211.00
Distance / front: 29.00
Number / teeth: 15
B+: M8
Position/50: 60
Terminal 50: M4
Gear type: GR
Distance mm: 120.00
Rotation: CW
Total length mm: 222.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    AM875415, F032112374, S13-124, s13-124, s13-132, s13-294, S13-332, s13-332, s13-78, s13-94, s13-94a, 121256-77010, 129130-77010, 129136-77010, 129136-77011, 129137-77010, 129400-77010, 129400-77011, 129400-77012, 171058-77010

  • Normalised article numbler
    am875415, f032112374, lrs01308, lrs01501, s13124, s13132, s13294, s13332, s1378, s1394, s1394a, s8622, sj00247r, sj00287r, str23006, 8ea015642591, 18051, 18051n, 18204, 19709n, 19839n, 22016hi, 220798, 220798a, 252063, 252454, 254033, 254068, 11040490, 11040699, 91251106, 682013152, 12125677010, 12913077010, 12913677010, 12913677011, 12913777010, 12940077010, 12940077011, 12940077012, 17105877010
  • Description
    Yanmar Starter motor 12V-2.2kW 12V - 2.2kW, 15k Alternative: 91-273-7110 Densodesign 91-678-1341 2.5kW For Yourex product order 91-678-3124

    Voltage: 12
    kW: 2.5
    Mounting flange: 95.00
    Drive distance: 20.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 211.00
    Distance / front: 29.00
    Number / teeth: 15
    B+: M8
    Position/50: 60
    Terminal 50: M4
    Gear type: GR
    Distance mm: 120.00
    Rotation: CW
    Total length mm: 222.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AM875415, F032112374, S13-124, s13-124, s13-132, s13-294, S13-332, s13-332, s13-78, s13-94, s13-94a, 121256-77010, 129130-77010, 129136-77010, 129136-77011, 129137-77010, 129400-77010, 129400-77011, 129400-77012, 171058-77010

    • Normalised article numbler
      am875415, f032112374, lrs01308, lrs01501, s13124, s13132, s13294, s13332, s1378, s1394, s1394a, s8622, sj00247r, sj00287r, str23006, 8ea015642591, 18051, 18051n, 18204, 19709n, 19839n, 22016hi, 220798, 220798a, 252063, 252454, 254033, 254068, 11040490, 11040699, 91251106, 682013152, 12125677010, 12913077010, 12913677010, 12913677011, 12913777010, 12940077010, 12940077011, 12940077012, 17105877010
