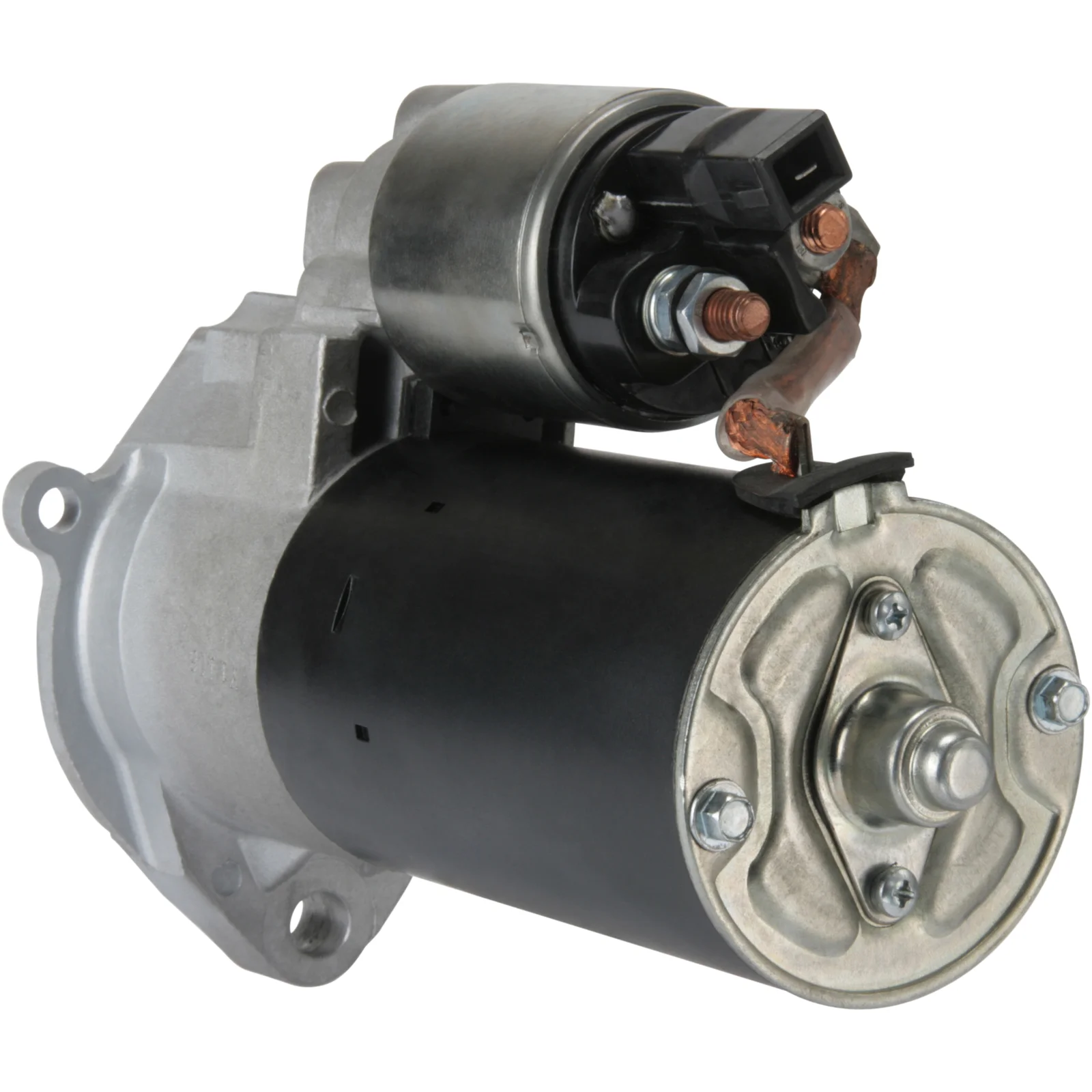

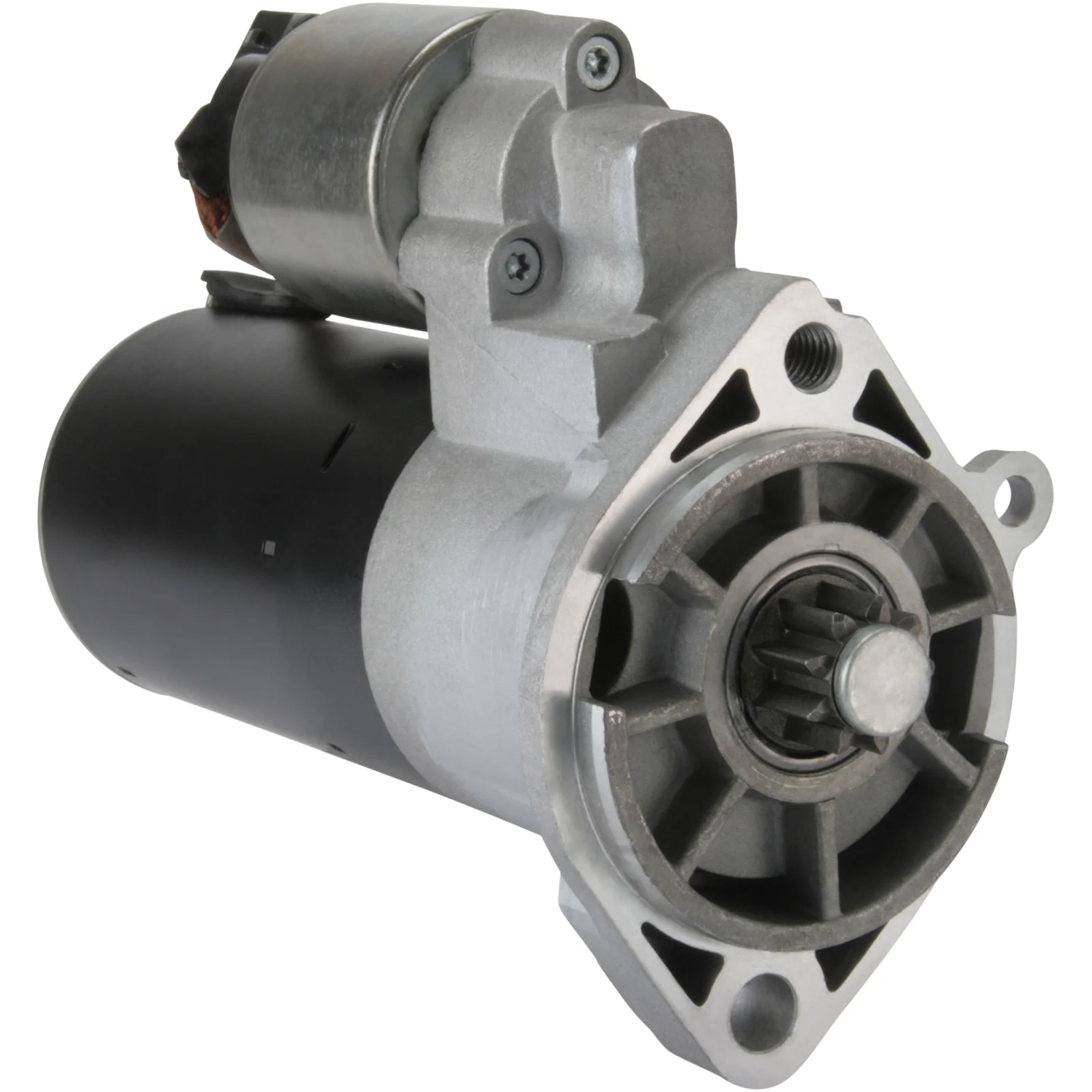

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112430

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kilowatt: 2.0
Mounting flange: 82.50
Drive distance: 21.00
Mounting hole 2 mm: 11.00
Distance/back: 203.00
Distance/front: 25.00
Number/teeth: 9
B+: M8
Position/50: 60
Terminal 50: 4.80
Gear type: GR
Distance mm: 104.50
Rotation: CW
Total length mm: 229.50
Clutch type: Dry
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (1)

Files

  • OEM
    cs1187, F032112430, 1986S00819, 0001125507, 0001125508, 0001125517, 0001125518, 1516682R, 069911023j, 069911023JX, 069911023m, 069911023MX

  • Normalised article numbler
    cs1187, cst10296, drs8940, f032112430, f032us0053, f042s02188, f042s0h121, lrs01540, s0192, strh121, 8ea012527371, 1986s00819, 32553n, 101187, 104734, 220651, 220651a, 253024, 458538, 726923, 0001125507, 0001125508, 0001125517, 0001125518, 1516682r, 8212301, 11018940, 069911023j, 069911023jx, 069911023m, 069911023mx, 311097092, 0986018940, 944280189400
  • Description
    Voltage: 12
    kilowatt: 2.0
    Mounting flange: 82.50
    Drive distance: 21.00
    Mounting hole 2 mm: 11.00
    Distance/back: 203.00
    Distance/front: 25.00
    Number/teeth: 9
    B+: M8
    Position/50: 60
    Terminal 50: 4.80
    Gear type: GR
    Distance mm: 104.50
    Rotation: CW
    Total length mm: 229.50
    Clutch type: Dry
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      cs1187, F032112430, 1986S00819, 0001125507, 0001125508, 0001125517, 0001125518, 1516682R, 069911023j, 069911023JX, 069911023m, 069911023MX

    • Normalised article numbler
      cs1187, cst10296, drs8940, f032112430, f032us0053, f042s02188, f042s0h121, lrs01540, s0192, strh121, 8ea012527371, 1986s00819, 32553n, 101187, 104734, 220651, 220651a, 253024, 458538, 726923, 0001125507, 0001125508, 0001125517, 0001125518, 1516682r, 8212301, 11018940, 069911023j, 069911023jx, 069911023m, 069911023mx, 311097092, 0986018940, 944280189400
