HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112442

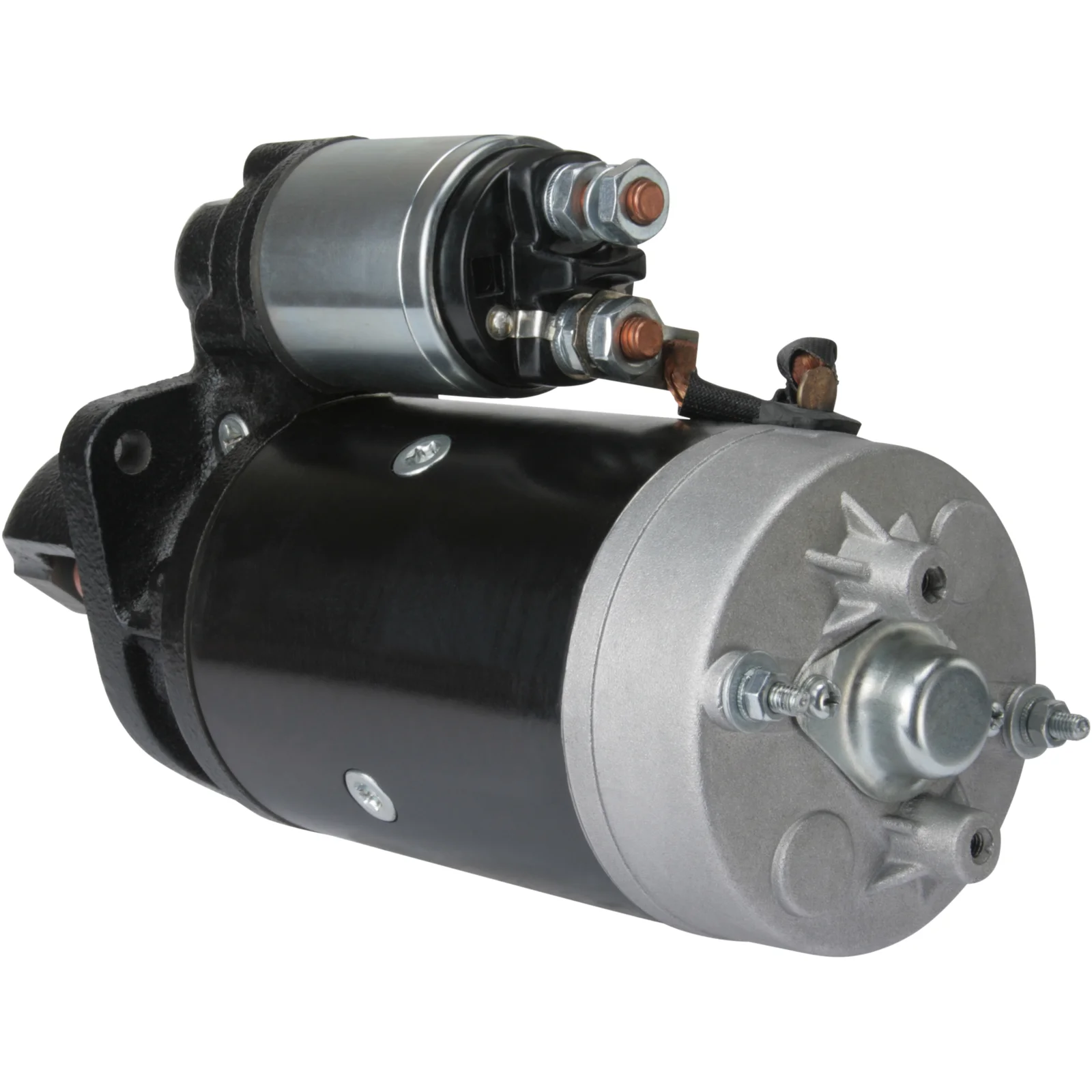

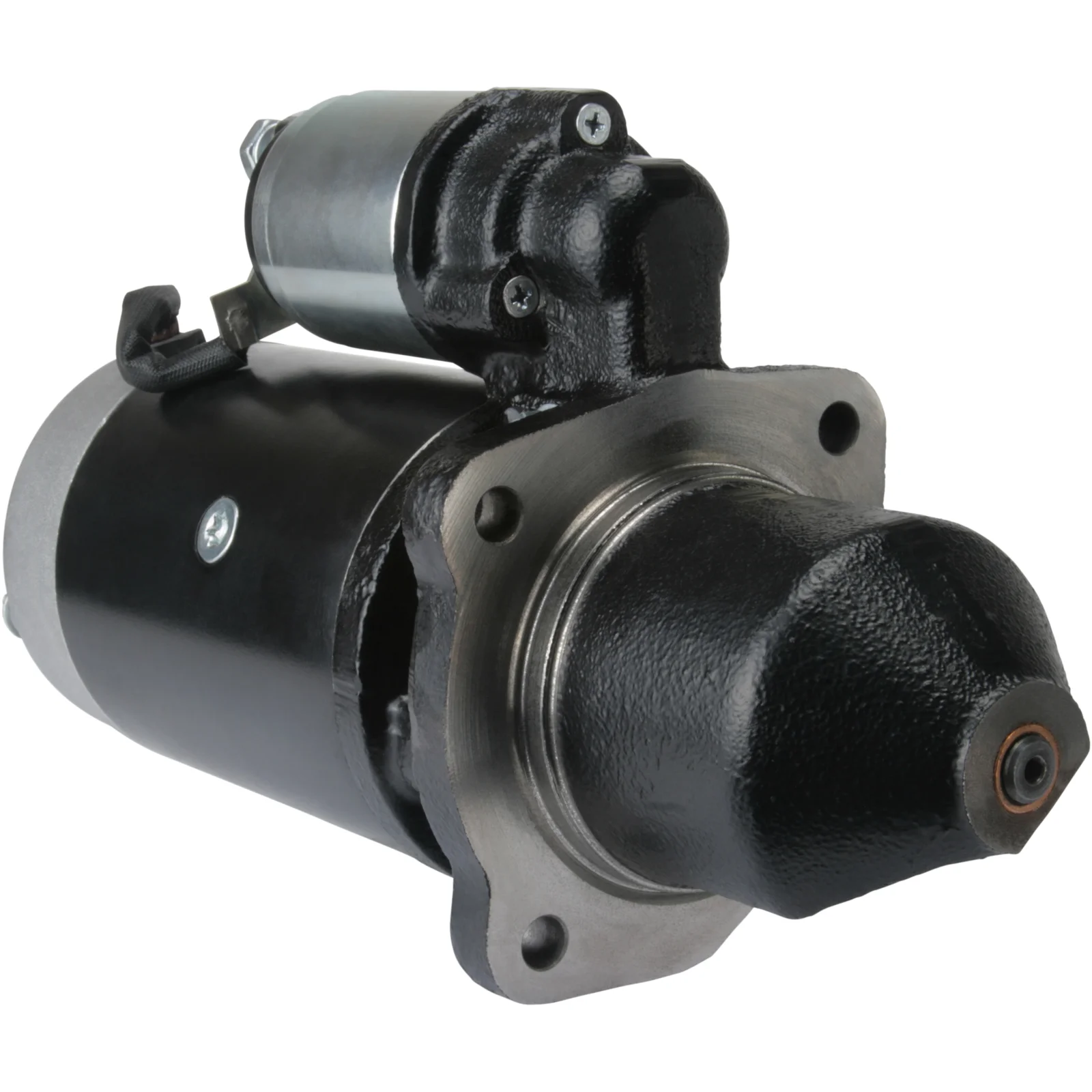

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 48.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 235.00
Distance / front: 96.00
Number / teeth: 10
B+: M10
Position / 50: 15
Terminal 50: M4
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 340.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: GR Starter HC-CARGO 115609.
Number / mounting holes: 3 (0)

Files

  • OEM
    AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

  • Normalised article numbler
    al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 48.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 235.00
    Distance / front: 96.00
    Number / teeth: 10
    B+: M10
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 340.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: GR Starter HC-CARGO 115609.
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

    • Normalised article numbler
      al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003
