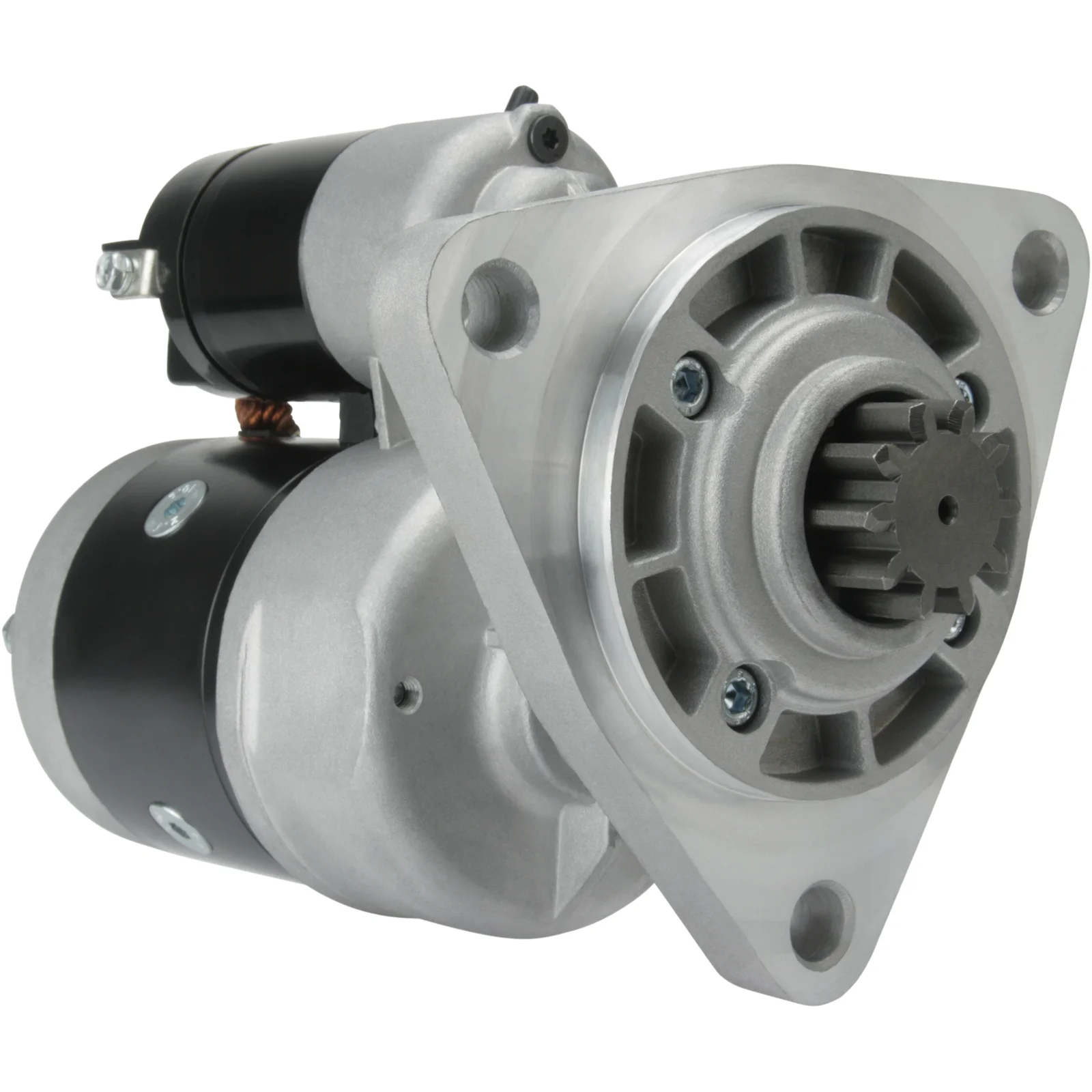

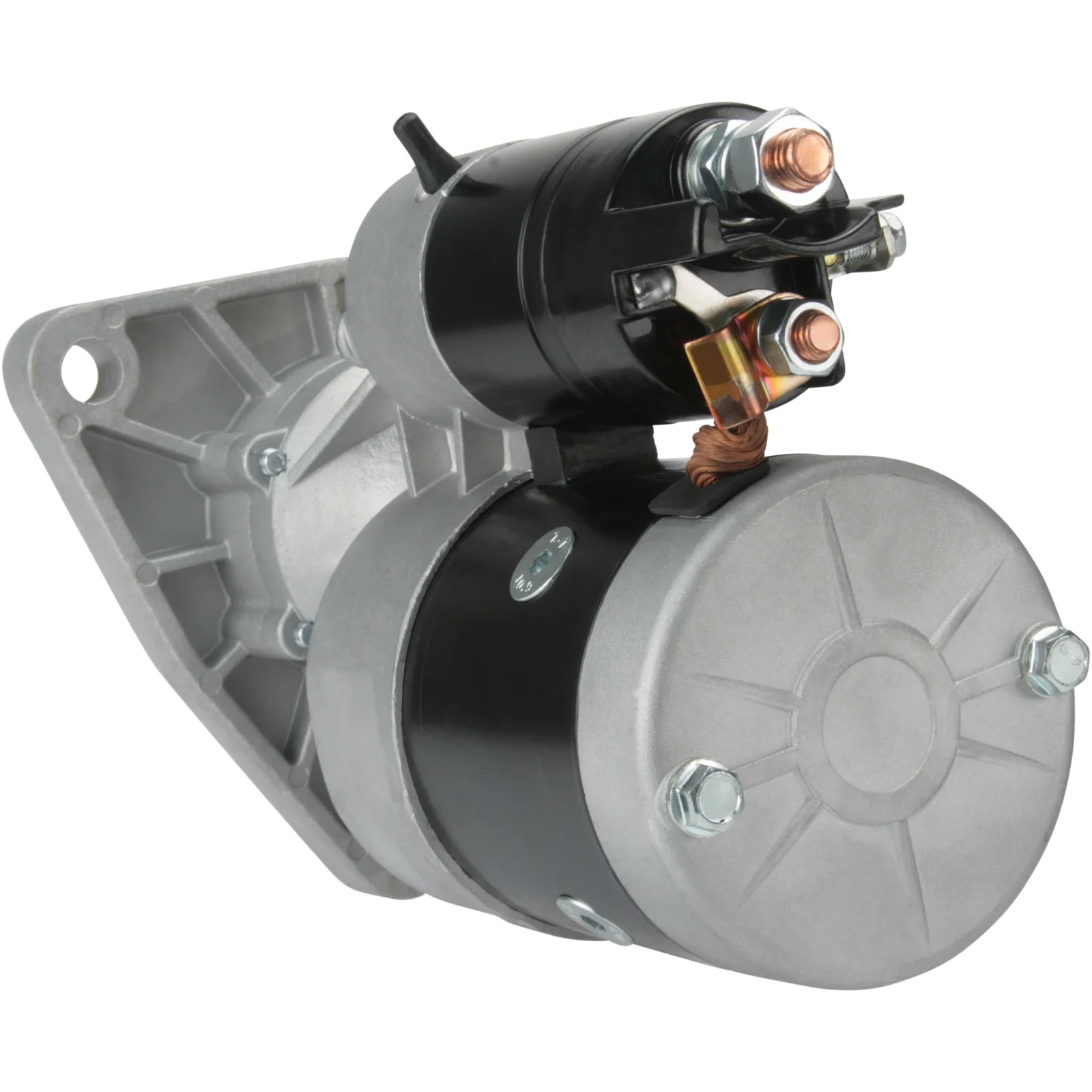

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112488

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.7, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kilowatts: 2.7
Mounting flange: 100.00
Drive distance: 32.00
Mounting hole 3 mm: 13.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 200.50
Distance / front: 32.00
Number / teeth: 10
B+: M10
Position / 50: 15
Terminal 50: M5
Gear type: GR
Distance 2: 126.50
Distance 3: 126.50
Distance mm: 126.50
Rotation: CW
Total length mm: 238.50
Clutch type: Wet
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • Description
    Voltage: 12
    kilowatts: 2.7
    Mounting flange: 100.00
    Drive distance: 32.00
    Mounting hole 3 mm: 13.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 200.50
    Distance / front: 32.00
    Number / teeth: 10
    B+: M10
    Position / 50: 15
    Terminal 50: M5
    Gear type: GR
    Distance 2: 126.50
    Distance 3: 126.50
    Distance mm: 126.50
    Rotation: CW
    Total length mm: 238.50
    Clutch type: Wet
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles
