Article no.: F032112496

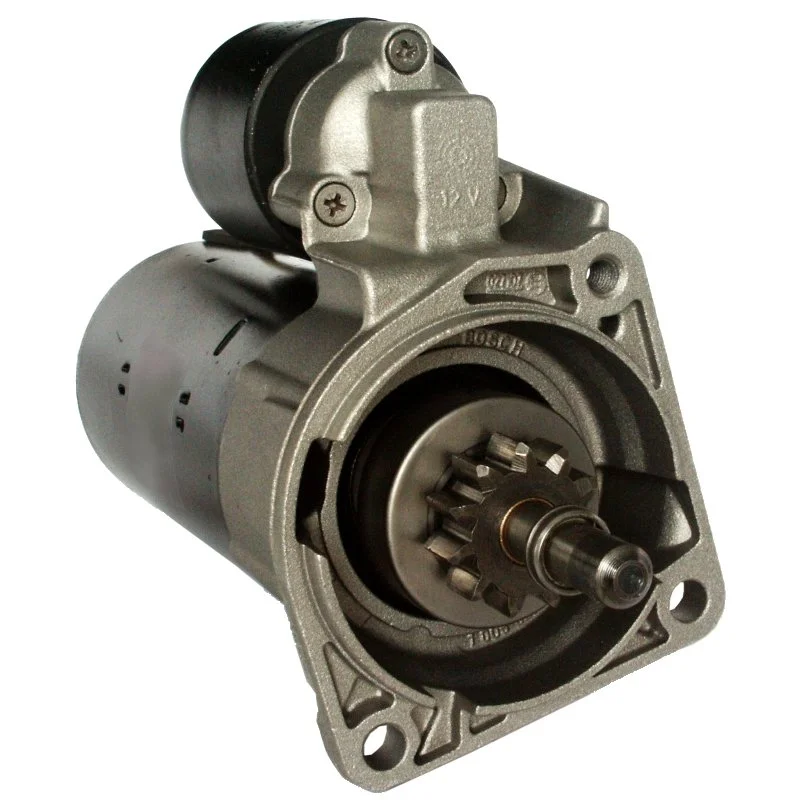

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 11, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 82.50
Drive distance: 14.50
Mount. hole 3 mm: 9.00
Mount. hole 2 mm: 9.00
Distance / back: 214.50
Distance / front: 52.00
Number / teeth: 11
B+: M8
Position / 50: 15
Terminal 50: M6
Gear type: GR
Distance 2: 74.00
Distance 3: 105.50
Distance mm: 73.00
Rotation: CW
Total length mm: 269.00
Clutch type: Dry
Drive type: Steel
Product info: Reman
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (1)

Files

  • OEM
    aze2105, aze2141, F032112496, 11.130.979, 11.131.164, 0001109017

  • Normalised article numbler
    aze2105, aze2141, cst10388, cst21161, drs0275, f032112496, is0979, is1192, ms245, ms259, s0208, str50198, 254607, 0001109017, 11130979, 11131164, 520505113, 680009112
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 82.50
    Drive distance: 14.50
    Mount. hole 3 mm: 9.00
    Mount. hole 2 mm: 9.00
    Distance / back: 214.50
    Distance / front: 52.00
    Number / teeth: 11
    B+: M8
    Position / 50: 15
    Terminal 50: M6
    Gear type: GR
    Distance 2: 74.00
    Distance 3: 105.50
    Distance mm: 73.00
    Rotation: CW
    Total length mm: 269.00
    Clutch type: Dry
    Drive type: Steel
    Product info: Reman
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (1)

    Files

  • Suitable for these vehicles

    • OEM
      aze2105, aze2141, F032112496, 11.130.979, 11.131.164, 0001109017

    • Normalised article numbler
      aze2105, aze2141, cst10388, cst21161, drs0275, f032112496, is0979, is1192, ms245, ms259, s0208, str50198, 254607, 0001109017, 11130979, 11131164, 520505113, 680009112
