HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112547

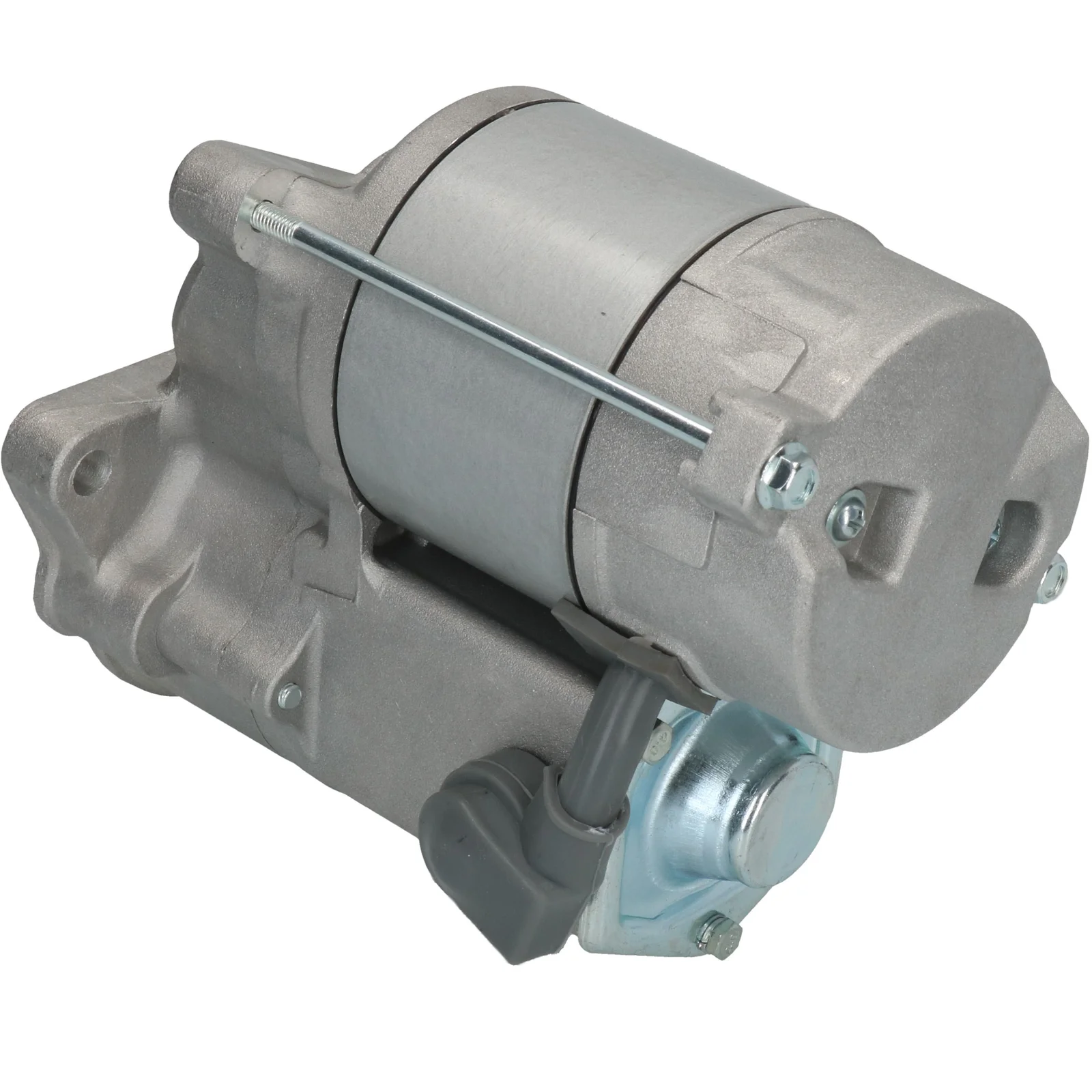

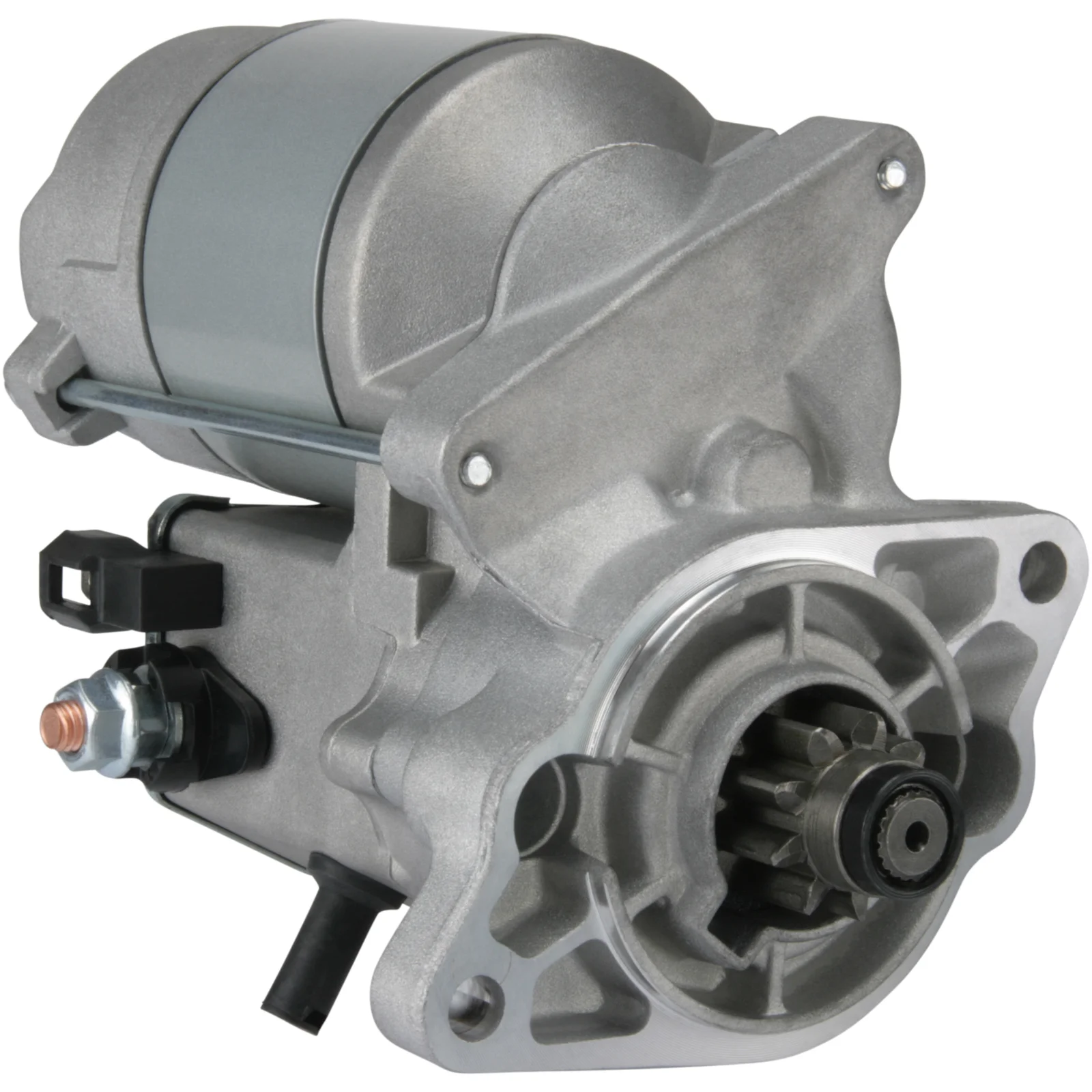

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.4, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.4
Mounting flange: 66.00
Drive distance: 18.00
Mounting hole 2 mm: 9.00
Mounting hole 1 mm: 9.00
Distance/backup: 160.00
Distance/front: 51.50
Number of teeth: 9
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 110.00
Rotation: CW
Total length in millimeters: 211.50
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Remarks: May be supplied with or without nose cone
Number of mounting holes: 2 (0)

Files

  • OEM
    F032112547, K7561-61810, 17423-63010, 17423-63012, 228000-7610, 228000-7611

  • Normalised article numbler
    cst40185, dsn2087, f032112547, f042000183, f042s00183, k756161810, s6274s, str30046, str70073, str8090, 18413n, 18419n, 22656nd, 112547, 254444, 683039092, 683040132, 1742363010, 1742363012, 2280007610, 2280007611
  • Description
    Voltage: 12
    kW: 1.4
    Mounting flange: 66.00
    Drive distance: 18.00
    Mounting hole 2 mm: 9.00
    Mounting hole 1 mm: 9.00
    Distance/backup: 160.00
    Distance/front: 51.50
    Number of teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 110.00
    Rotation: CW
    Total length in millimeters: 211.50
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: May be supplied with or without nose cone
    Number of mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112547, K7561-61810, 17423-63010, 17423-63012, 228000-7610, 228000-7611

    • Normalised article numbler
      cst40185, dsn2087, f032112547, f042000183, f042s00183, k756161810, s6274s, str30046, str70073, str8090, 18413n, 18419n, 22656nd, 112547, 254444, 683039092, 683040132, 1742363010, 1742363012, 2280007610, 2280007611
