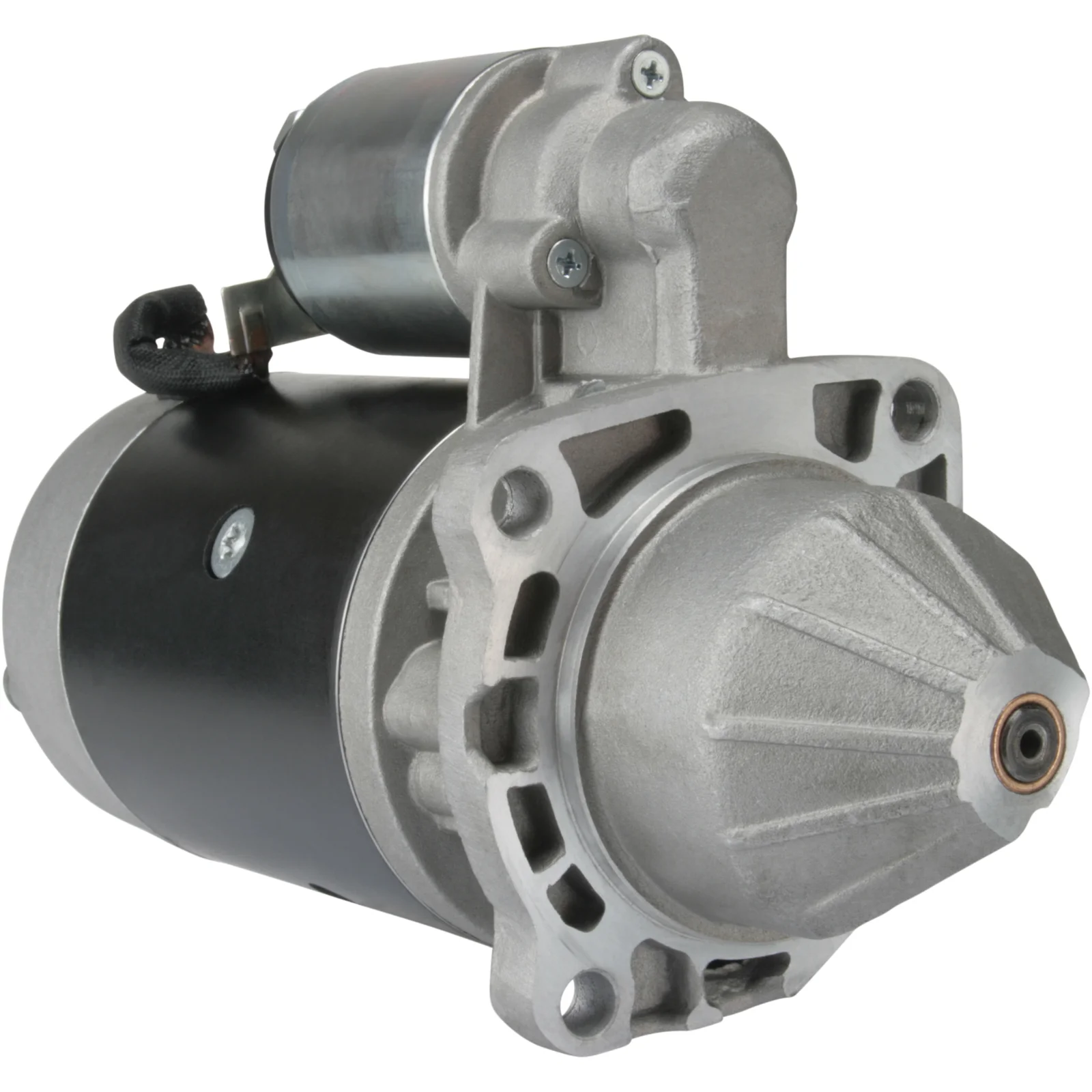

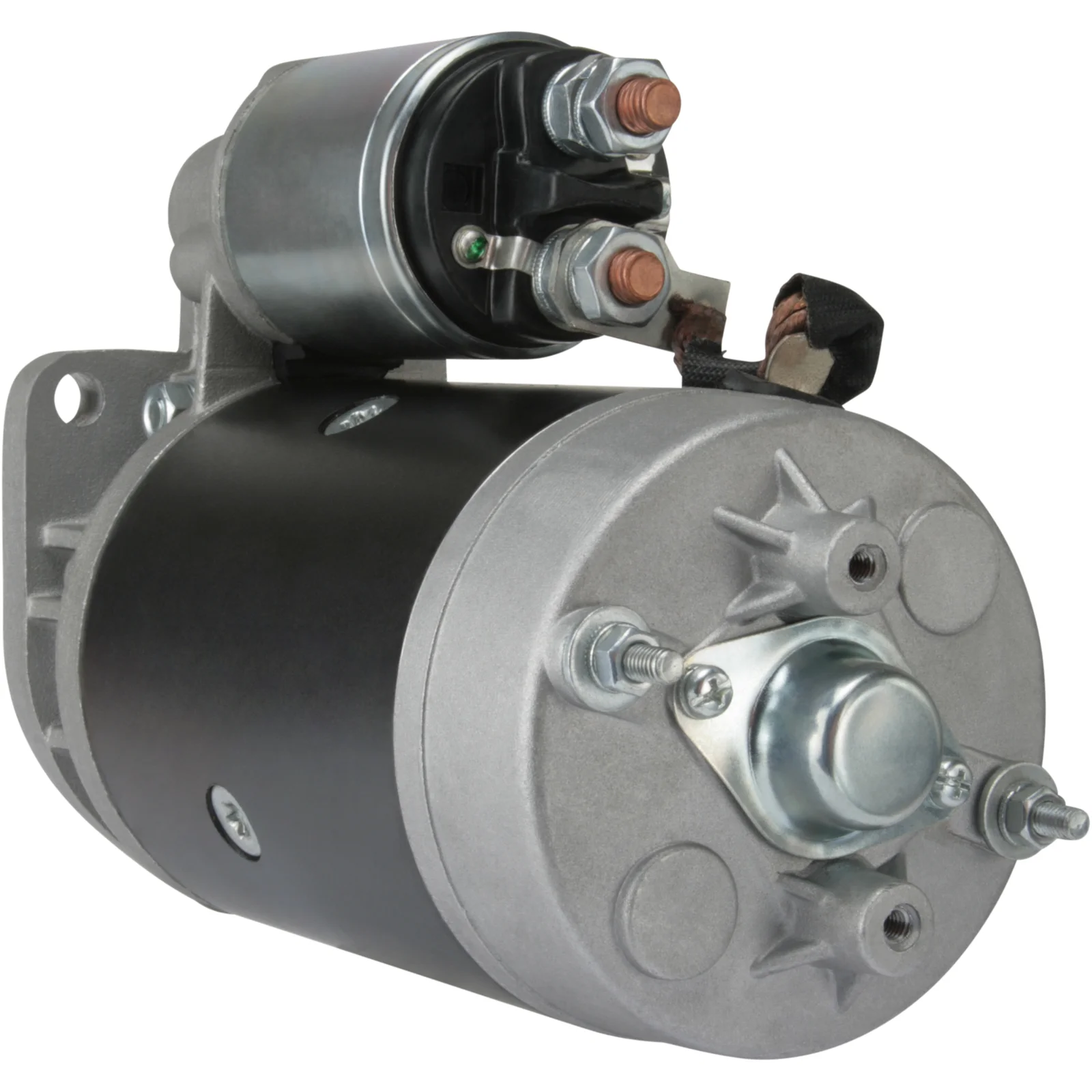

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112555

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.1, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.1
Mount. flange: 89.00
Drive distance: 28.50
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance / back: 229.50
Distance / front: 73.00
Number / teeth: 9
B+: M10
Position / 50: 15
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 303.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 3 (0)

Files

  • OEM
    azj3179, C000900060120, cs887, F032112555, F119900060010, F716903060040, 11.130.567, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 9142803

  • Normalised article numbler
    azj3179, bso7181, c000900060120, cs887, cst10361, drs6550, drs6550n, drs9020, f032112555, f119900060010, f716903060040, is0567, lrs00987, ms308, s0174, sr994zx, str22060, 8ea737086001, 4150, 10887, 18026, 18026n, 18232n, 21889bo, 33885, 101130, 104790, 220787, 220787a, 252110, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 8816550, 9142803, 11016550, 11130567, 42016550, 688015092, 943252299, 0986016550, 0986016557
  • Description
    Voltage: 12
    kW: 3.1
    Mount. flange: 89.00
    Drive distance: 28.50
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance / back: 229.50
    Distance / front: 73.00
    Number / teeth: 9
    B+: M10
    Position / 50: 15
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 303.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3179, C000900060120, cs887, F032112555, F119900060010, F716903060040, 11.130.567, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 9142803

    • Normalised article numbler
      azj3179, bso7181, c000900060120, cs887, cst10361, drs6550, drs6550n, drs9020, f032112555, f119900060010, f716903060040, is0567, lrs00987, ms308, s0174, sr994zx, str22060, 8ea737086001, 4150, 10887, 18026, 18026n, 18232n, 21889bo, 33885, 101130, 104790, 220787, 220787a, 252110, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 8816550, 9142803, 11016550, 11130567, 42016550, 688015092, 943252299, 0986016550, 0986016557
