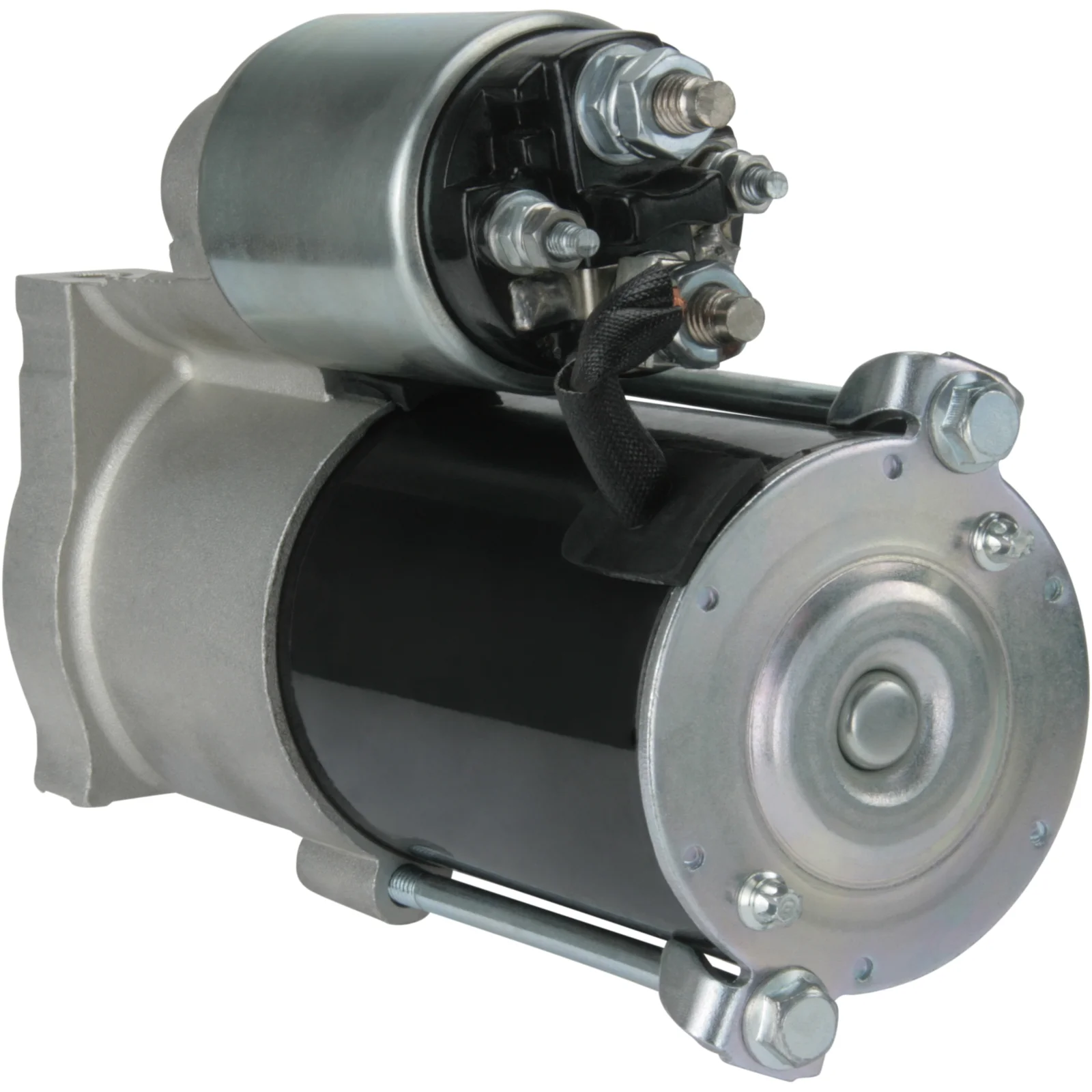

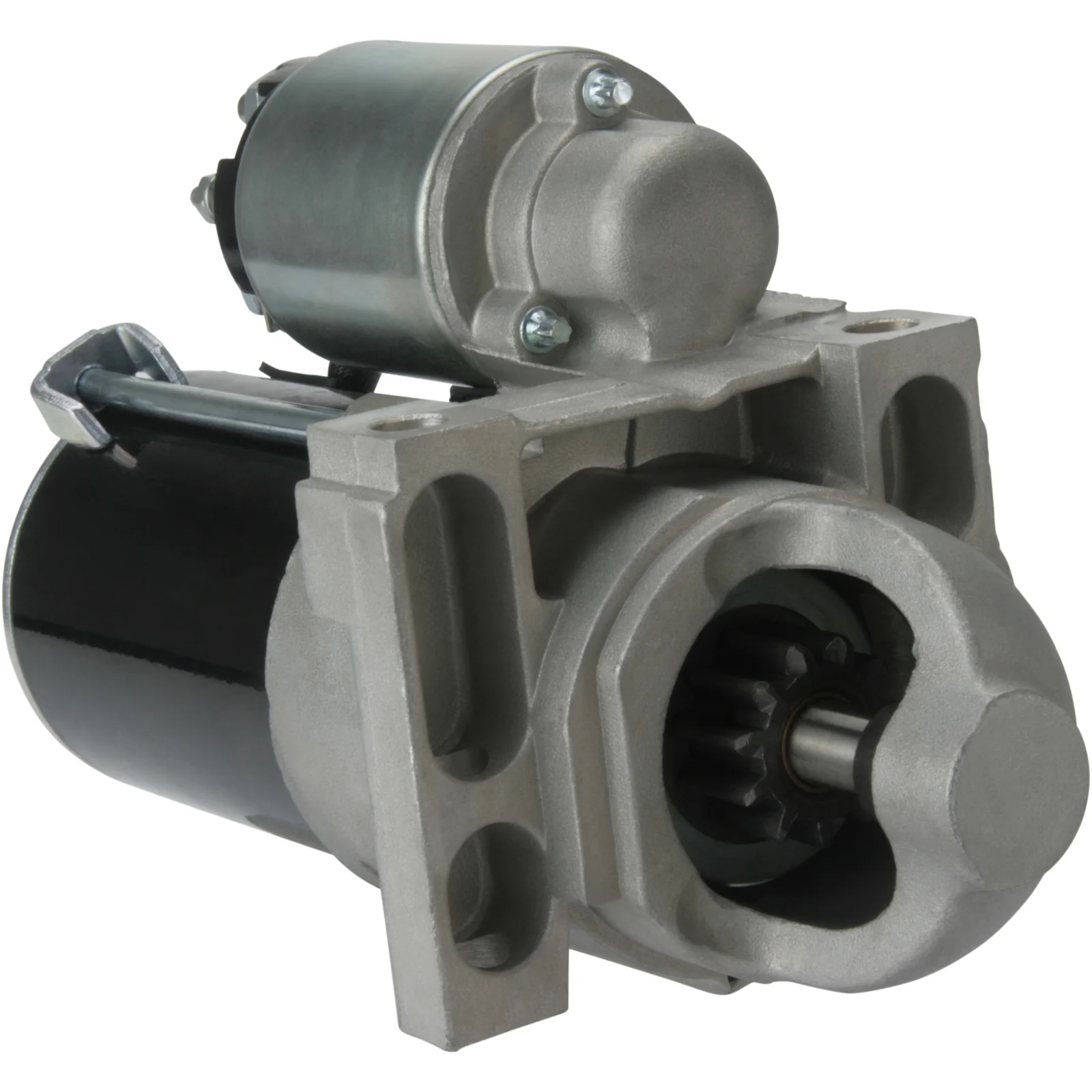

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032112902

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Drive dist.: 18.00
Mount. hole 2 mm: 10.00
Mount. hole 1 mm: 10.00
Dist./back: 155.00
Dist./front: 57.00
No./teeth: 9
B+: M8
Position/50: 55
Terminal 50: M5
Gear type: DD/GR
Dist. mm: 73.50
Rotation: CW
Total length mm: 214.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Remarks: Replacing: PG260F2.
No./mount. holes: 2 (0)

Files

  • OEM
    F032112902, 323-1400, 323-1483, 336-2002, 9000837, 9000842, 9000854, 9000873, 9000925, 9000939, 10465463, 12560672, 12563908, 12573853, 12578050

  • Normalised article numbler
    f032112902, f042003032, f042s03032, s1206s, sdr0070, str2618, 6488, 6488n, 6489, 6489n, 6489r, 6492, 6494, 6494n, 6494r, 22054dr, 22054dr1, 22054dr2, 22139dr, 22211dr, 22211dr2, 3231400, 3231483, 3362002, 8000016, 9000837, 9000842, 9000854, 9000873, 9000925, 9000939, 10465463, 12560672, 12563908, 12573853, 12578050
  • Description
    Voltage: 12
    kW: 1.2
    Drive dist.: 18.00
    Mount. hole 2 mm: 10.00
    Mount. hole 1 mm: 10.00
    Dist./back: 155.00
    Dist./front: 57.00
    No./teeth: 9
    B+: M8
    Position/50: 55
    Terminal 50: M5
    Gear type: DD/GR
    Dist. mm: 73.50
    Rotation: CW
    Total length mm: 214.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Remarks: Replacing: PG260F2.
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032112902, 323-1400, 323-1483, 336-2002, 9000837, 9000842, 9000854, 9000873, 9000925, 9000939, 10465463, 12560672, 12563908, 12573853, 12578050

    • Normalised article numbler
      f032112902, f042003032, f042s03032, s1206s, sdr0070, str2618, 6488, 6488n, 6489, 6489n, 6489r, 6492, 6494, 6494n, 6494r, 22054dr, 22054dr1, 22054dr2, 22139dr, 22211dr, 22211dr2, 3231400, 3231483, 3362002, 8000016, 9000837, 9000842, 9000854, 9000873, 9000925, 9000939, 10465463, 12560672, 12563908, 12573853, 12578050
