Article no.: F032113040

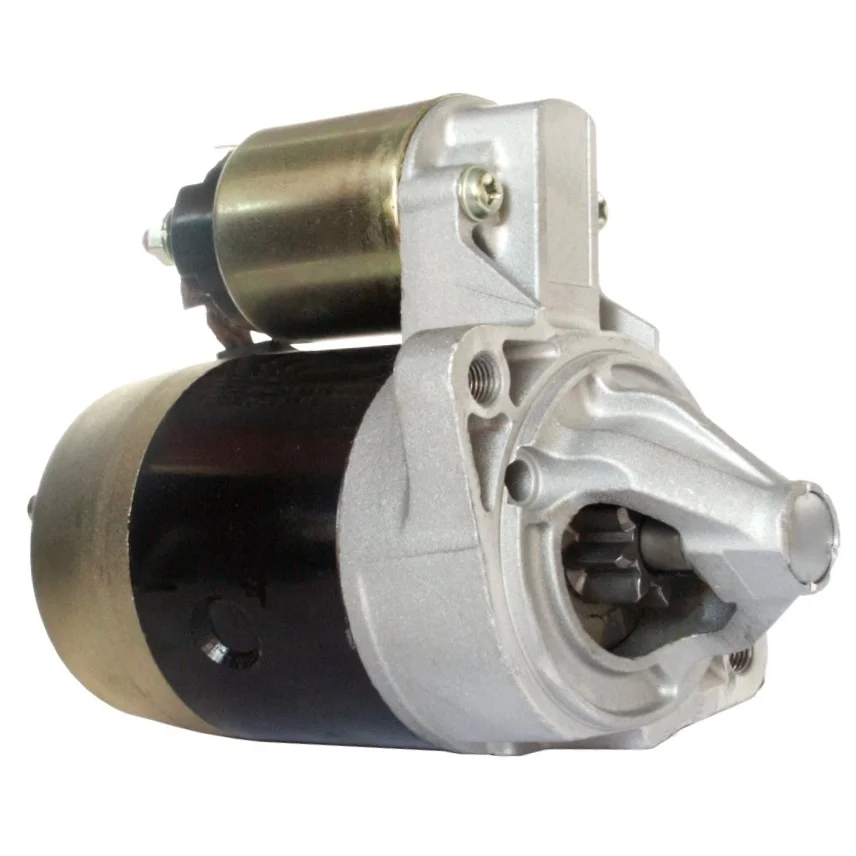

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.9, No./teeth: 8, Rotation: CW

Description

Voltage: 12
kW: 0.9
Mount. flange: 77.00
Drive dist.: 10.00
Dist./back: 143.00
Dist./front: 48.50
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 190.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Files

  • OEM
    F032113040, js925, M003T44081, M003T44081ZT, M003T44091ZT, M003T44181, M003T44182, m3t44081, m3t44081zt, m3t44091zt, m3t44181, M3T44182, md301348, md301348g, md321445, MD359972, MP112056, 458522

  • Normalised article numbler
    cst35183, drs0967, drs3595, f032113040, f042001116, f042s01116, j5215032, js925, lrs01376, m003t44081, m003t44081zt, m003t44091zt, m003t44181, m003t44182, m3t44081, m3t44081zt, m3t44091zt, m3t44181, m3t44182, md301348, md301348g, md321445, md359972, mp112056, sc0068r, sc0086r, smt0120, str3558, 8ea012528281, 8ea737126001, 4337, 17294, 17732, 17732n, 17732r, 20925, 21861mi, 105261, 220475, 220475a, 252142, 252235, 458522, 8212566, 11040646, 11040661, 11040667, 326023082, 326033082, 0986019091, 0986020391
  • Description
    Voltage: 12
    kW: 0.9
    Mount. flange: 77.00
    Drive dist.: 10.00
    Dist./back: 143.00
    Dist./front: 48.50
    No./teeth: 8
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 190.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032113040, js925, M003T44081, M003T44081ZT, M003T44091ZT, M003T44181, M003T44182, m3t44081, m3t44081zt, m3t44091zt, m3t44181, M3T44182, md301348, md301348g, md321445, MD359972, MP112056, 458522

    • Normalised article numbler
      cst35183, drs0967, drs3595, f032113040, f042001116, f042s01116, j5215032, js925, lrs01376, m003t44081, m003t44081zt, m003t44091zt, m003t44181, m003t44182, m3t44081, m3t44081zt, m3t44091zt, m3t44181, m3t44182, md301348, md301348g, md321445, md359972, mp112056, sc0068r, sc0086r, smt0120, str3558, 8ea012528281, 8ea737126001, 4337, 17294, 17732, 17732n, 17732r, 20925, 21861mi, 105261, 220475, 220475a, 252142, 252235, 458522, 8212566, 11040646, 11040661, 11040667, 326023082, 326033082, 0986019091, 0986020391
