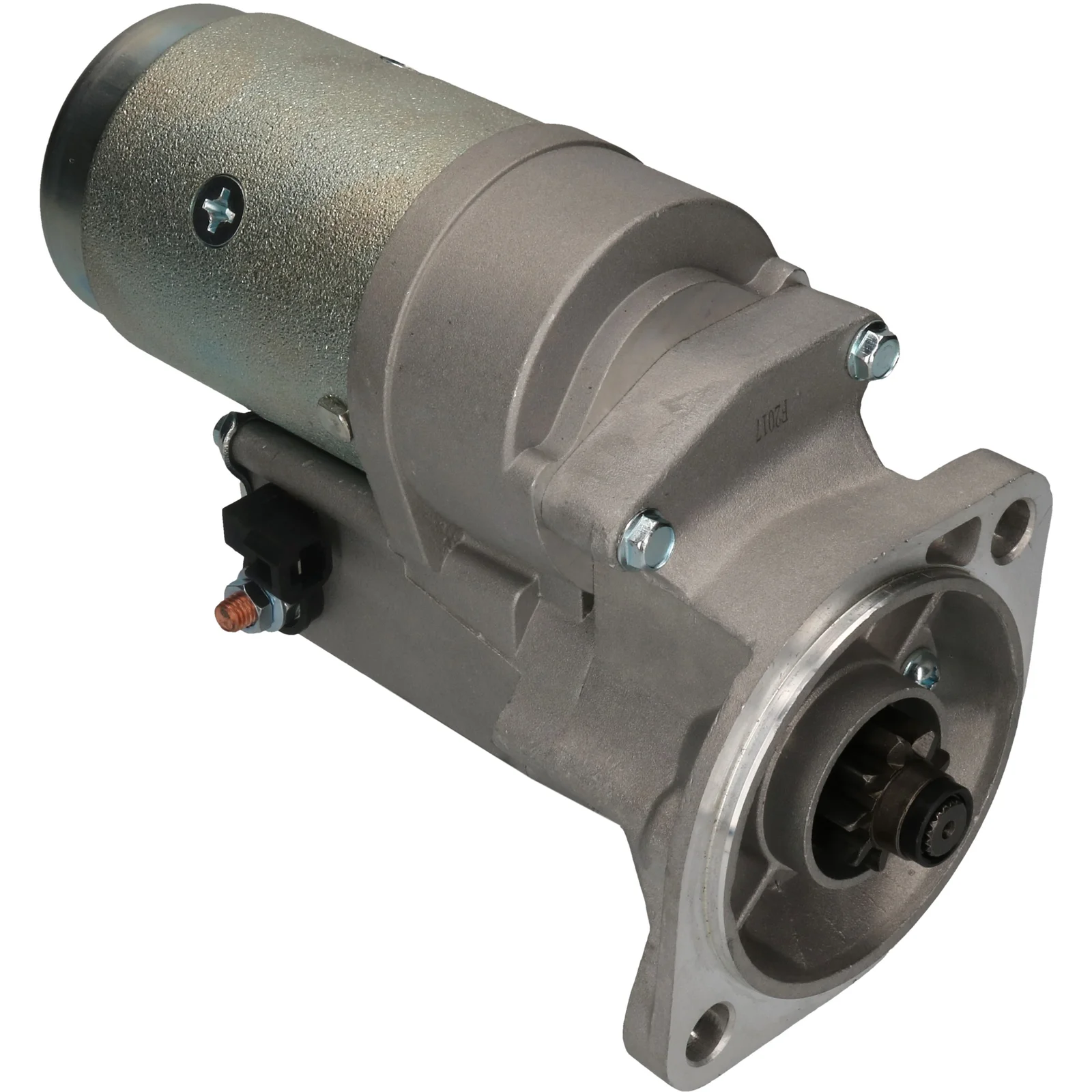

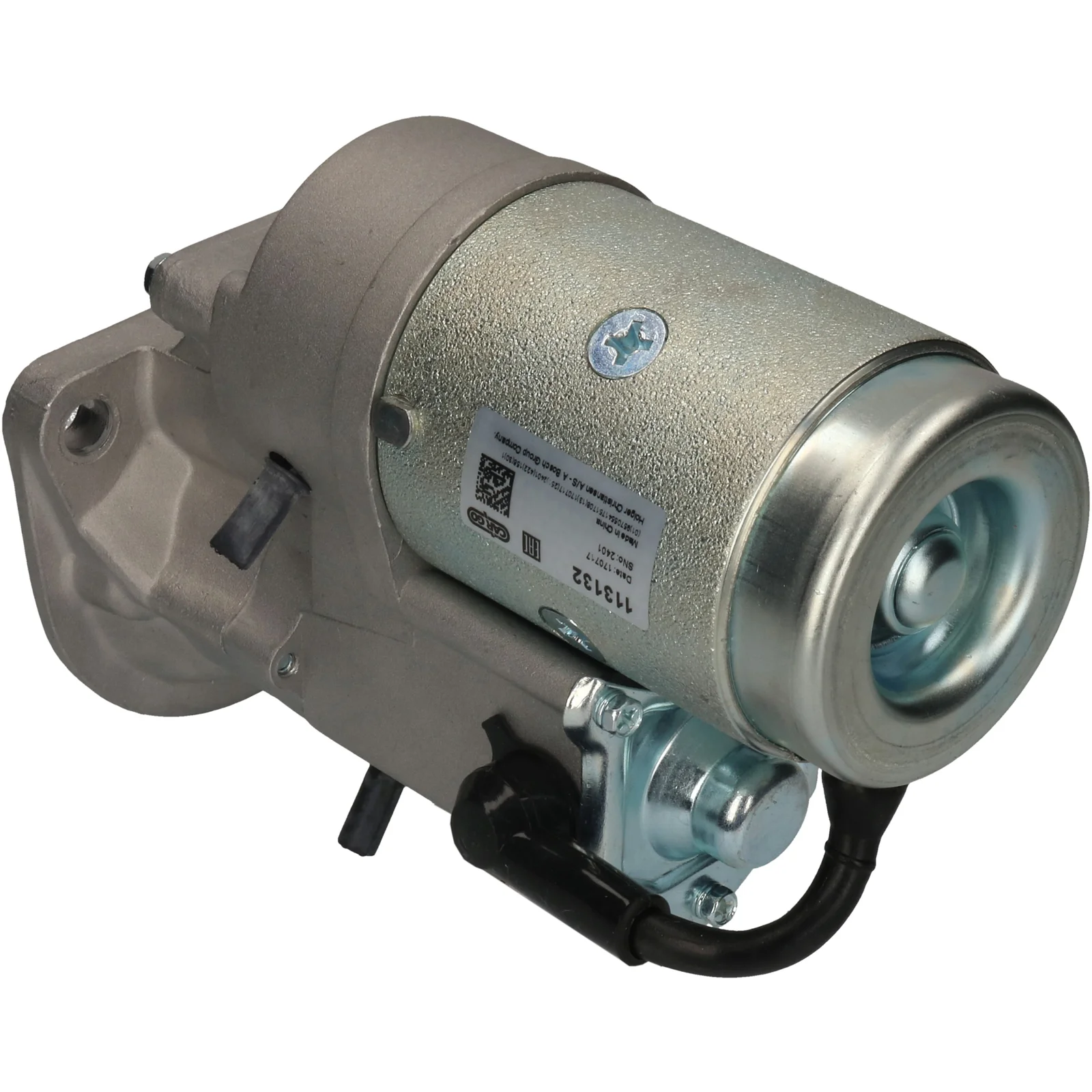

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113132

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.2
Mounting flange: 95.00
Drive distance: 10.00
Mounting hole 2 mm: 13.00
Mounting hole 1 mm: 13.00
Distance / back: 162.00
Distance / front: 21.00
Number / teeth: 9
B+: M8
Position / 50: 10
Terminal 50: Plug
Gear type: GR
Distance in millimeters: 120.00
Rotation: CW
Total length in millimeters: 237.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 2 (0)

Files

  • OEM
    F032113132, 2873k401, 128000-0830, 128000-0831, 128000-0832, 128000-0833, 228000-1890, 228000-1891, 228000-1892, 228000-1893, 228000-8040, 228000-8041, 1347064, 8970429970, 8970429971, 8970429972

  • Normalised article numbler
    bsx2640001, cst40131, drs0194, dsn2061, f032113132, f042000022, f042000025, f042000026, f042s00022, f042s00025, ga24890, les0350, lrs02067, s6399s, s8661, sj00288r, snd0331, str5011, str5011h, str70025, 8ea015642051, 2873k401, 8155, 17303, 18449, 22099nd, 220934, 220934a, 252114, 254041, 1347064, 3122813, 11040289, 91295369, 343006092, 1280000830, 1280000831, 1280000832, 1280000833, 2280001890, 2280001891, 2280001892, 2280001893, 2280008040, 2280008041, 8970429970, 8970429971, 8970429972
  • Description
    Voltage: 12
    kW: 2.2
    Mounting flange: 95.00
    Drive distance: 10.00
    Mounting hole 2 mm: 13.00
    Mounting hole 1 mm: 13.00
    Distance / back: 162.00
    Distance / front: 21.00
    Number / teeth: 9
    B+: M8
    Position / 50: 10
    Terminal 50: Plug
    Gear type: GR
    Distance in millimeters: 120.00
    Rotation: CW
    Total length in millimeters: 237.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113132, 2873k401, 128000-0830, 128000-0831, 128000-0832, 128000-0833, 228000-1890, 228000-1891, 228000-1892, 228000-1893, 228000-8040, 228000-8041, 1347064, 8970429970, 8970429971, 8970429972

    • Normalised article numbler
      bsx2640001, cst40131, drs0194, dsn2061, f032113132, f042000022, f042000025, f042000026, f042s00022, f042s00025, ga24890, les0350, lrs02067, s6399s, s8661, sj00288r, snd0331, str5011, str5011h, str70025, 8ea015642051, 2873k401, 8155, 17303, 18449, 22099nd, 220934, 220934a, 252114, 254041, 1347064, 3122813, 11040289, 91295369, 343006092, 1280000830, 1280000831, 1280000832, 1280000833, 2280001890, 2280001891, 2280001892, 2280001893, 2280008040, 2280008041, 8970429970, 8970429971, 8970429972
