Article no.: F032113148

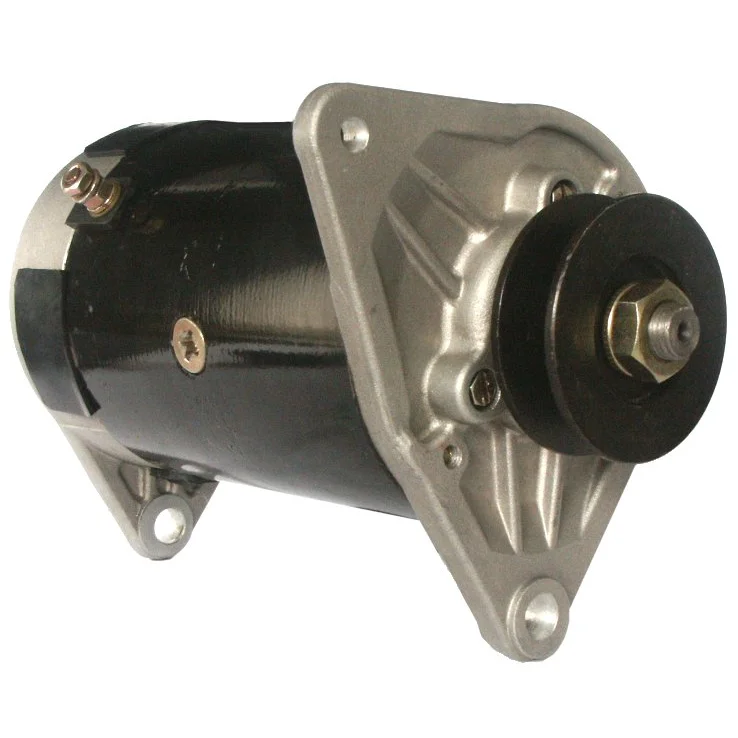

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 0.75, Amp: 23, Rotation: CW/CCW

Description

Voltage: 12
Amp: 23
kW: 0.75
Insulated return: No
Mounting bracket dist.: 158.00
Mounting hole diameter d1: 12.00
Mounting hole diameter d2: 8.80
Mounting hole diameter d3: 12.00
Outer diameter mm: 113.20
Length mm: 247.00
Fan: w/o
Pulley: w/
Pulley outer diameter mm: 66.00
Pulley distance: 36.00
Voltage regulator plug: w/o
Rotation: CW/CCW
Radius: 76.50
Radius 2: 77.50
Product info: BN
Info: Not for universal use.
Remarks: Voltage regulator: HC-CARGO 233625.

Files

  • Description
    Voltage: 12
    Amp: 23
    kW: 0.75
    Insulated return: No
    Mounting bracket dist.: 158.00
    Mounting hole diameter d1: 12.00
    Mounting hole diameter d2: 8.80
    Mounting hole diameter d3: 12.00
    Outer diameter mm: 113.20
    Length mm: 247.00
    Fan: w/o
    Pulley: w/
    Pulley outer diameter mm: 66.00
    Pulley distance: 36.00
    Voltage regulator plug: w/o
    Rotation: CW/CCW
    Radius: 76.50
    Radius 2: 77.50
    Product info: BN
    Info: Not for universal use.
    Remarks: Voltage regulator: HC-CARGO 233625.

    Files

  • Suitable for these vehicles
