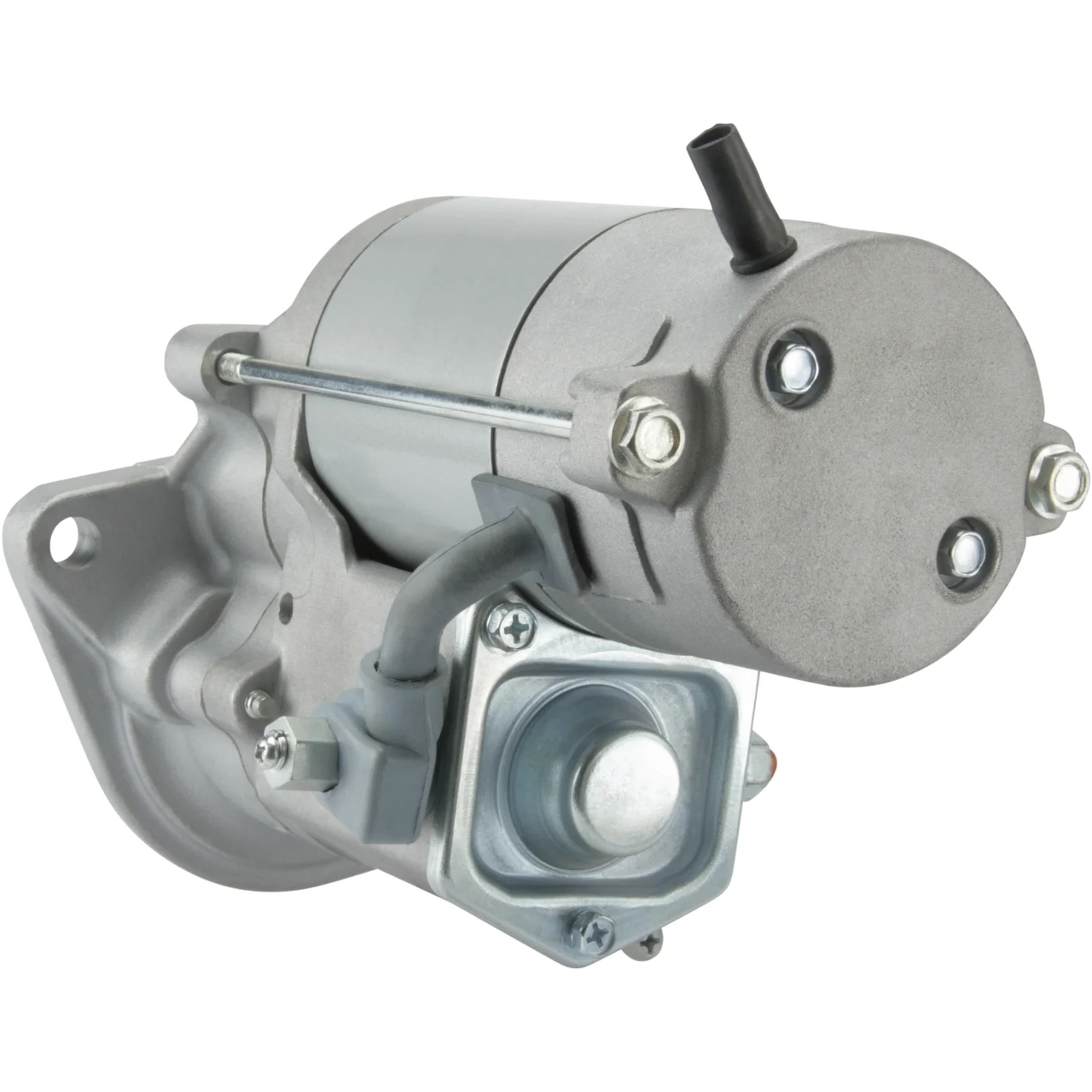

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113172

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 2.0
Mount. flange: 89.00
Drive dist.: 46.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 130.00
Dist./front: 57.00
No./teeth: 9
B+: M8
Position/50: 25
Terminal 50: M5
Gear type: GR
Dist. mm: 126.50
Rotation: CW
Total length mm: 249.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 10MT.
No./mount. holes: 2 (0)

Files

  • OEM
    F032113172, 3T8191, 7x1057, 128000-6870, 128000-6871, 228000-5860, 228000-5861, 228000-5862, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2200071-43

  • Normalised article numbler
    cst40148, drs0575, ds17262, dsn2123, f032113172, f042000035, f042s00035, lrs00191, lrs01775, lrs02389, s1194s, s6076, s7x1057, s8274, s8678, s9146, sdr0101, sn00156r, sn0084r, snd0187, str30040, str5022, ts1250, 3t8191, 7x1057, 4525n, 4776s, 4781s, 17622, 18198, 18198n, 18198r, 22047nd, 22203nd, 61103, 254061, 254819, 262033, 284074, 335867, 444055, 464055, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2135890, 3001023, 3136101, 8504304, 91014199, 91295136, 91295390, 220007143, 640020103, 640548102, 672118102, 692112092, 1280006870, 1280006871, 2280005860, 2280005861, 2280005862
  • Description
    Voltage: 12
    kW: 2.0
    Mount. flange: 89.00
    Drive dist.: 46.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 130.00
    Dist./front: 57.00
    No./teeth: 9
    B+: M8
    Position/50: 25
    Terminal 50: M5
    Gear type: GR
    Dist. mm: 126.50
    Rotation: CW
    Total length mm: 249.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 10MT.
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113172, 3T8191, 7x1057, 128000-6870, 128000-6871, 228000-5860, 228000-5861, 228000-5862, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2200071-43

    • Normalised article numbler
      cst40148, drs0575, ds17262, dsn2123, f032113172, f042000035, f042s00035, lrs00191, lrs01775, lrs02389, s1194s, s6076, s7x1057, s8274, s8678, s9146, sdr0101, sn00156r, sn0084r, snd0187, str30040, str5022, ts1250, 3t8191, 7x1057, 4525n, 4776s, 4781s, 17622, 18198, 18198n, 18198r, 22047nd, 22203nd, 61103, 254061, 254819, 262033, 284074, 335867, 444055, 464055, 655293, 1107335, 1108443, 1108493, 1109418, 1109423, 1383240, 2135890, 3001023, 3136101, 8504304, 91014199, 91295136, 91295390, 220007143, 640020103, 640548102, 672118102, 692112092, 1280006870, 1280006871, 2280005860, 2280005861, 2280005862
