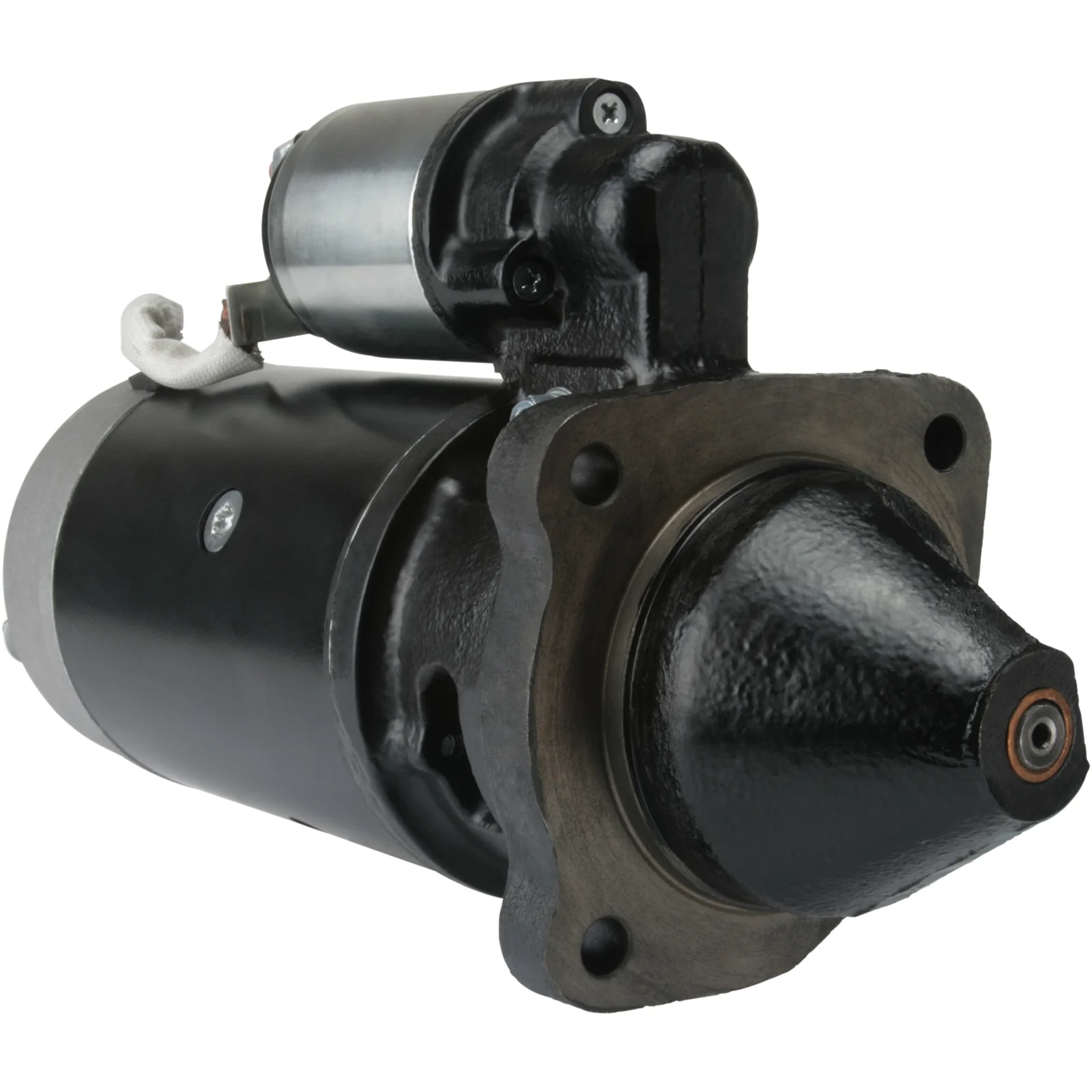

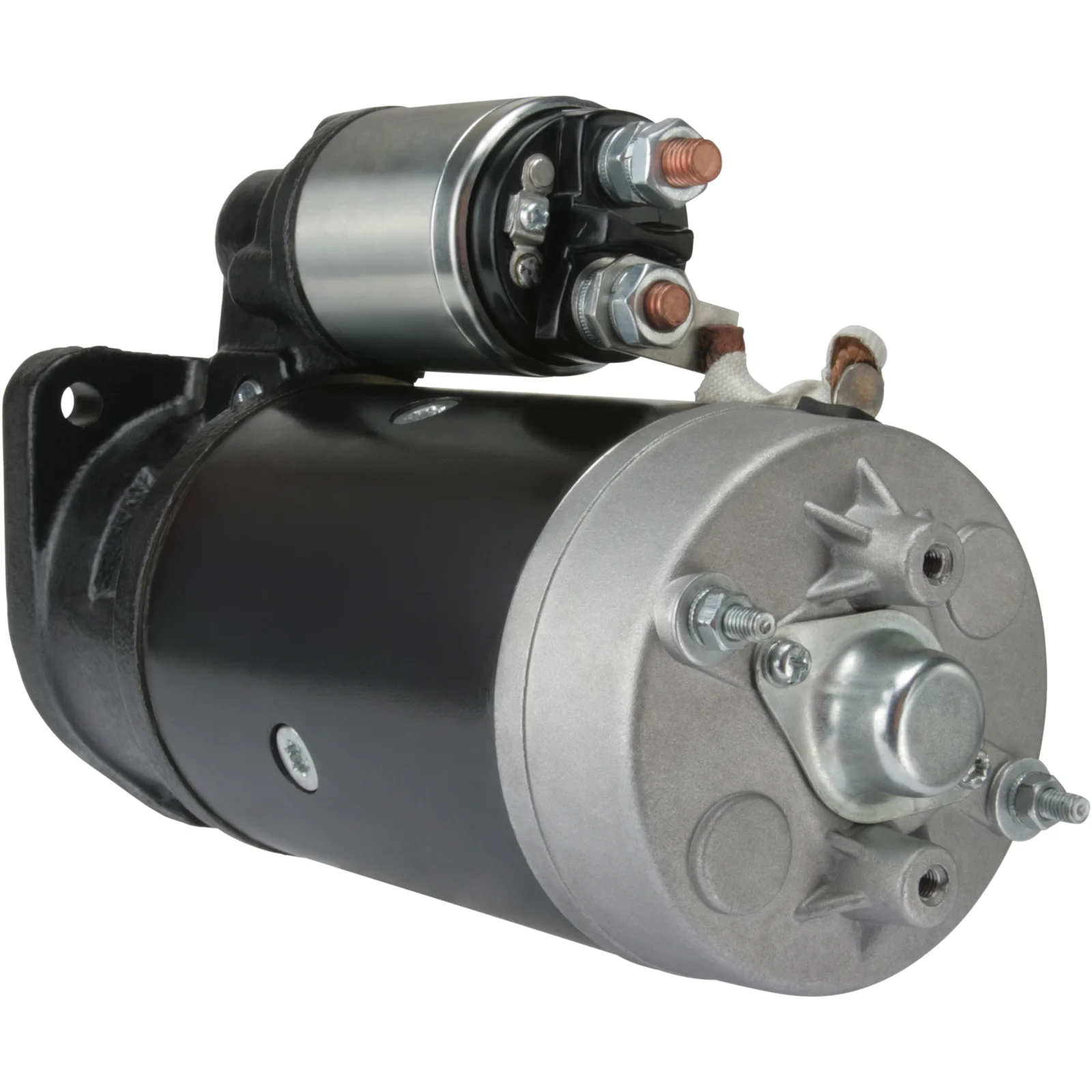

HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113465

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 21.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Back/Dist.: 266.00
Front/Dist.: 70.50
Number/teeth: 10
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 338.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number/mount. holes: 3 (0)

Files

  • OEM
    A5.00055-9361, azj3187, d11e104, d11e119, d11e119t, F032113465, ND53301B, 11.130.596, 50.26201-7078, 81.26201-9010, 12760, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785R, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684

  • Normalised article numbler
    a5000559361, azj3187, d11e104, d11e119, d11e119t, drs0960, f032113465, is0596, lrs00631, ms328, msr734, nd53301b, s0739s, s1127, sr924x, 8ea730177001, 1586, 6602n, 10607, 12760, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308a, 250362, 436091, 509123, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785r, 8810960, 11010960, 11130596, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 600006102, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684, 50262017078, 81262019010, 943252273010
  • Description
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 21.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Back/Dist.: 266.00
    Front/Dist.: 70.50
    Number/teeth: 10
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 338.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number/mount. holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      A5.00055-9361, azj3187, d11e104, d11e119, d11e119t, F032113465, ND53301B, 11.130.596, 50.26201-7078, 81.26201-9010, 12760, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785R, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684

    • Normalised article numbler
      a5000559361, azj3187, d11e104, d11e119, d11e119t, drs0960, f032113465, is0596, lrs00631, ms328, msr734, nd53301b, s0739s, s1127, sr924x, 8ea730177001, 1586, 6602n, 10607, 12760, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308a, 250362, 436091, 509123, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785r, 8810960, 11010960, 11130596, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 600006102, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684, 50262017078, 81262019010, 943252273010
