HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113467

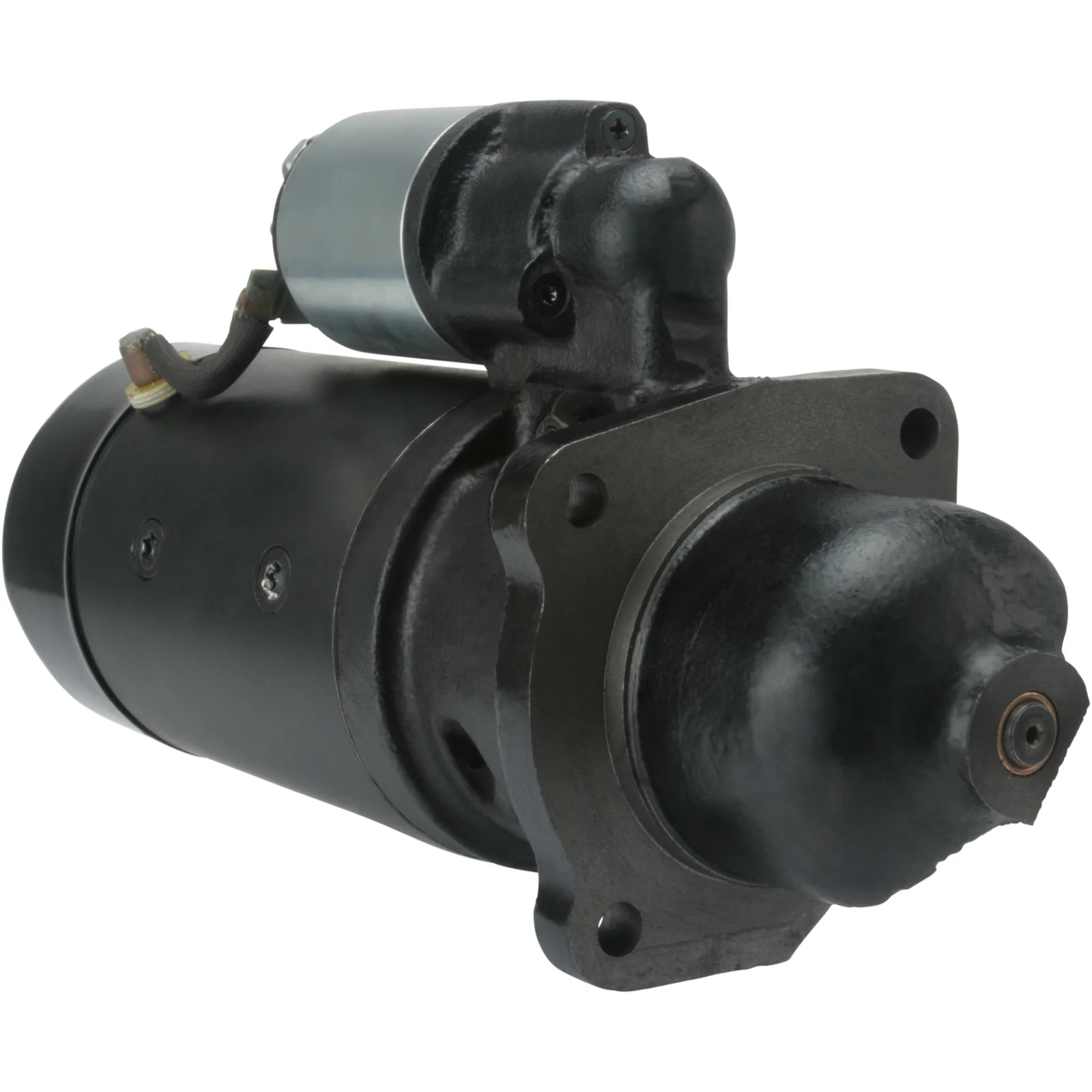

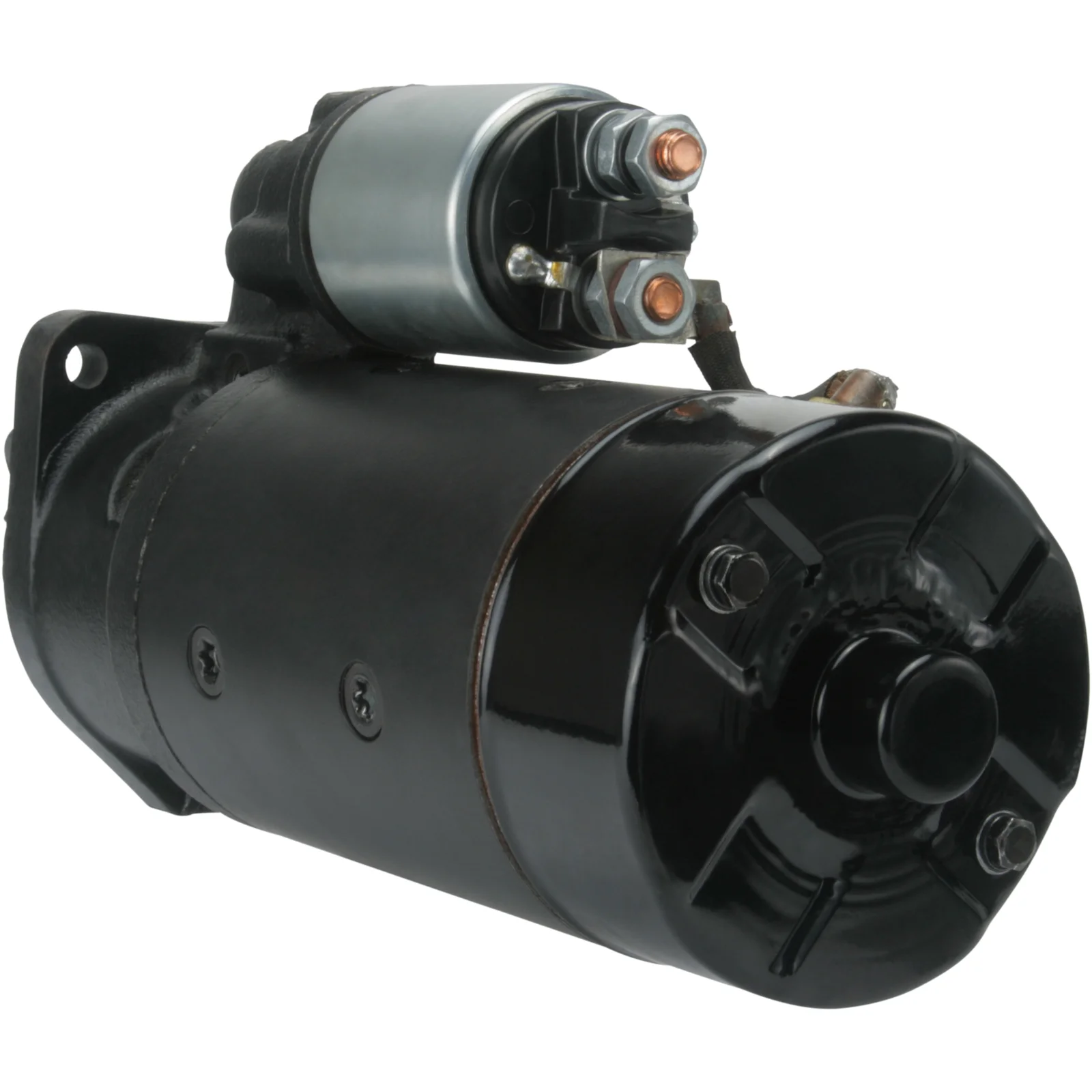

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.7, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 3.7
Mounting flange: 89.00
Drive distance: 28.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 278.00
Distance / front: 76.00
Number / teeth: 9
B+: M10
Position /50: 15
Terminal 50: M4
Gear type: DD
Distance 2: 90.00
Distance 3: 90.00
Distance mm: 127.00
Rotation: CW
Total length mm: 368.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    azj3196, cs398, F032113467, 11.130.619, 01163758, 1163758, 0001365004, 1516761R, 05710919, 42498131, 42522864, 943252216010

  • Normalised article numbler
    azj3196, cs398, cst10396, drs1180, f032113467, is0619, lrs00672, ms108, s9215letrika, str22120, 8ea726146001, 1551, 10398, 33368, 250220, 01163758, 1163758, 0001365004, 1516761r, 05710919, 8811180, 11011180, 11130619, 42498131, 42522864, 688006092, 943252216, 0986011180, 0986011187, 943252216010
  • Description
    Voltage: 12
    kW: 3.7
    Mounting flange: 89.00
    Drive distance: 28.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 278.00
    Distance / front: 76.00
    Number / teeth: 9
    B+: M10
    Position /50: 15
    Terminal 50: M4
    Gear type: DD
    Distance 2: 90.00
    Distance 3: 90.00
    Distance mm: 127.00
    Rotation: CW
    Total length mm: 368.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      azj3196, cs398, F032113467, 11.130.619, 01163758, 1163758, 0001365004, 1516761R, 05710919, 42498131, 42522864, 943252216010

    • Normalised article numbler
      azj3196, cs398, cst10396, drs1180, f032113467, is0619, lrs00672, ms108, s9215letrika, str22120, 8ea726146001, 1551, 10398, 33368, 250220, 01163758, 1163758, 0001365004, 1516761r, 05710919, 8811180, 11011180, 11130619, 42498131, 42522864, 688006092, 943252216, 0986011180, 0986011187, 943252216010
