HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113478

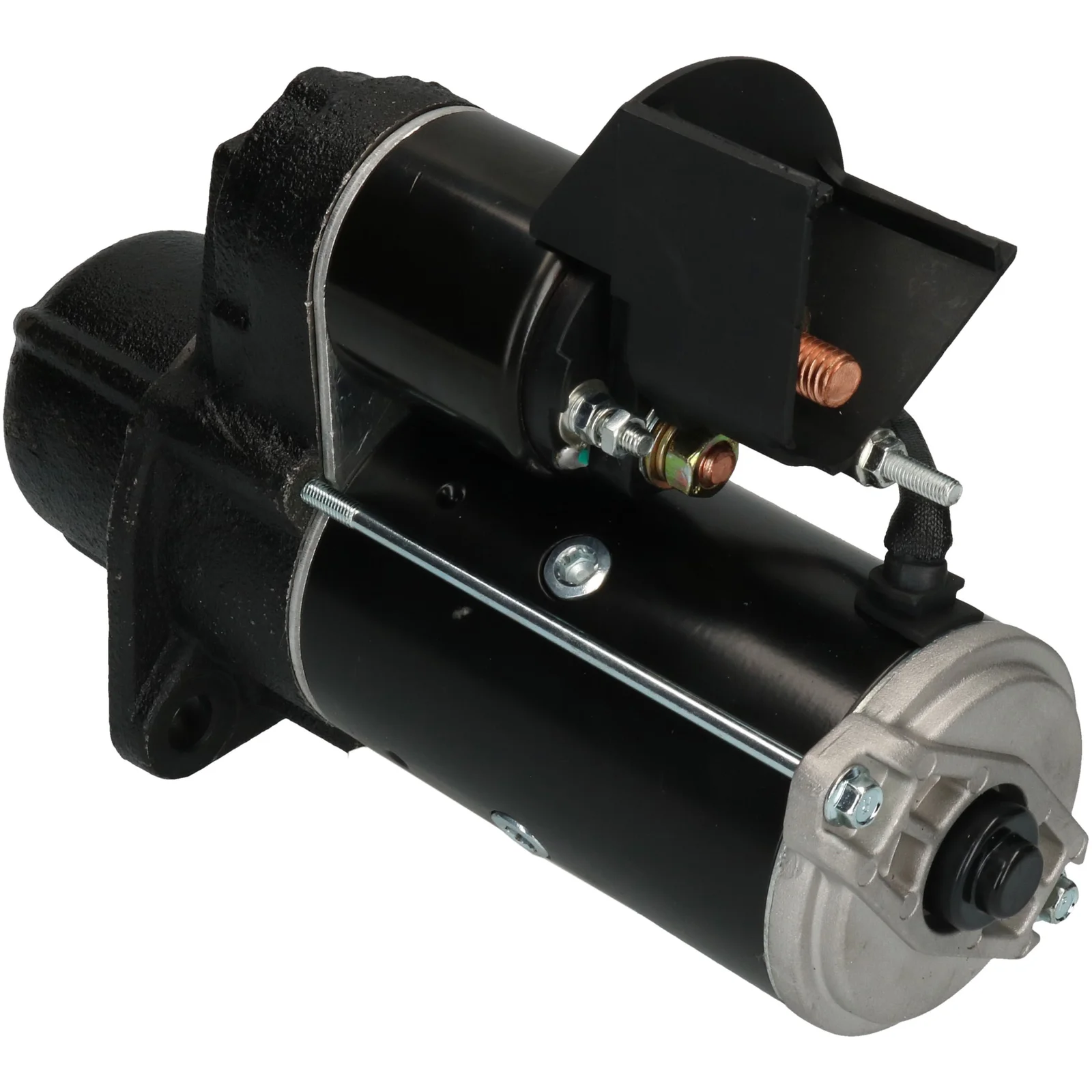

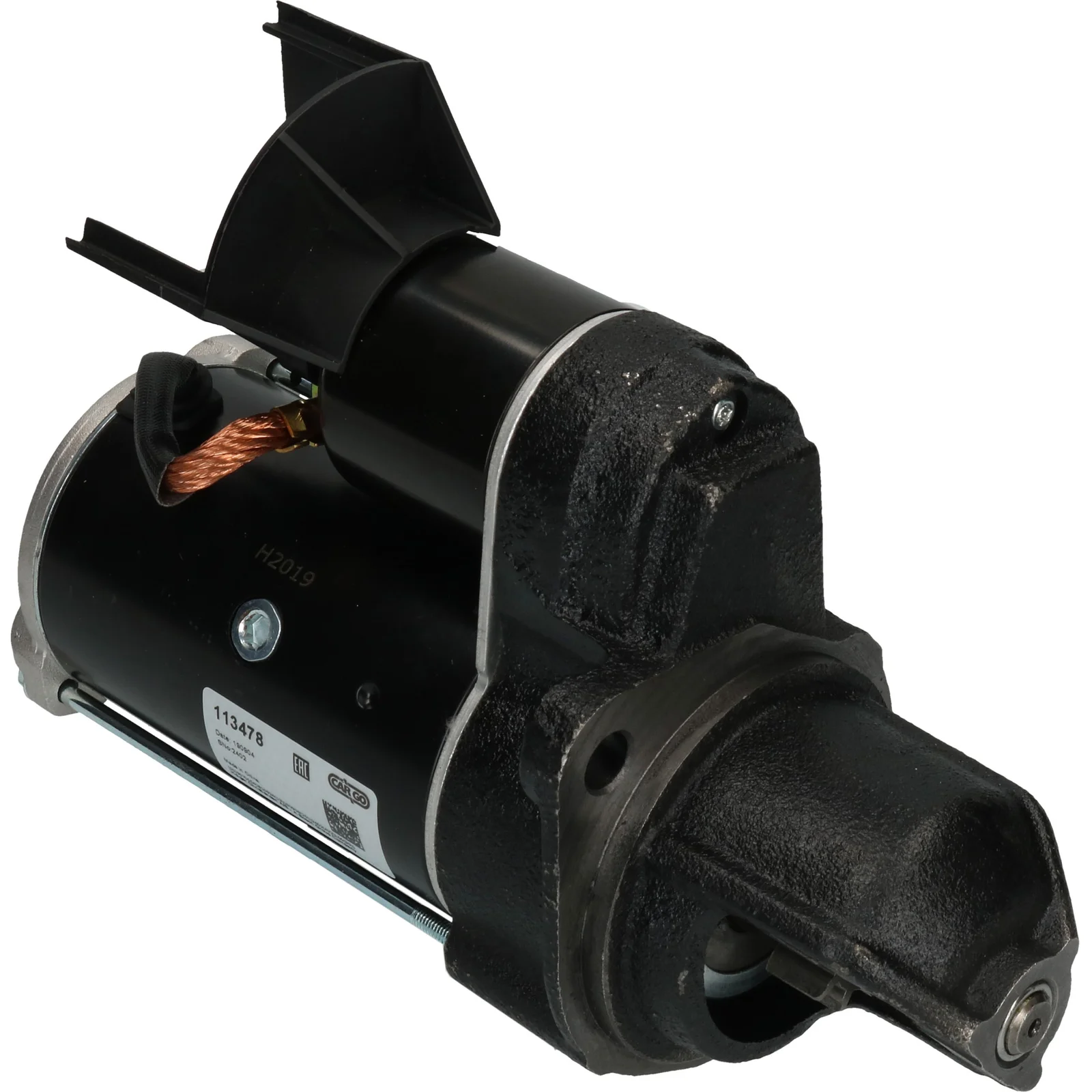

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 2.5, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 2.5
Mount. flange: 82.50
Drive dist.: 35.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 183.00
Dist./front: 71.00
No./teeth: 10
B+: M10
Position/B+: 60
Position/50: 45
Terminal 50: M5
Gear type: DD/GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 254.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: GR Type.
No./mount. holes: 2 (0)

Files

  • OEM
    aze4603, aze4620, d7r14, F032113478, RE500819, re501157, RE501347, RE501680, RE501689, re501693, RE501854, re502156, RE502196, re505746, re516157, re60641, RE63010, re684701, re71505, 11.131.063, 11.131.221, 11.131.384, 187031, 1109208, 0001223502, 0001230005, 0001367081, 26024033a

  • Normalised article numbler
    aze4603, aze4620, cst10229, cst10360, cst15206, cst40246, d7r14, drs0152, drs0303, drt2520, f032113478, ms419, re500819, re501157, re501347, re501680, re501689, re501693, re501854, re502156, re502196, re505746, re516157, re60641, re63010, re684701, re71505, s0298, s0299, s0534, s3071, s6532, s9325s, str50264, 17086, 17086n, 17362n, 18359n, 22294va, 105681, 187031, 220613, 220613a, 220820, 220820a, 254364, 254465, 455735, 1109208, 0001223502, 0001230005, 0001367081, 8213654, 11022520, 11090154, 11090176, 11131063, 11131221, 11131384, 26024033a, 42017880, 91203530, 630537102, 686018102, 0986021187, 0986022520
  • Description
    Voltage: 12
    kW: 2.5
    Mount. flange: 82.50
    Drive dist.: 35.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 183.00
    Dist./front: 71.00
    No./teeth: 10
    B+: M10
    Position/B+: 60
    Position/50: 45
    Terminal 50: M5
    Gear type: DD/GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 254.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: GR Type.
    No./mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze4603, aze4620, d7r14, F032113478, RE500819, re501157, RE501347, RE501680, RE501689, re501693, RE501854, re502156, RE502196, re505746, re516157, re60641, RE63010, re684701, re71505, 11.131.063, 11.131.221, 11.131.384, 187031, 1109208, 0001223502, 0001230005, 0001367081, 26024033a

    • Normalised article numbler
      aze4603, aze4620, cst10229, cst10360, cst15206, cst40246, d7r14, drs0152, drs0303, drt2520, f032113478, ms419, re500819, re501157, re501347, re501680, re501689, re501693, re501854, re502156, re502196, re505746, re516157, re60641, re63010, re684701, re71505, s0298, s0299, s0534, s3071, s6532, s9325s, str50264, 17086, 17086n, 17362n, 18359n, 22294va, 105681, 187031, 220613, 220613a, 220820, 220820a, 254364, 254465, 455735, 1109208, 0001223502, 0001230005, 0001367081, 8213654, 11022520, 11090154, 11090176, 11131063, 11131221, 11131384, 26024033a, 42017880, 91203530, 630537102, 686018102, 0986021187, 0986022520
