Article no.: F032113480

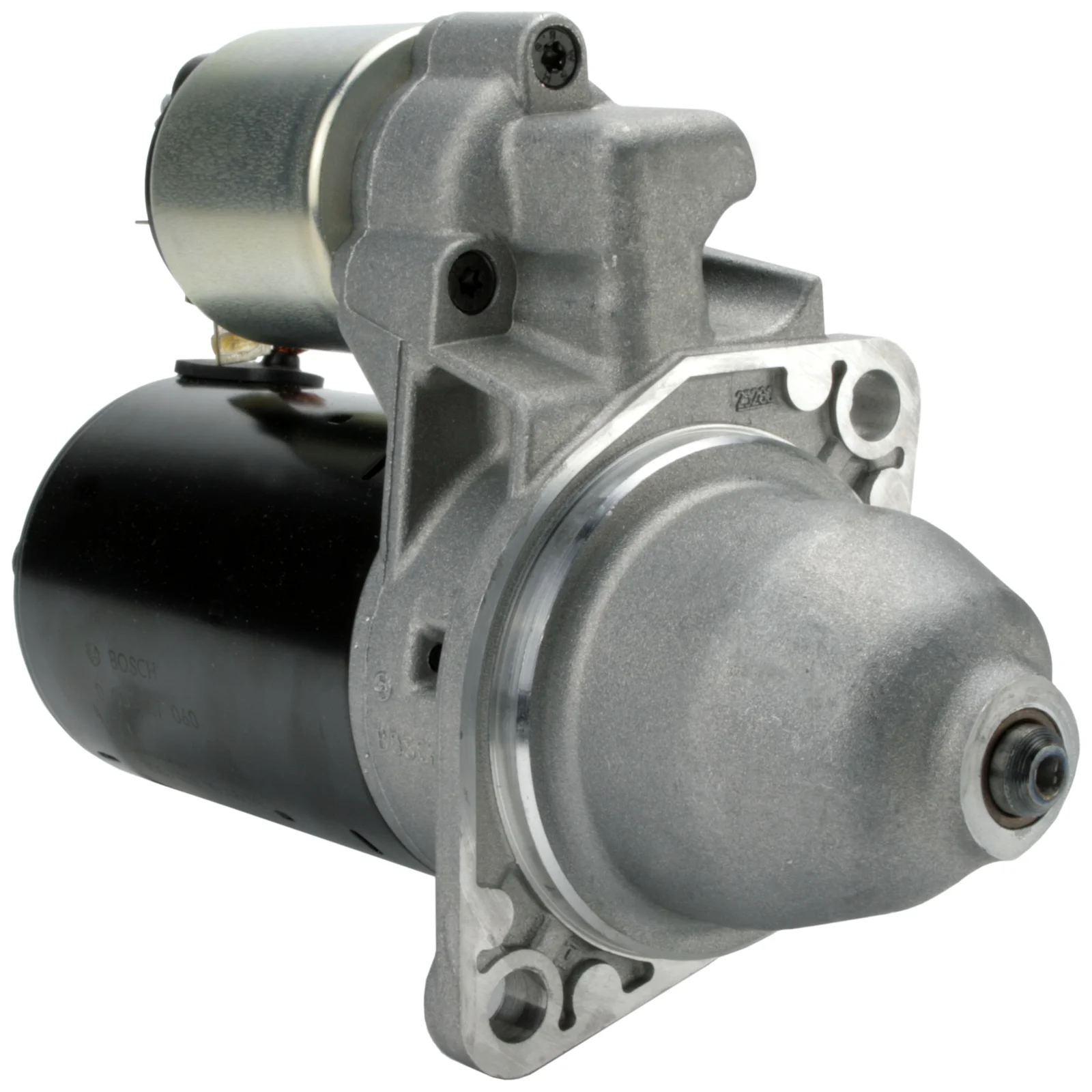

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.2, No./teeth: 9, Rotation: CW

Description

Voltage: 12
kW: 1.2
Mount. flange: 76.20
Drive distance: 28.00
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Distance / back: 142.00
Distance / front: 65.50
No. / teeth: 9
B+: M8
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 220.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No. / mount. holes: 2 (0)

Files

  • OEM
    aze2642, F032113480, 11.131.233, 0001107060

  • Normalised article numbler
    aze2642, cst10180, f032113480, is1079, ms413, s0530, 220909, 220909a, 254195, 0001107060, 11131233
  • Description
    Voltage: 12
    kW: 1.2
    Mount. flange: 76.20
    Drive distance: 28.00
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Distance / back: 142.00
    Distance / front: 65.50
    No. / teeth: 9
    B+: M8
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 220.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No. / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      aze2642, F032113480, 11.131.233, 0001107060

    • Normalised article numbler
      aze2642, cst10180, f032113480, is1079, ms413, s0530, 220909, 220909a, 254195, 0001107060, 11131233
