Article no.: F032113534

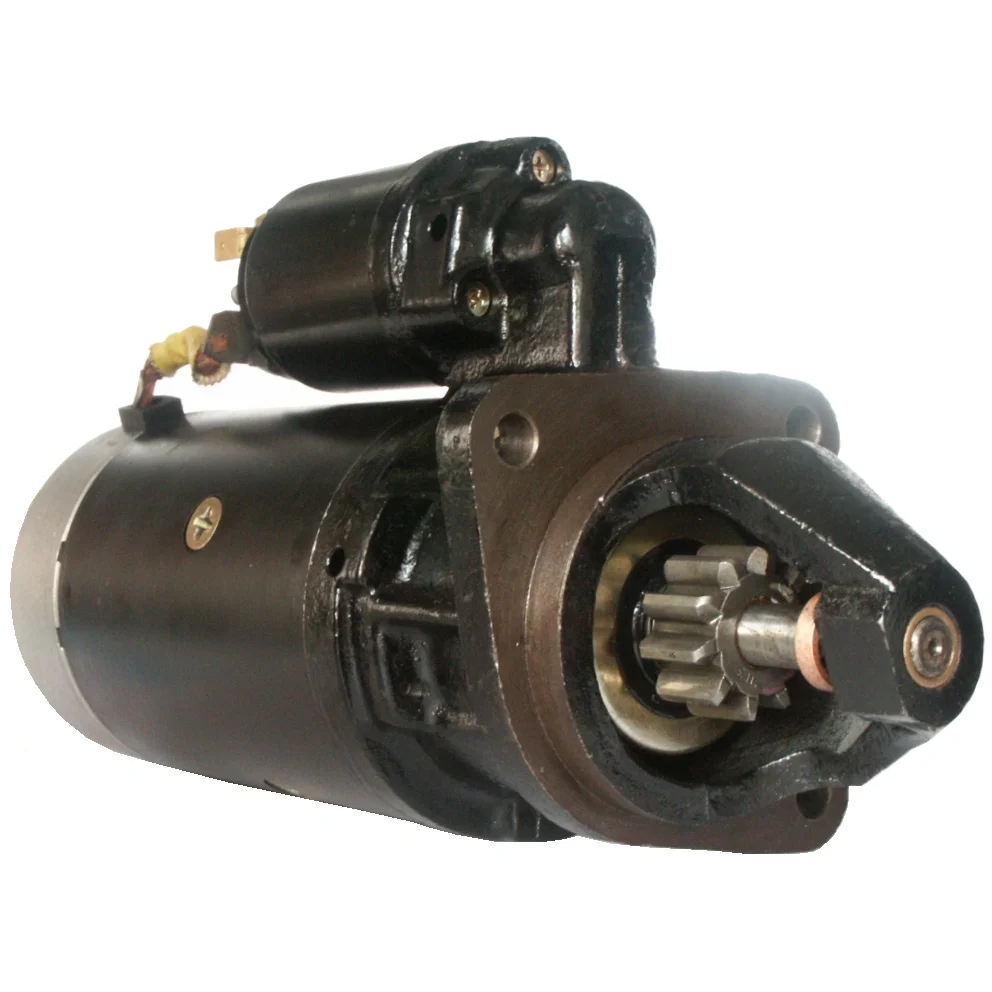

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 3.0
Mounting flange: 89.00
Drive distance: 27.00
Mounting hole 3 mm: 11.00
Mounting hole 2 mm: 11.00
Mounting hole 1 mm: 11.00
Distance / back: 265.50
Distance / front: 77.00
Number / teeth: 10
B+: M8
Position / 50: 15
Terminal 50: M4-6.30
Gear type: DD
Distance 2: 126.00
Distance 3: 89.00
Distance mm: 89.00
Rotation: CW
Total length mm: 342.00
Clutch type: Dry
Drive type: Steel
Production info: BN
Waterproof: No
Oil sealed: No
Number / mounting holes: 3 (0)

Files

  • OEM
    F032113534, 0001367069, 3581576M02A

  • Normalised article numbler
    f032113534, s0600, s4013, sbo0075, 8ea015642651, 18387, 18387n, 22298bo, 220006, 220006a, 250201, 0001367069, 3581576m02a, 600009102
  • Description
    Voltage: 12
    kW: 3.0
    Mounting flange: 89.00
    Drive distance: 27.00
    Mounting hole 3 mm: 11.00
    Mounting hole 2 mm: 11.00
    Mounting hole 1 mm: 11.00
    Distance / back: 265.50
    Distance / front: 77.00
    Number / teeth: 10
    B+: M8
    Position / 50: 15
    Terminal 50: M4-6.30
    Gear type: DD
    Distance 2: 126.00
    Distance 3: 89.00
    Distance mm: 89.00
    Rotation: CW
    Total length mm: 342.00
    Clutch type: Dry
    Drive type: Steel
    Production info: BN
    Waterproof: No
    Oil sealed: No
    Number / mounting holes: 3 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113534, 0001367069, 3581576M02A

    • Normalised article numbler
      f032113534, s0600, s4013, sbo0075, 8ea015642651, 18387, 18387n, 22298bo, 220006, 220006a, 250201, 0001367069, 3581576m02a, 600009102
