Article no.: F032113601

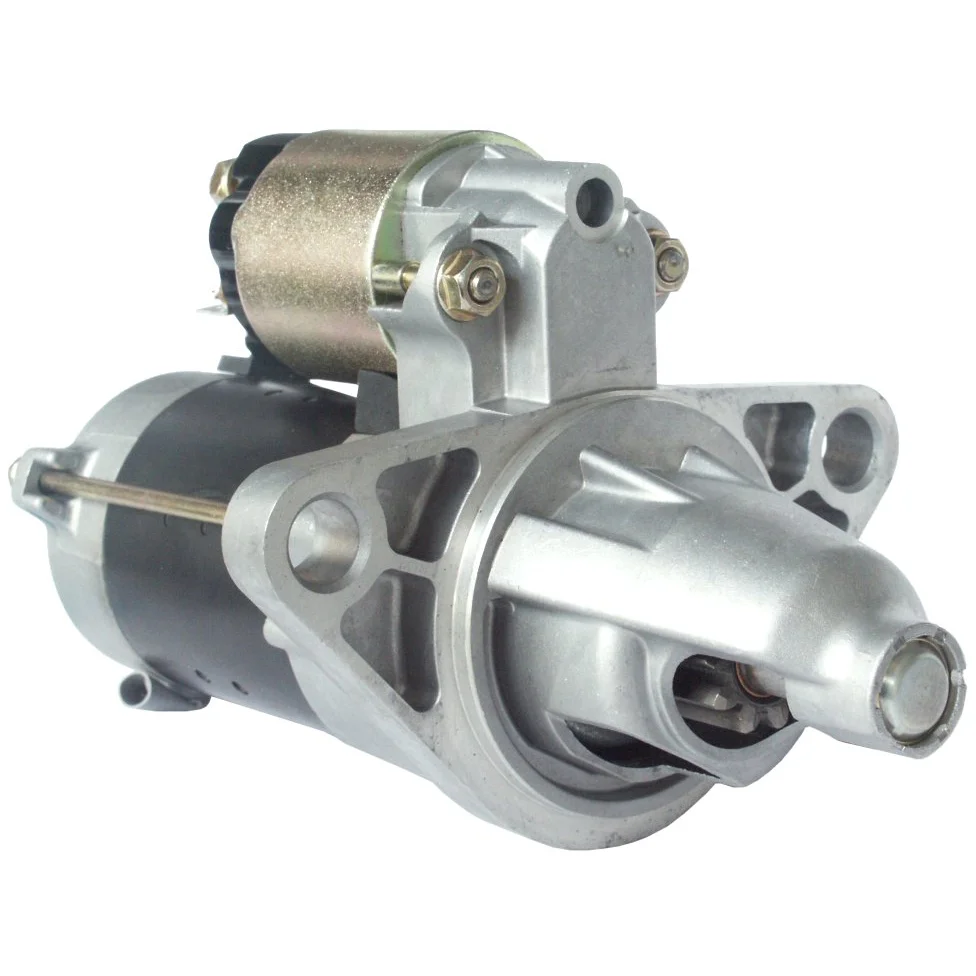

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.0, No./teeth: 10, Rotation: CCW

Description

Voltage: 12
kW: 1.0
Mount. flange: 75.00
Drive distance: 40.00
Mount. hole 2 mm: 13.30
Mount. hole 1 mm: 13.30
Distance / back: 152.50
Distance / front: 73.00
Number / teeth: 10
B+: M8
Position / B+: 60
Position / 50: 15
Terminal 50: 6.30
Gear type: GR
Distance in millimeters: 120.50
Rotation: CCW
Total length in millimeters: 227.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number / mount. holes: 2 (0)

Files

  • OEM
    F032113601, js1350, NAD101090, nad101420, NAD101420E, NAD101520, 1986S01087, 228000-6120, 228000-6121, 228000-6122

  • Normalised article numbler
    cst40198, dendsn602, drs3677, dsn602, f032113601, f042000210, f042s00210, js1350, nad101090, nad101420, nad101420e, nad101520, s0871s, s6107denso, str30036, str8272, 8ea012140451, 1986s01087, 31179n, 31179r, 105199, 201350, 220600, 220600a, 252481, 11090066, 314022102, 0986029070, 2280006120, 2280006121, 2280006122, 944280551840
  • Description
    Voltage: 12
    kW: 1.0
    Mount. flange: 75.00
    Drive distance: 40.00
    Mount. hole 2 mm: 13.30
    Mount. hole 1 mm: 13.30
    Distance / back: 152.50
    Distance / front: 73.00
    Number / teeth: 10
    B+: M8
    Position / B+: 60
    Position / 50: 15
    Terminal 50: 6.30
    Gear type: GR
    Distance in millimeters: 120.50
    Rotation: CCW
    Total length in millimeters: 227.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number / mount. holes: 2 (0)

    Files

  • Suitable for these vehicles

    • OEM
      F032113601, js1350, NAD101090, nad101420, NAD101420E, NAD101520, 1986S01087, 228000-6120, 228000-6121, 228000-6122

    • Normalised article numbler
      cst40198, dendsn602, drs3677, dsn602, f032113601, f042000210, f042s00210, js1350, nad101090, nad101420, nad101420e, nad101520, s0871s, s6107denso, str30036, str8272, 8ea012140451, 1986s01087, 31179n, 31179r, 105199, 201350, 220600, 220600a, 252481, 11090066, 314022102, 0986029070, 2280006120, 2280006121, 2280006122, 944280551840
