HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113618

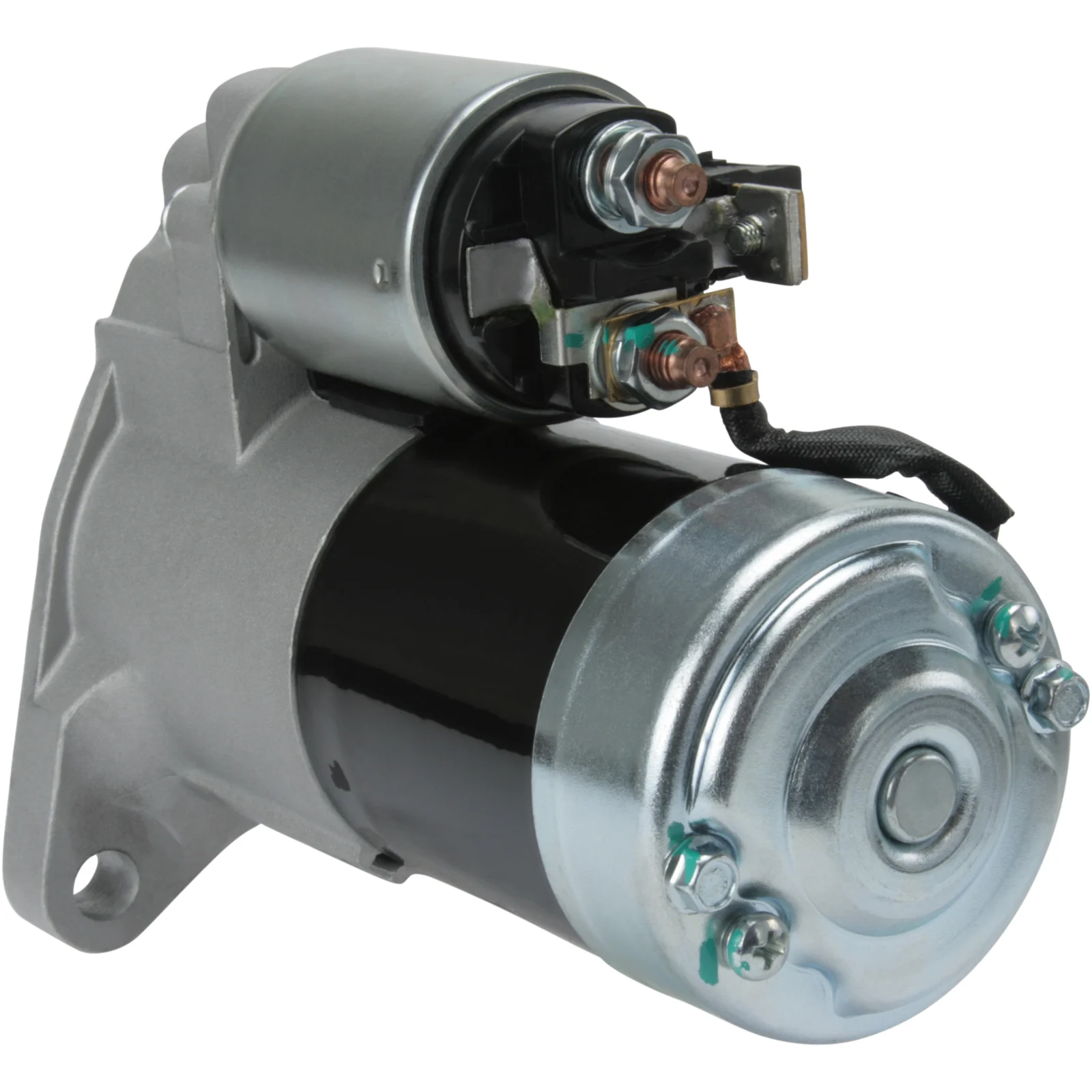

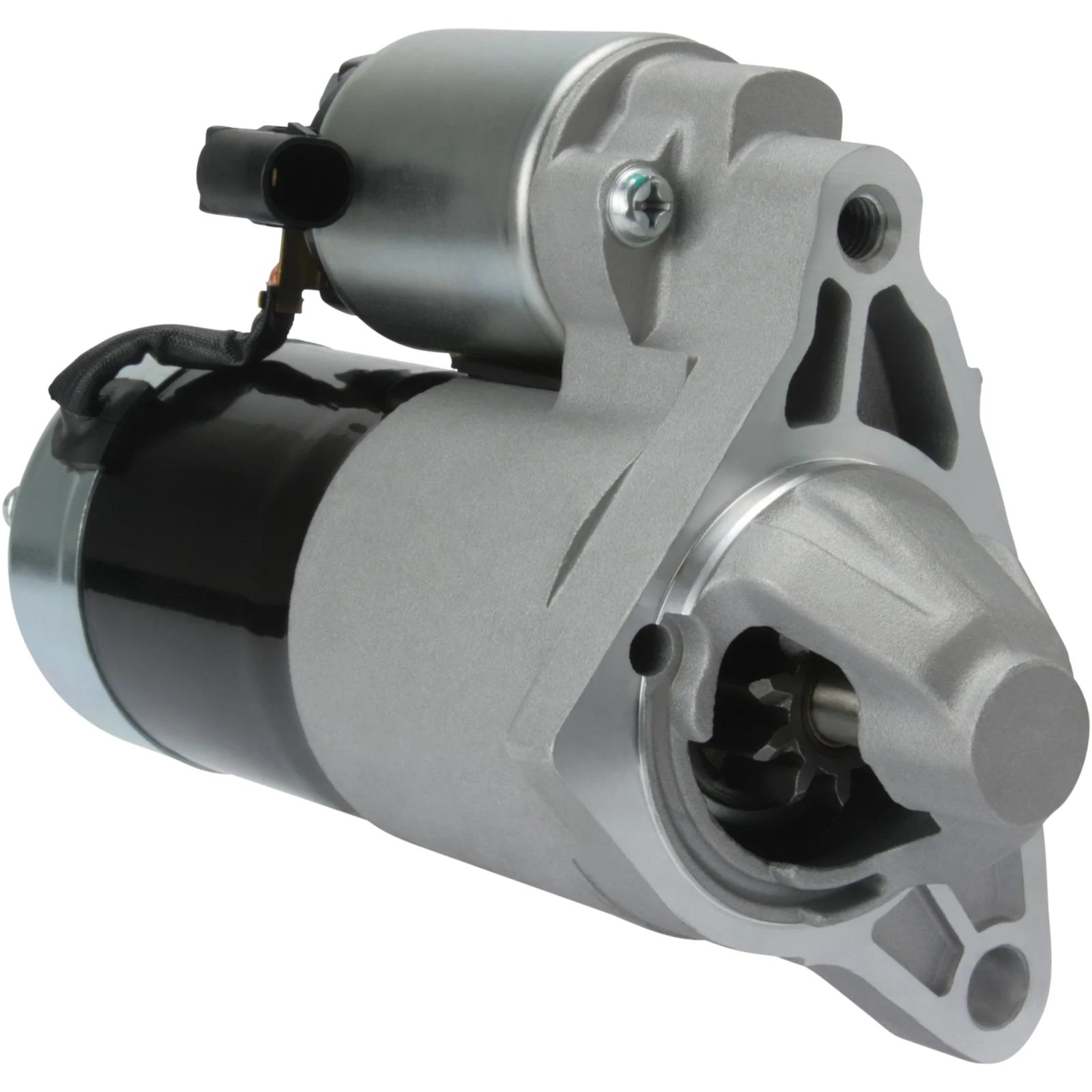

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.6
Mounting flange: 65.00
Drive distance: 6.00
Mounting hole 2 mm: 12.00
Distance/behind: 170.00
Distance/in front: 41.50
Number/teeth: 10
B+: M8
Position/50: 15
Terminal 50: Plug
Gear type: GR
Distance in mm: 117.50
Rotation: CW
Total length mm: 215.00
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (1)

Files

  • OEM
    F032113618, M000T91181, M000T91181ZC, M000T91182, M000T91182ZC, M001T84981, M001T84981ZC, M0T91181, m0t91181zc, m0t91182, m0t91182zc, M1T84981, m1t84981zc, 6864, 56041207, 56041207ab, 56041207ac, 56041207ad

  • Normalised article numbler
    cst35165, drs0218, drs1094, f032113618, f042001079, f042s01079, lrs01560, m000t91181, m000t91181zc, m000t91182, m000t91182zc, m001t84981, m001t84981zc, m0t91181, m0t91181zc, m0t91182, m0t91182zc, m1t84981, m1t84981zc, s5127, s8765, sc0089r, smt0107, sr6423x, str3093, 3660, 6864, 17405, 17754, 17754n, 17754r, 17866, 17866n, 22003mi, 253057, 254163, 8080351, 11040762, 56041207, 56041207ab, 56041207ac, 56041207ad
  • Description
    Voltage: 12
    kW: 1.6
    Mounting flange: 65.00
    Drive distance: 6.00
    Mounting hole 2 mm: 12.00
    Distance/behind: 170.00
    Distance/in front: 41.50
    Number/teeth: 10
    B+: M8
    Position/50: 15
    Terminal 50: Plug
    Gear type: GR
    Distance in mm: 117.50
    Rotation: CW
    Total length mm: 215.00
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (1)

    Files

  • Suitable for these vehicles

    • OEM
      F032113618, M000T91181, M000T91181ZC, M000T91182, M000T91182ZC, M001T84981, M001T84981ZC, M0T91181, m0t91181zc, m0t91182, m0t91182zc, M1T84981, m1t84981zc, 6864, 56041207, 56041207ab, 56041207ac, 56041207ad

    • Normalised article numbler
      cst35165, drs0218, drs1094, f032113618, f042001079, f042s01079, lrs01560, m000t91181, m000t91181zc, m000t91182, m000t91182zc, m001t84981, m001t84981zc, m0t91181, m0t91181zc, m0t91182, m0t91182zc, m1t84981, m1t84981zc, s5127, s8765, sc0089r, smt0107, sr6423x, str3093, 3660, 6864, 17405, 17754, 17754n, 17754r, 17866, 17866n, 22003mi, 253057, 254163, 8080351, 11040762, 56041207, 56041207ab, 56041207ac, 56041207ad
