HC-Cargo Starter motor
HC-Cargo Starter motor
Article no.: F032113642

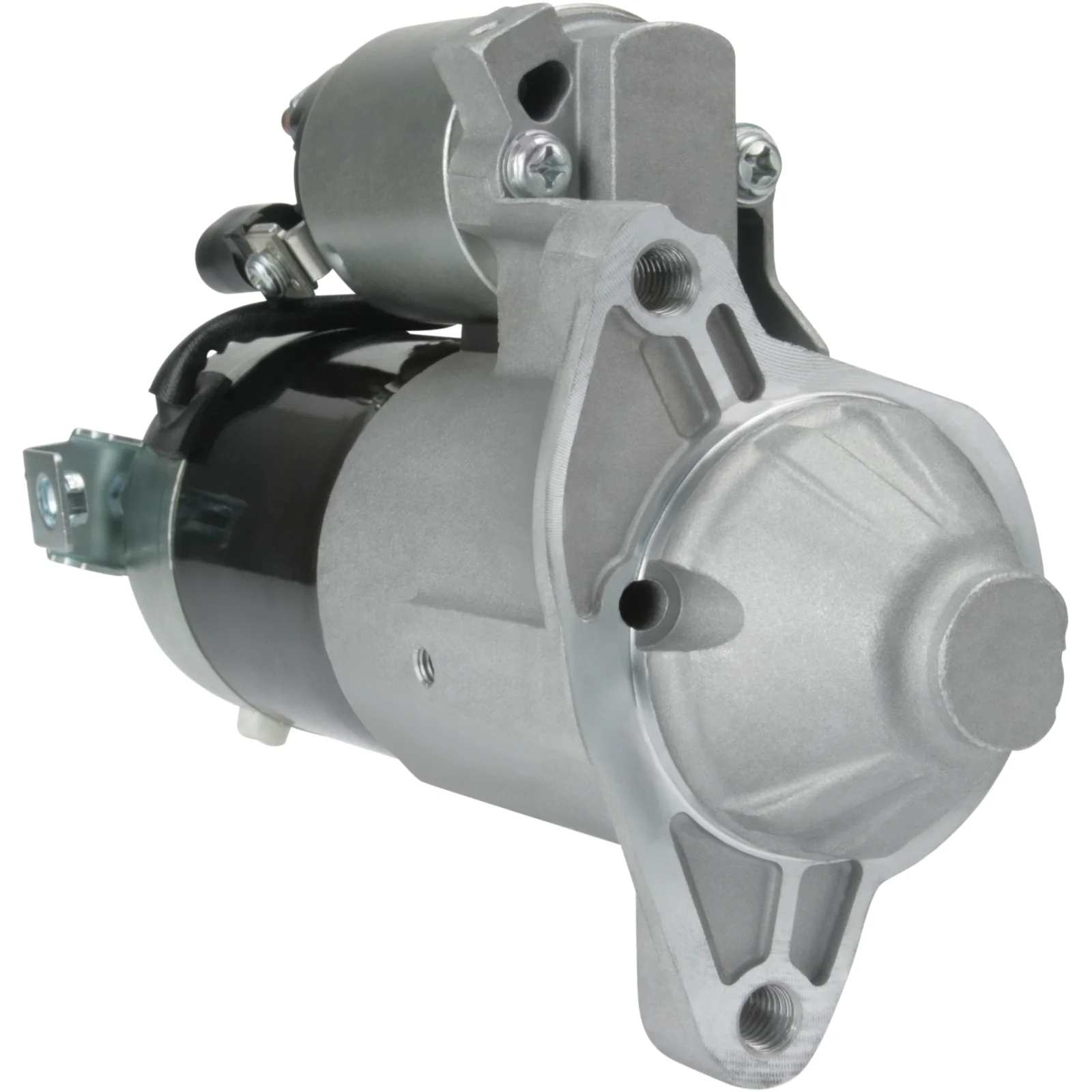

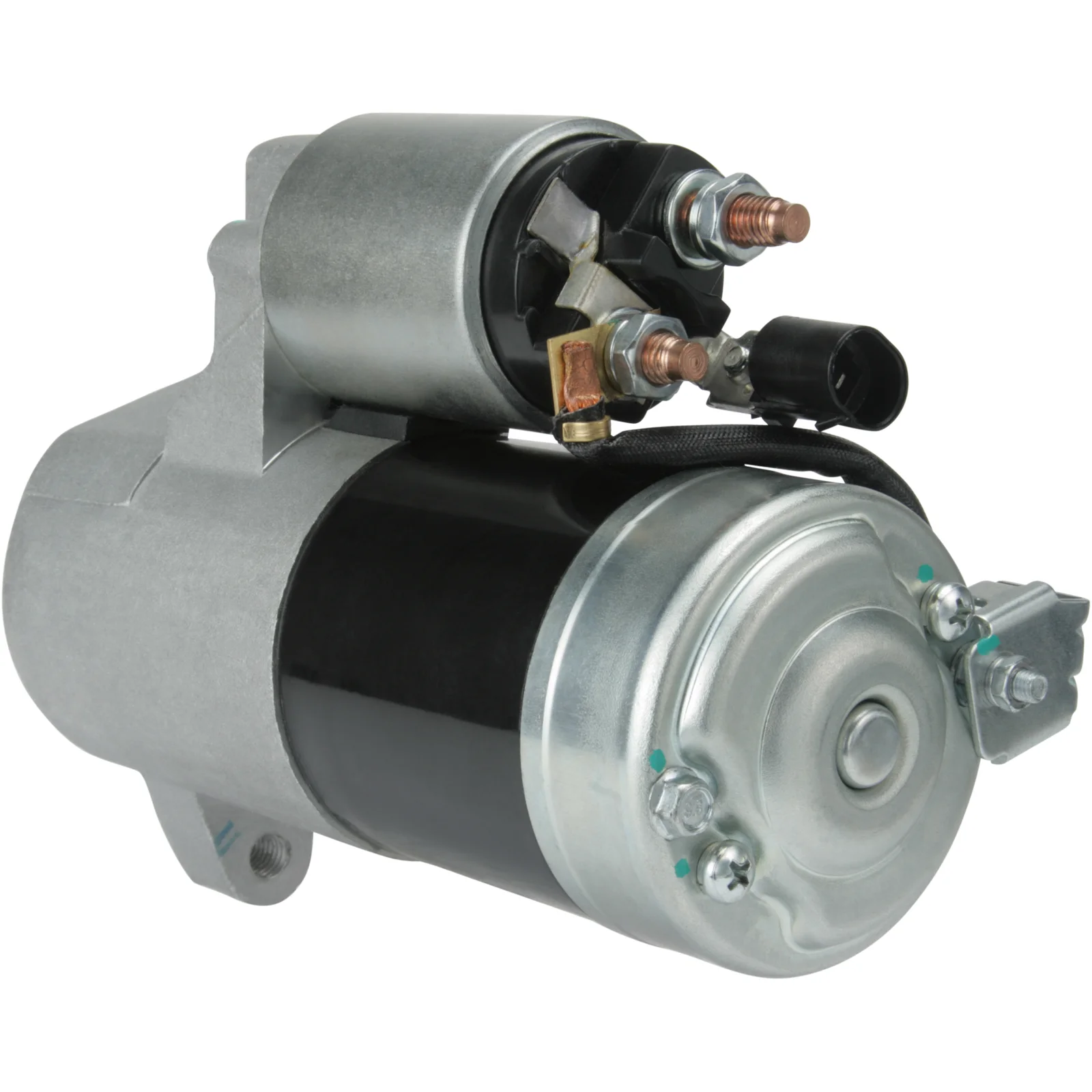

HC-Cargo Starter motor

Technical info:

Voltage: 12, kW: 1.6, No./teeth: 10, Rotation: CW

Description

Voltage: 12
kW: 1.6
Mount. flange: 65.00
Drive distance: 5.50
Mount. hole 2 mm: M10
Mount. hole 1 mm: M10
Distance/back: 182.50
Distance/front: 42.00
Number/teeth: 10
B+: M8
Position/B+: 5
Thread length mm: 8.00
Position/50: 20
Terminal 50: Plug
Gear type: DD/GR
Distance mm: 105.50
Rotation: CW
Total length mm: 228.50
Clutch type: Wet
Drive type: Steel
Product info: BN
Waterproof: No
Oil sealed: No
Number/mounting holes: 2 (2)

Files

  • OEM
    F032113642, M001T86782ZC, M001T86883ZC, M001T86884ZC, M1T86782, m1t86782zc, m1t86883zc, m1t86884zc, 6942, 56041136ab, 56041436AA, 56041436AB, 56041436ac, 56041641ac, 56041641ad

  • Normalised article numbler
    cst35232, cst35338, drs0756, drs0763, f032113642, f042001085, f042s01085, m001t86782zc, m001t86883zc, m001t86884zc, m1t86782, m1t86782zc, m1t86883zc, m1t86884zc, s5054, s5134, s80042, sc0097r, str3119, 6942, 17839, 17839n, 17877n, 17877r, 17882, 17882n, 17882r, 22342mi, 107332, 254352, 255155, 255243, 446835, 11040943, 56041136ab, 56041436aa, 56041436ab, 56041436ac, 56041641ac, 56041641ad, 670028102
  • Description
    Voltage: 12
    kW: 1.6
    Mount. flange: 65.00
    Drive distance: 5.50
    Mount. hole 2 mm: M10
    Mount. hole 1 mm: M10
    Distance/back: 182.50
    Distance/front: 42.00
    Number/teeth: 10
    B+: M8
    Position/B+: 5
    Thread length mm: 8.00
    Position/50: 20
    Terminal 50: Plug
    Gear type: DD/GR
    Distance mm: 105.50
    Rotation: CW
    Total length mm: 228.50
    Clutch type: Wet
    Drive type: Steel
    Product info: BN
    Waterproof: No
    Oil sealed: No
    Number/mounting holes: 2 (2)

    Files

  • Suitable for these vehicles

    • OEM
      F032113642, M001T86782ZC, M001T86883ZC, M001T86884ZC, M1T86782, m1t86782zc, m1t86883zc, m1t86884zc, 6942, 56041136ab, 56041436AA, 56041436AB, 56041436ac, 56041641ac, 56041641ad

    • Normalised article numbler
      cst35232, cst35338, drs0756, drs0763, f032113642, f042001085, f042s01085, m001t86782zc, m001t86883zc, m001t86884zc, m1t86782, m1t86782zc, m1t86883zc, m1t86884zc, s5054, s5134, s80042, sc0097r, str3119, 6942, 17839, 17839n, 17877n, 17877r, 17882, 17882n, 17882r, 22342mi, 107332, 254352, 255155, 255243, 446835, 11040943, 56041136ab, 56041436aa, 56041436ab, 56041436ac, 56041641ac, 56041641ad, 670028102
